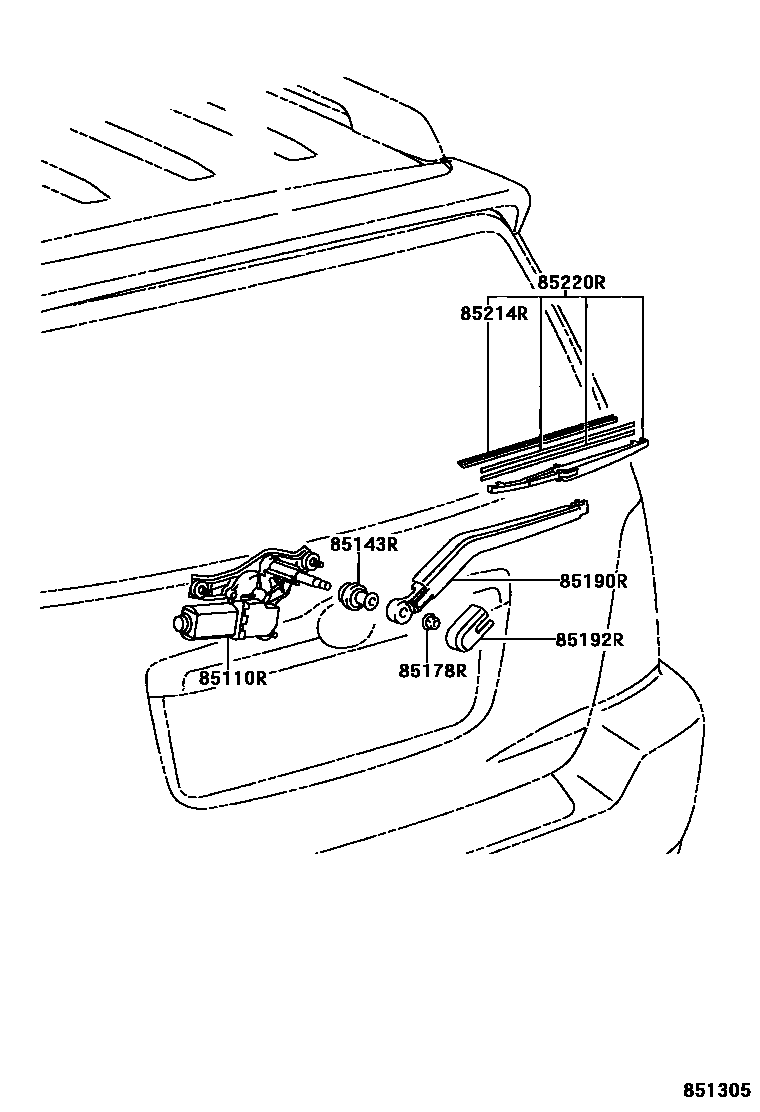

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-48020iMHU2#200503

85143RGROMMET, REAR WIPER MOTOR

main85143-48010iMHU2#200503

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iMHU2#200503

85190RARM ASSY, REAR WIPER

main85241-48080iMHU2#200503

85192RCOVER, REAR WIPER ARM

main85292-35010iMHU2#200503

85214RRUBBER, REAR WIPER

main85214-31010iMHU2#200503

85220RBLADE ASSY, REAR WIPER

main85242-48020iMHU2#200503

7 parts on this diagram · 1 diagram in section
