WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-48070iMHU2#200503

85160LINK ASSY, WINDSHIELD WIPER

main85150-48060iMHU2#200503

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-10223×2iMHU2#200503

85192COVER, WINDSHIELD WIPER ARM

main85292-13010×2iMHU2#200503

85211BARM, FRONT WIPER, RH

main85211-48050iMHU2#200503

85212ABLADE, FR WIPER, RH

main85212-53050iMHU2#200503-200605

main85212-53051iMHU2#200606

85214ARUBBER, WIPER, RH

main85214-53040iMHU2#200503-200605

main85214-53041iMHU2#200606

85214BRUBBER, WIPER, LH

main85214-48010iMHU2#200503

85221BARM, FRONT WIPER, LH

main85221-48050iMHU2#200503

85222ABLADE, FR WIPER, LH

main85222-48040iMHU2#200503

9011906814

main90119-06814

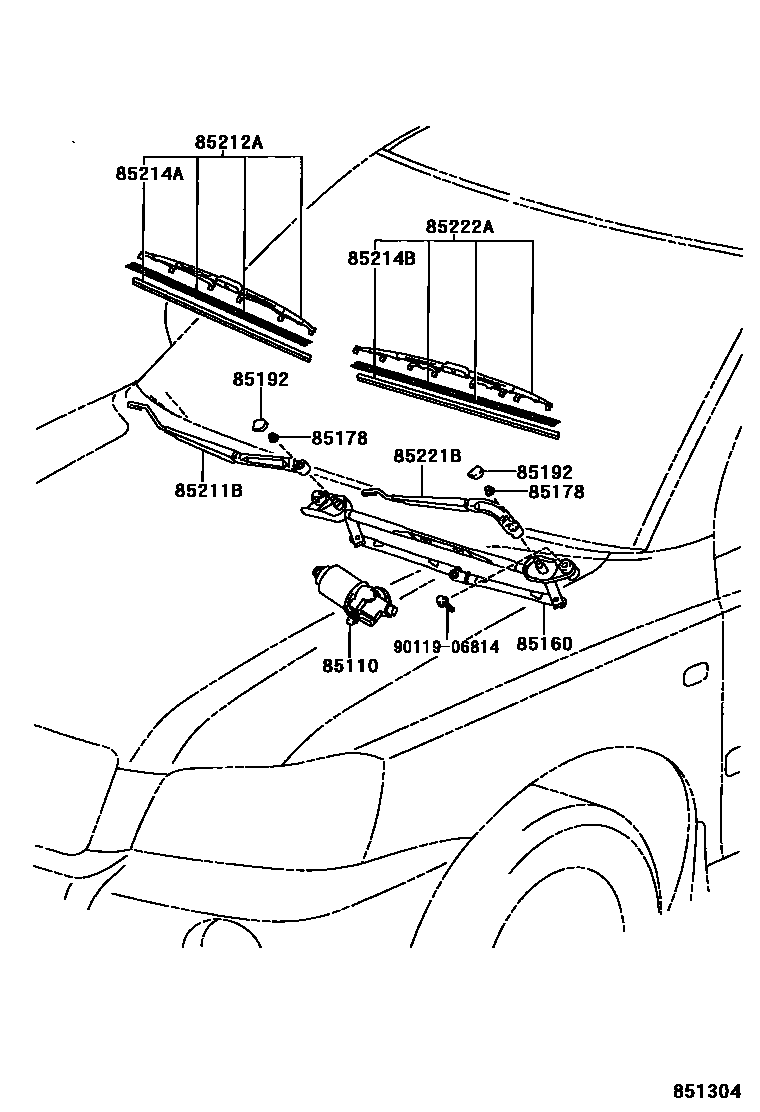

11 parts on this diagram · 1 diagram in section
