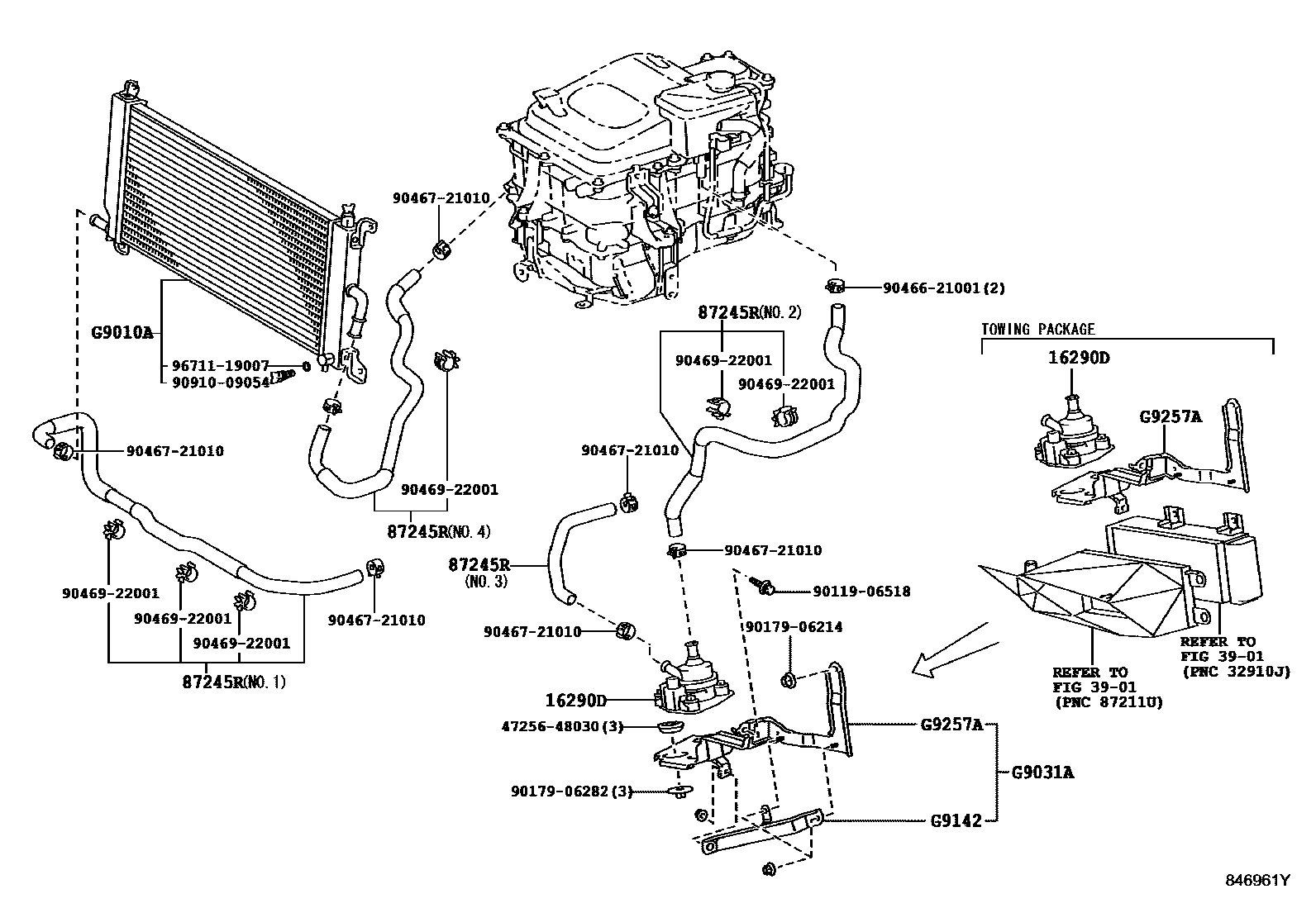

INVERTER COOLING

16290DPUMP ASSY, WATER W/MOTOR

mainG904048080i3MZFE..MHU2#200503-200705

3901TRANSAXLE ASSY(HEV OR BEV OR FCEV)

→ Go to FIG 39-01

87245RHOSE, WATER

main87245-48640iMHU2#200503

NO.1

main87245-48670iMHU2#200503

NO.2

main87245-48680iMHU2#200503

NO.3

main87245-48690iMHU2#200503

NO.4

G9010ARADIATOR ASSY

mainG901048010iMHU2#200503-200705

G9031ABRACKET SUB-ASSY, HV WATER PUMP

mainG925748080iMHU2#200503-200705

G9142BRACKET, HYBRID WATER PUMP, NO.2

mainG925748070iMHU2#200503-200705

G9257ABRACKET, INVERTER, NO.5

mainG925748060iMHU2#200503-200703

mainG925748150iMHU2#200703-200705

4725648030GROMMET, CAP

main47256-48030

9011906518

main90119-06518

9017906214

main90179-06214

9017906282

main90179-06282

9046621001

main90466-21001

9046721010

main90467-21010

9046922001

main90469-22001

9091009054

main90910-09054

9671119007

main96711-19007

16 parts on this diagram · 1 diagram in section
