AIR BAG

72277APROTECTOR, SEAT SLIDE POSITION SENSOR

main72277-33021i200503-200608

DRIVER:POWER SEAT/PASSENGER:MANUAL SEAT&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN; LEATHER SEAT&DRIVER:POWER SEAT/PASSENGER:MANUAL SEAT&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN; LEATHER SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER)&DRIVER:POWER SEAT/PASSENGER:MANUAL SEAT&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN; LIMITED(USA)&DRIVER:POWER SEAT/PASSENGER:POWER SEAT&SRS AIR BAG-DRIVER & PASSENGER& SIDE & CURTAIN; LIMITED(USA)&LEATHER SEAT&DRIVER:POWER SEAT/PASSENGER:POWER SEAT&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN; LIMITED(USA)&LEATHER SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER)&DRIVER:POWER SEAT/PASSENGER:POWER SEAT&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

89170SENSOR ASSY, AIRBAG

main89170-48191supersedes 89170-48170i200608

main89170-48190i200503-200606

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

89173ASENSOR, AIRBAG, FRONT RH

main89173-49295i200503

89174ASENSOR, AIRBAG, FRONT LH

main89173-49295i200503

89178ASENSOR, SEAT POSITION AIRBAG

main89178-33050supersedes 89178-33040i200503-200705

DRIVER:POWER SEAT/PASSENGER:MANUAL SEAT; LEATHER SEAT&DRIVER:POWER SEAT/PASSENGER:MANUAL SEAT; LEATHER SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER)&DRIVER:POWER SEAT/PASSENGER:MANUAL SEAT; LIMITED(USA)&DRIVER:POWER SEAT/PASSENGER:POWER SEAT; LIMITED(USA)&LEATHER SEAT&DRIVER:POWER SEAT/PASSENGER:POWER SEAT; LIMITED(USA)&LEATHER SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER)&DRIVER:POWER SEAT/PASSENGER:POWER SEAT

89833SENSOR, AIRBAG, REAR RH

main89833-48020i200608

89834SENSOR, AIRBAG, REAR LH

main89834-48020i200608

89860SENSOR ASSY, SIDE AIRBAG, RH

main89860-48030i200608

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89860-48030i200608

89952COMPUTER, OCCUPANT DETECTION

main89952-35011i200503-200705

9011908C48

main90119-08C48

9155380810

main91553-80810

91553A0625

main91553-A0625

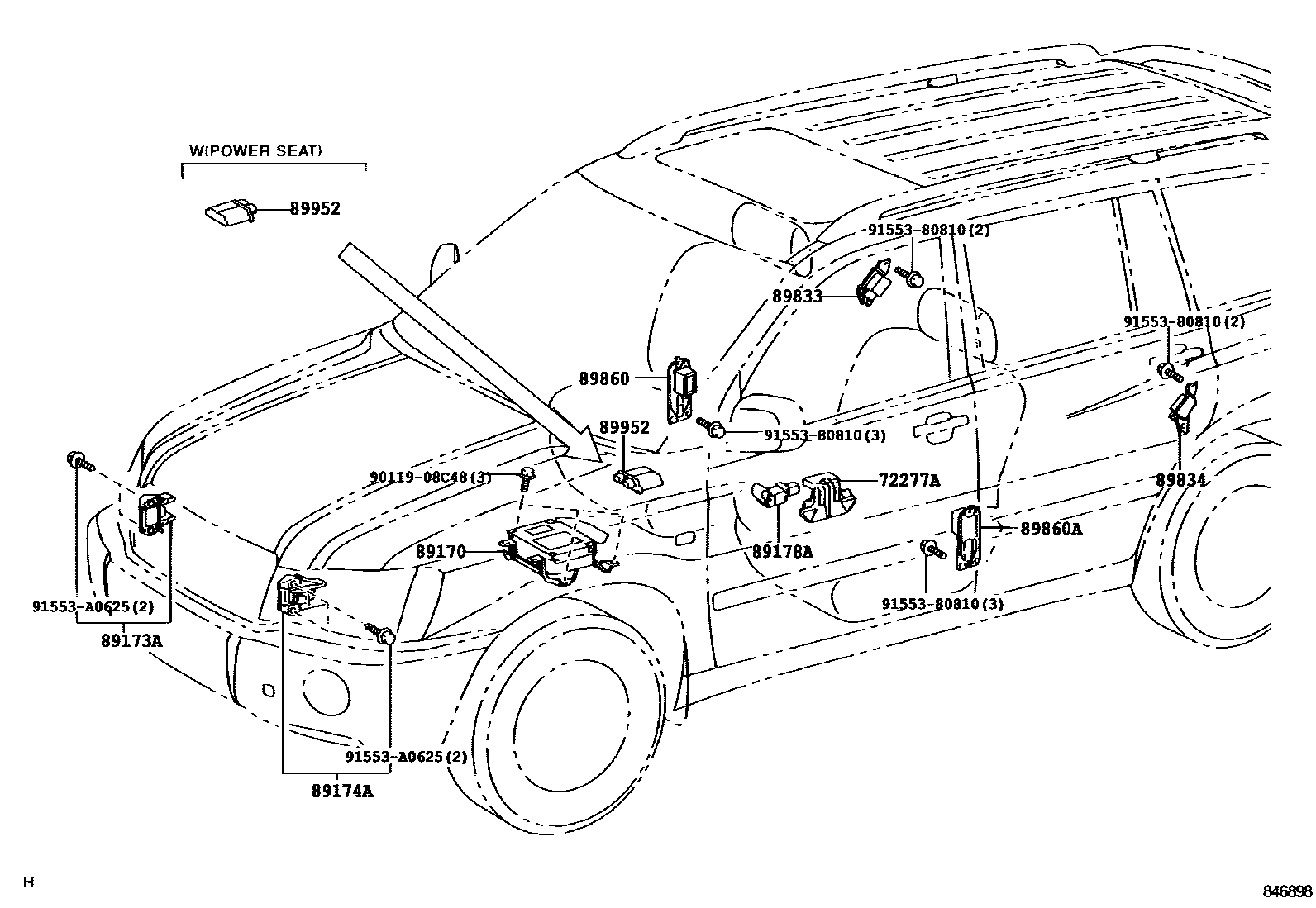

13 parts on this diagram · 1 diagram in section
