WIRELESS DOOR LOCK

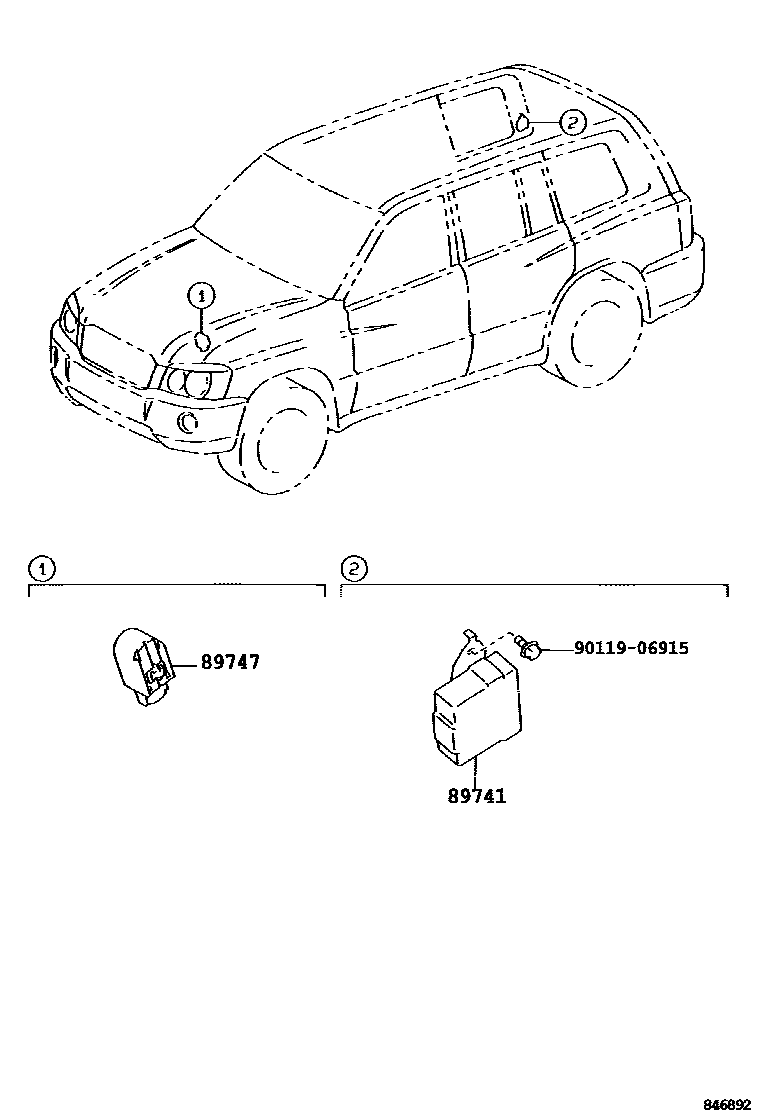

Parts diagram
89741RECEIVER, DOOR CONTROL
main89741-48220i200503-200509
WIRELESS DOOR LOCK-3 BUTTON KEY HOLDER TYPE
89747BUZZER, WIRELESS DOOR LOCK
main89747-48020i200503-200509
WIRELESS DOOR LOCK-3 BUTTON KEY HOLDER TYPE
9011906915
main90119-06915

3 parts on this diagram · 1 diagram in section
