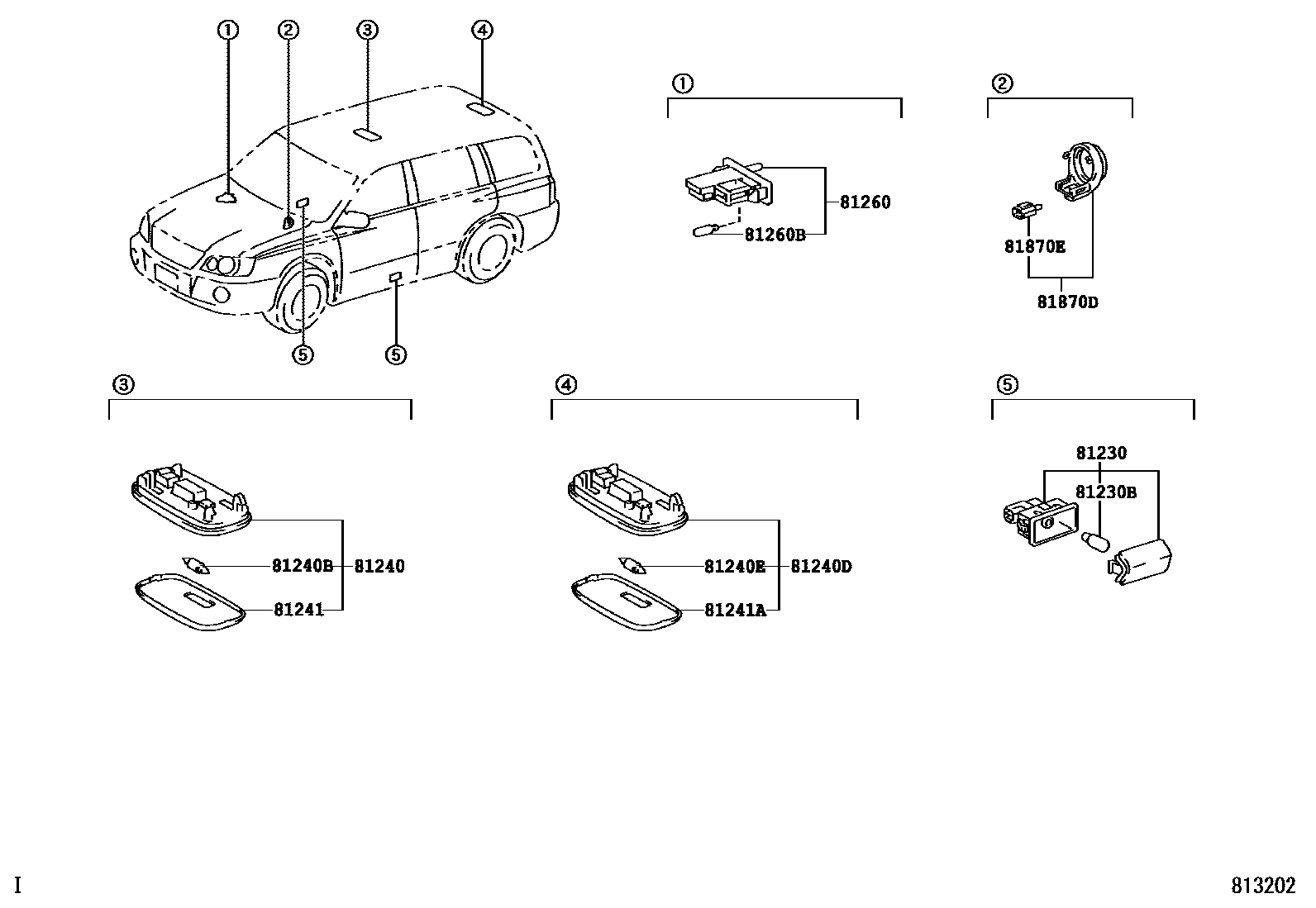

INTERIOR LAMP

81230LAMP ASSY, COURTESY

main81230-48010×2iMHU2#200503

81230BBULB(FOR COURTESY LAMP)

main90981-12010×2iMHU2#200503

12V 5W

81240LAMP ASSY, ROOM, NO.1

main81240-33030-A0iMHU2#200503-200705

IVORY,TRIM0#

main81240-33030-B3iMHU2#200503-200705

GRAY,TRIM1#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iMHU2#200503

12V 8W

81240DLAMP ASSY, ROOM, NO.2

main81240-33030-A0iMHU2#200503-200705

IVORY,TRIM0#

main81240-33030-B3iMHU2#200503-200705

GRAY,TRIM1#

81240EBULB, ROOM LAMP, NO.2

main90981-14011iMHU2#200503

12V 8W

81241LENS, ROOM LAMP, NO.1

main81241-33030iMHU2#200503

81241ALENS, ROOM LAMP, NO.2

main81241-33030iMHU2#200503

81260LAMP ASSY, GLOVE BOX

main81260-33040iMHU2#200503

81260BBULB(FOR GLOVE BOX)

main90981-11018iMHU2#200503

12V 1.2W W/O SOCKET

81870DLAMP ASSY, KEY CYLINDER

main81870-48030iMHU2#200503

81870EBULB, KEY CYLINDER LAMP

main90010-01056iMHU2#200503

14V 1.4W

12 parts on this diagram · 1 diagram in section
