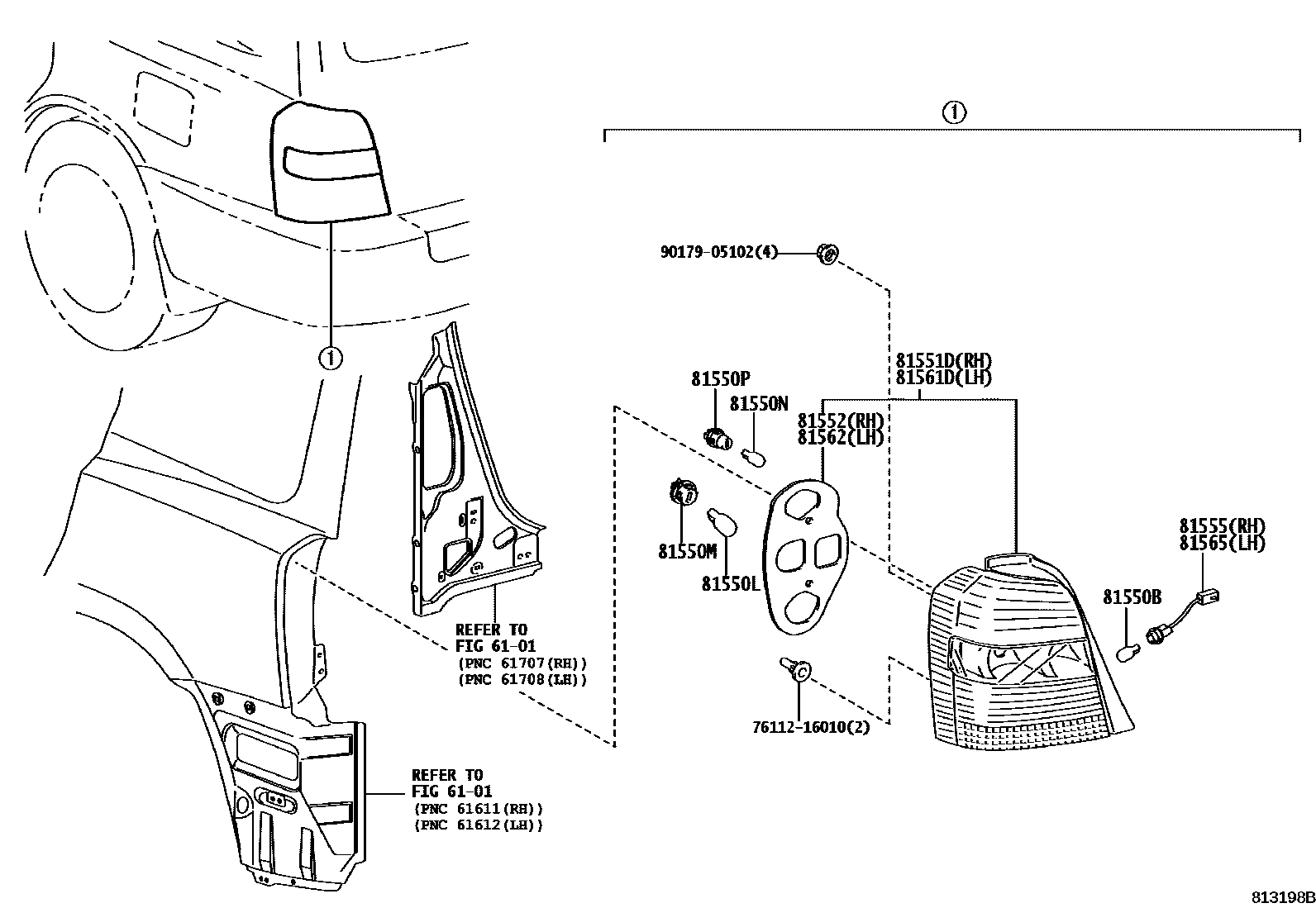

Toyota HIGHLANDER HV — REAR COMBINATION LAMP
6101SIDE MEMBER
81550BBULB(FOR REAR COMBINATION LAMP)
81550LBULB, REAR TURN SIGNAL LAMP
81550MSOCKET, REAR TURN SIGNAL LAMP
81550NBULB, BACK UP LAMP
81550PSOCKET, BACK UP LAMP
81551DLENS & BODY, REAR COMBINATION LAMP, RH
81552GASKET, REAR COMBINATION LAMP LENS, RH
81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81561DLENS & BODY, REAR COMBINATION LAMP, LH
81562GASKET, REAR COMBINATION LAMP LENS, LH
81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
7611216010
9017905102
14 parts on this diagram · 1 diagram in section
REAR COMBINATION LAMP for Toyota HIGHLANDER HV
This section contains 14 genuine Toyota parts for the REAR COMBINATION LAMP system of the Toyota HIGHLANDER HV. Key components include: SIDE MEMBER, BULB(FOR REAR COMBINATION LAMP), BULB, REAR TURN SIGNAL LAMP, SOCKET, REAR TURN SIGNAL LAMP, BULB, BACK UP LAMP.
