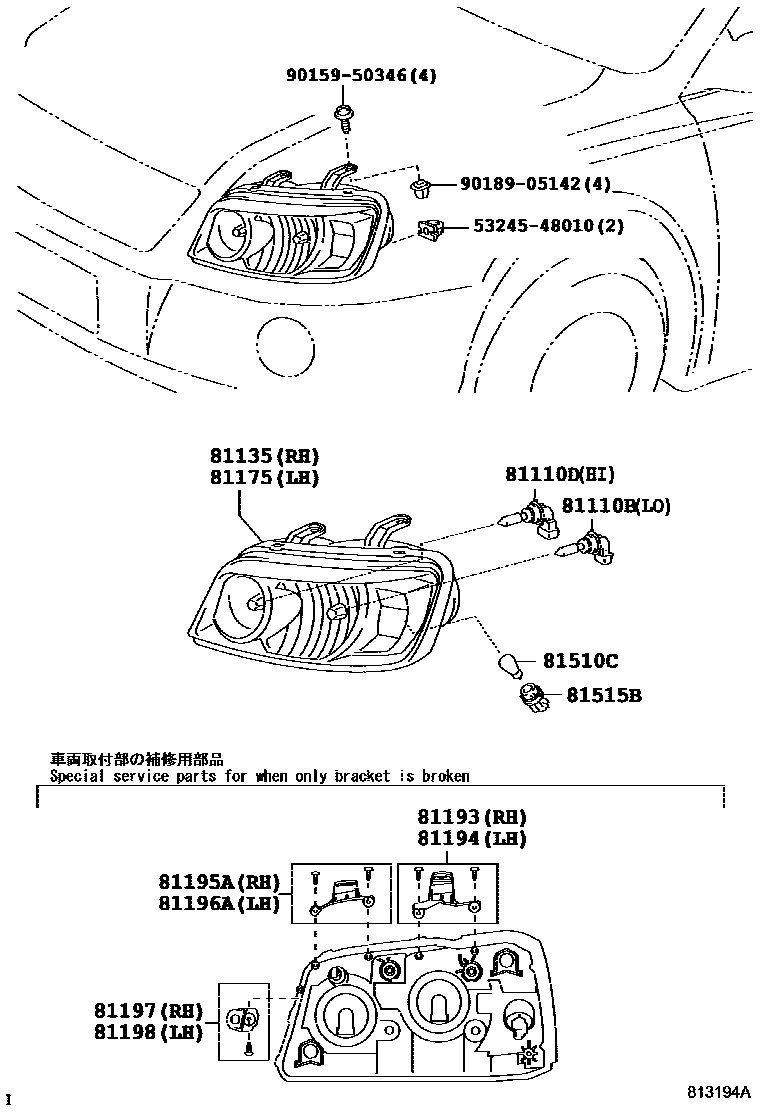

HEADLAMP

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13047×2iMHU2#200503

12V 51W,HALOGEN

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13046×2iMHU2#200503-200705

12V65W(SAE),60W(ECE)

81135UNIT ASSY, HEADLAMP, RH

main81130-48310iMHU2#200503-200608

main81130-48570iMHU2#200608

81175UNIT ASSY, HEADLAMP, LH

main81170-48310iMHU2#200503-200608

main81170-48570iMHU2#200608

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-48020iMHU2#200503

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-48020iMHU2#200503

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-48030iMHU2#200503

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81196-48030iMHU2#200503

81197BRACKET, HEADLAMP, LOWER RH

main81197-48010iMHU2#200503

81198BRACKET, HEADLAMP, LWR LH

main81198-48010iMHU2#200503

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main99132-21210×2iMHU2#200503

12V 21/5W

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-99106×2iMHU2#200503

5324548010BRACKET, HEADLAMP, RH

main53245-48010

9015950346

main90159-50346

9018905142

main90189-05142

15 parts on this diagram · 1 diagram in section
