ARMREST & VISOR

74230APANEL ASSY, FRONT DOOR ARMREST BASE, RH

main74230-48100-B0iMHU2#200503-200705

SADDLE GRAY,TRIM1#

main74230-48100-E0iMHU2#200503-200705

SANDAL WOOD,TRIM0#

main74230-48110-E1iMHU2#200503-200705

LIMITED(USA),BROWN MOKUME,TRIM0#,1#

74240APANEL ASSY, FRONT DOOR ARMREST BASE, LH

main74240-48100-B0iMHU2#200503-200705

SADDLE GRAY,TRIM1#

main74240-48100-E0iMHU2#200503-200705

SANDAL WOOD,TRIM0#

main74240-48110-E1iMHU2#200503-200705

LIMITED(USA),BROWN MOKUME,TRIM0#,1#

74310VISOR ASSY, RH

main74310-48230-A0supersedes 74310-48220-A0iMHU2#200503-200705

SUN VISOR-W/VANITY MIRROR & LAMP,IVORY,TRIM0#

main74310-48230-B0supersedes 74310-48220-B0iMHU2#200503-200705

SUN VISOR-W/VANITY MIRROR & LAMP,GRAY,TRIM1#

74317COVER, VISOR BRACKET, RH

main74317-30010-A1iMHU2#200503-200705

IVORY,TRIM0#

main74317-30010-B6iMHU2#200503-200705

GRAY,TRIM1#

74318COVER, VISOR BRACKET, LH

main74317-30010-A1iMHU2#200503-200705

IVORY,TRIM0#

main74317-30010-B6iMHU2#200503-200705

GRAY,TRIM1#

74320VISOR ASSY, LH

main74320-48270-A0supersedes 74320-48260-A0iMHU2#200503-200705

SUN VISOR-W/VANITY MIRROR & LAMP,IVORY,TRIM0#

main74320-48270-B0supersedes 74320-48260-B0iMHU2#200503-200705

SUN VISOR-W/VANITY MIRROR & LAMP,GRAY,TRIM1#

74348HOLDER, VISOR

main74348-12040-A0×2iMHU2#200503-200705

IVORY,TRIM0#

main74348-12040-B4×2iMHU2#200503-200705

GRAY,TRIM1#

74610AGRIP SUB-ASSY, ASSIST

main74611-48010-A0×4iMHU2#200503-200705

IVORY,TRIM0#

main74611-48010-B0×4iMHU2#200503-200705

GRAY,TRIM1#

74631CHOOK, COAT

main74631-48010-A0×2iMHU2#200503-200705

IVORY,TRIM0#

main74631-48010-B0×2iMHU2#200503-200705

GRAY,TRIM1#

9015150022

main90151-50022

9015960503

main90159-60503

9046804177

main90468-04177

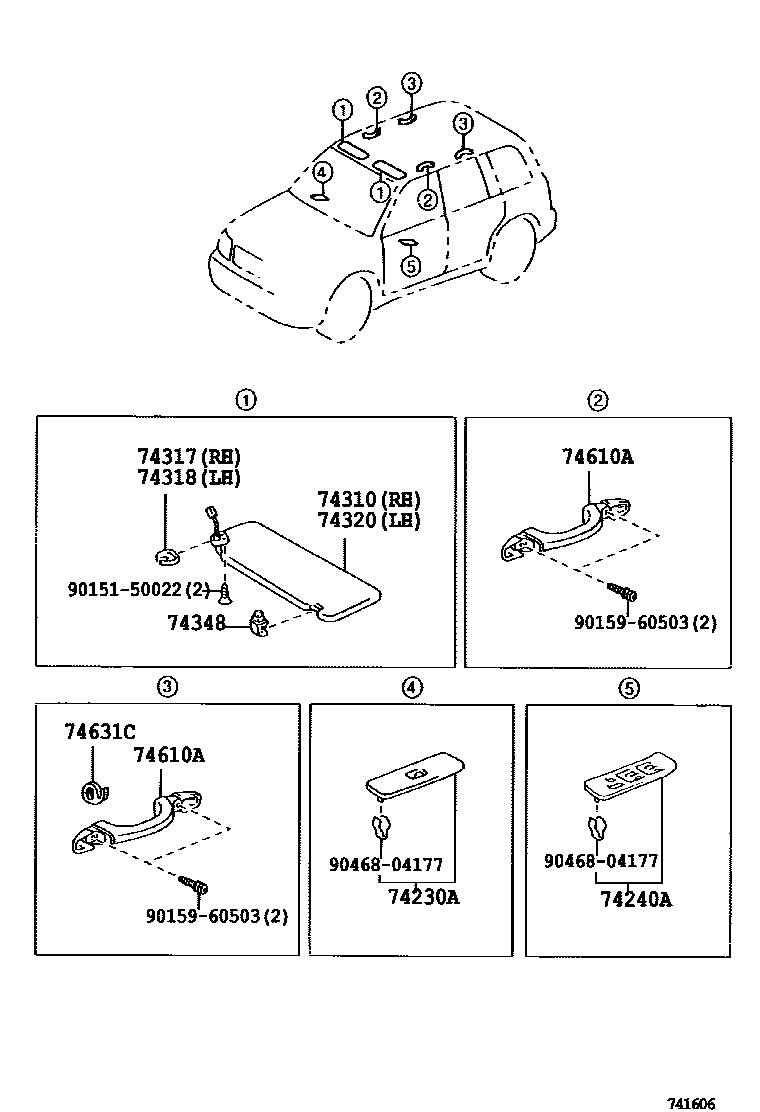

12 parts on this diagram · 1 diagram in section
