REAR SEAT & SEAT TRACK

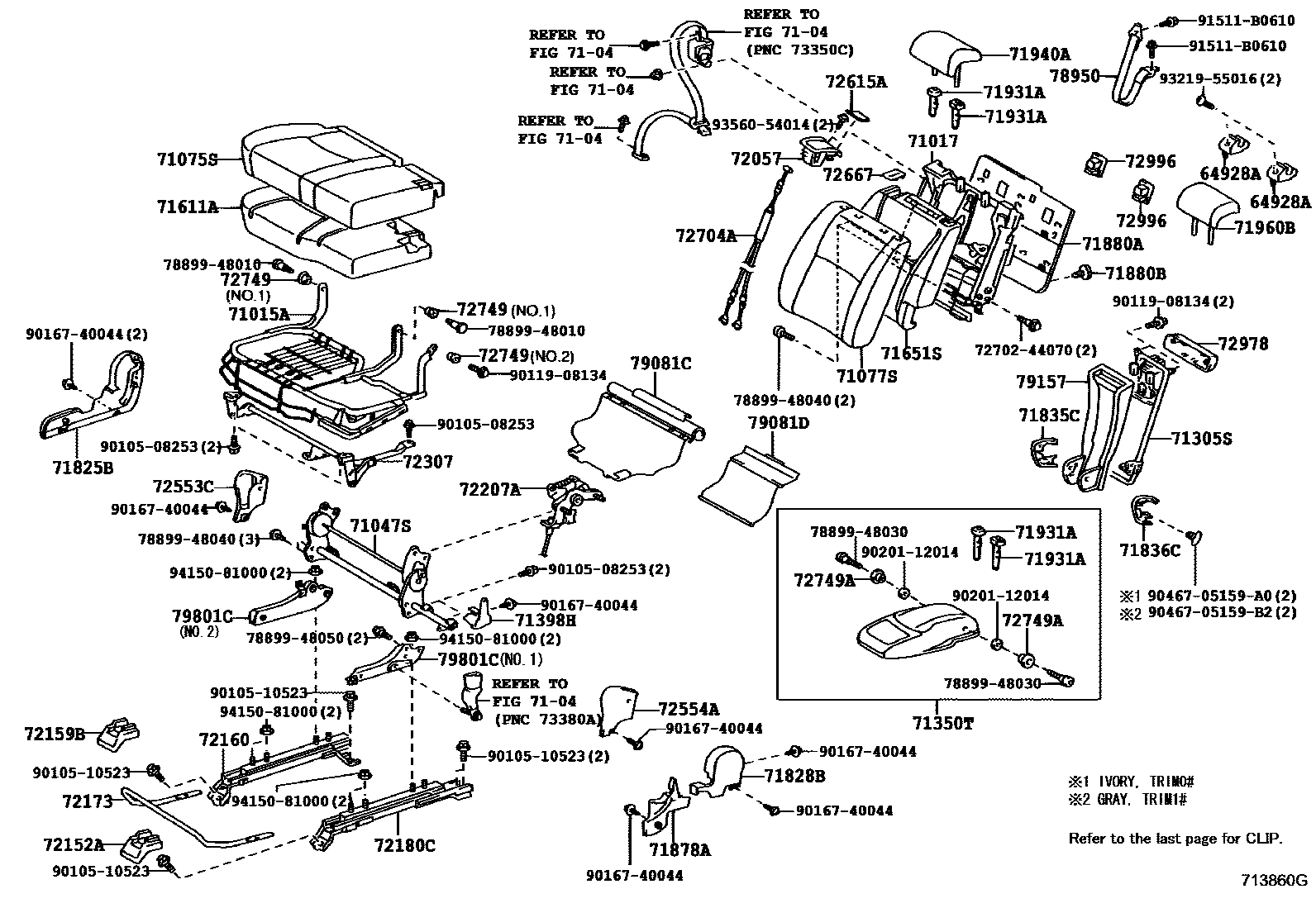

Parts diagram
64928AHOLDER, TONNEAU COVER HOOK
main64928-48010-A0×4i200503-200705
IVORY,TRIM0#
main64928-48010-B2×4i200503-200705
GRAY,TRIM1#
71015AFRAME SUB-ASSY, REAR SEAT CUSHION, RH
main71650-48050i200503
main71650-48060i200608
71017FRAME SUB-ASSY, REAR SEATBACK, RH
main71017-48100i200608
main71017-48130i200503
7104SEAT BELT & CHILD RESTRAINT SEAT
→ Go to FIG 71-04
71047SFRAME SUB-ASSY, REAR SEATBACK, LOWER RH
main71047-48020i200608
main71047-48040i200503
71075SCOVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)
main71075-48250-A3supersedes 71075-48240-A5i200503-200705
LEATHER SEAT&DRIVER:POWER SEAT/PASSENGER:MANUAL SEAT,IVORY,TRIM0#; LEATHER SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER)&DRIVER:POWER SEAT/PASSENGER:MANUAL SEAT,IVORY,TRIM0#; LIMITED(USA)&LEATHER SEAT&DRIVER:POWER SEAT/PASSENGER:POWER SEAT,IVORY,TRIM0#; LIMITED(USA)&LEATHER SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER)&DRIVER:POWER SEAT/PASSENGER:POWER SEAT,IVORY,TRIM0#
main71075-48250-B3supersedes 71075-48240-B4i200503-200705
LEATHER SEAT&DRIVER:POWER SEAT/PASSENGER:MANUAL SEAT,GRAY,TRIM1#; LEATHER SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER)&DRIVER:POWER SEAT/PASSENGER:MANUAL SEAT,GRAY,TRIM1#; LIMITED(USA)&LEATHER SEAT&DRIVER:POWER SEAT/PASSENGER:POWER SEAT,GRAY,TRIM1#; LIMITED(USA)&LEATHER SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER)&DRIVER:POWER SEAT/PASSENGER:POWER SEAT,GRAY,TRIM1#
main71075-48270-A1i200503-200608
LEATHER SEAT&DRIVER:POWER SEAT/PASSENGER:MANUAL SEAT&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,IVORY,TRIM0#; LEATHER SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER)&DRIVER:POWER SEAT/PASSENGER:MANUAL SEAT&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,IVORY,TRIM0#; LIMITED(USA)&LEATHER SEAT&DRIVER:POWER SEAT/PASSENGER:POWER SEAT&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,IVORY,TRIM0#; LIMITED(USA)&LEATHER SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER)&DRIVER:POWER SEAT/PASSENGER:POWER SEAT&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,IVORY,TRIM0#
main71075-48270-B1i200503-200608
LEATHER SEAT&DRIVER:POWER SEAT/PASSENGER:MANUAL SEAT&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,GRAY,TRIM1#; LEATHER SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER)&DRIVER:POWER SEAT/PASSENGER:MANUAL SEAT&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,GRAY,TRIM1#; LIMITED(USA)&LEATHER SEAT&DRIVER:POWER SEAT/PASSENGER:POWER SEAT&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,GRAY,TRIM1#; LIMITED(USA)&LEATHER SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER)&DRIVER:POWER SEAT/PASSENGER:POWER SEAT&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,GRAY,TRIM1#
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
main71077-48420-A1i200503-200608
LEATHER SEAT&DRIVER:POWER SEAT/PASSENGER:MANUAL SEAT&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,IVORY,TRIM0#; LEATHER SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER)&DRIVER:POWER SEAT/PASSENGER:MANUAL SEAT&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,IVORY,TRIM0#; LIMITED(USA)&LEATHER SEAT&DRIVER:POWER SEAT/PASSENGER:POWER SEAT&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,IVORY,TRIM0#; LIMITED(USA)&LEATHER SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER)&DRIVER:POWER SEAT/PASSENGER:POWER SEAT&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,IVORY,TRIM0#
main71077-48420-B1i200503-200608
LEATHER SEAT&DRIVER:POWER SEAT/PASSENGER:MANUAL SEAT&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,GRAY,TRIM1#; LEATHER SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER)&DRIVER:POWER SEAT/PASSENGER:MANUAL SEAT&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,GRAY,TRIM1#; LIMITED(USA)&LEATHER SEAT&DRIVER:POWER SEAT/PASSENGER:POWER SEAT&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,GRAY,TRIM1#; LIMITED(USA)&LEATHER SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER)&DRIVER:POWER SEAT/PASSENGER:POWER SEAT&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,GRAY,TRIM1#
main71077-48450-A1supersedes 71077-48440-A1i200503-200705
LEATHER SEAT&DRIVER:POWER SEAT/PASSENGER:MANUAL SEAT,IVORY,TRIM0#; LEATHER SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER)&DRIVER:POWER SEAT/PASSENGER:MANUAL SEAT,IVORY,TRIM0#; LIMITED(USA)&LEATHER SEAT&DRIVER:POWER SEAT/PASSENGER:POWER SEAT,IVORY,TRIM0#; LIMITED(USA)&LEATHER SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER)&DRIVER:POWER SEAT/PASSENGER:POWER SEAT,IVORY,TRIM0#
main71077-48450-B1supersedes 71077-48440-B1i200503-200705
LEATHER SEAT&DRIVER:POWER SEAT/PASSENGER:MANUAL SEAT,GRAY,TRIM1#; LEATHER SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER)&DRIVER:POWER SEAT/PASSENGER:MANUAL SEAT,GRAY,TRIM1#; LIMITED(USA)&LEATHER SEAT&DRIVER:POWER SEAT/PASSENGER:POWER SEAT,GRAY,TRIM1#; LIMITED(USA)&LEATHER SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER)&DRIVER:POWER SEAT/PASSENGER:POWER SEAT,GRAY,TRIM1#
71305SFRAME SUB-ASSY, CENTER SEATBACK
main71305-48020i200608
main71305-48030i200503
71350TBACK ASSY, CENTER SEAT
main71350-48060-A0i200608-200705
DRIVER:POWER SEAT/PASSENGER:MANUAL SEAT,IVORY,TRIM0#; LIMITED(USA)&DRIVER:POWER SEAT/PASSENGER:POWER SEAT,IVORY,TRIM0#
main71350-48060-B0i200608-200705
DRIVER:POWER SEAT/PASSENGER:MANUAL SEAT,GRAY,TRIM1#; LIMITED(USA)&DRIVER:POWER SEAT/PASSENGER:POWER SEAT,GRAY,TRIM1#
main71350-48070-A0supersedes 71350-48060-A0i200503-200705
LEATHER SEAT&DRIVER:POWER SEAT/PASSENGER:MANUAL SEAT,IVORY,TRIM0#; LEATHER SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER)&DRIVER:POWER SEAT/PASSENGER:MANUAL SEAT,IVORY,TRIM0#; LIMITED(USA)&LEATHER SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER)&DRIVER:POWER SEAT/PASSENGER:POWER SEAT,IVORY,TRIM0#
main71350-48070-B0supersedes 71350-48060-B0i200503-200705
LEATHER SEAT&DRIVER:POWER SEAT/PASSENGER:MANUAL SEAT,GRAY,TRIM1#; LEATHER SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER)&DRIVER:POWER SEAT/PASSENGER:MANUAL SEAT,GRAY,TRIM1#; LIMITED(USA)&LEATHER SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER)&DRIVER:POWER SEAT/PASSENGER:POWER SEAT,GRAY,TRIM1#
main71350-48090-A0supersedes 71350-48080-A0i200503-200608
LEATHER SEAT&DRIVER:POWER SEAT/PASSENGER:MANUAL SEAT&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,IVORY,TRIM0#; LEATHER SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER)&DRIVER:POWER SEAT/PASSENGER:MANUAL SEAT&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,IVORY,TRIM0#; LIMITED(USA)&LEATHER SEAT&DRIVER:POWER SEAT/PASSENGER:POWER SEAT,IVORY,TRIM0#; LIMITED(USA)&LEATHER SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER)&DRIVER:POWER SEAT/PASSENGER:POWER SEAT&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,IVORY,TRIM0#
main71350-48090-B0supersedes 71350-48080-B0i200503-200705
LEATHER SEAT&DRIVER:POWER SEAT/PASSENGER:MANUAL SEAT,GRAY,TRIM1#; LEATHER SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER)&DRIVER:POWER SEAT/PASSENGER:MANUAL SEAT,GRAY,TRIM1#; LIMITED(USA)&LEATHER SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER)&DRIVER:POWER SEAT/PASSENGER:POWER SEAT,GRAY,TRIM1#
71398HCOVER, CENTER SEAT HINGE, UPPER LH
main71398-48010-A0i200503-200705
IVORY,TRIM0#
main71398-48010-B1i200503-200705
GRAY,TRIM1#
71611APAD, REAR SEAT CUSHION, RH
main71611-48160supersedes 71611-48240i200608
LEATHER SEAT&DRIVER:POWER SEAT/PASSENGER:MANUAL SEAT; LEATHER SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER)&DRIVER:POWER SEAT/PASSENGER:MANUAL SEAT; LIMITED(USA)&LEATHER SEAT&DRIVER:POWER SEAT/PASSENGER:POWER SEAT; LIMITED(USA)&LEATHER SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER)&DRIVER:POWER SEAT/PASSENGER:POWER SEAT
main71611-48180supersedes 71611-48260i200608
LEATHER SEAT&DRIVER:POWER SEAT/PASSENGER:MANUAL SEAT; LEATHER SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER)&DRIVER:POWER SEAT/PASSENGER:MANUAL SEAT; LIMITED(USA)&LEATHER SEAT&DRIVER:POWER SEAT/PASSENGER:POWER SEAT; LIMITED(USA)&LEATHER SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER)&DRIVER:POWER SEAT/PASSENGER:POWER SEAT
main71611-48240supersedes 71611-48160i200503-200608
DRIVER:POWER SEAT/PASSENGER:MANUAL SEAT&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN; LIMITED(USA)&DRIVER:POWER SEAT/PASSENGER:POWER SEAT&SRS AIR BAG-DRIVER & PASSENGER& SIDE & CURTAIN; SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN
main71611-48260supersedes 71611-48180i200503-200608
DRIVER:POWER SEAT/PASSENGER:MANUAL SEAT&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN; LIMITED(USA)&DRIVER:POWER SEAT/PASSENGER:POWER SEAT&SRS AIR BAG-DRIVER & PASSENGER& SIDE & CURTAIN; SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
main71651-48080supersedes 71651-48150i200608
LEATHER SEAT&DRIVER:POWER SEAT/PASSENGER:MANUAL SEAT; LEATHER SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER)&DRIVER:POWER SEAT/PASSENGER:MANUAL SEAT; LIMITED(USA)&LEATHER SEAT&DRIVER:POWER SEAT/PASSENGER:POWER SEAT; LIMITED(USA)&LEATHER SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER)&DRIVER:POWER SEAT/PASSENGER:POWER SEAT
main71651-48100supersedes 71651-48170i200608
LEATHER SEAT&DRIVER:POWER SEAT/PASSENGER:MANUAL SEAT; LEATHER SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER)&DRIVER:POWER SEAT/PASSENGER:MANUAL SEAT; LIMITED(USA)&LEATHER SEAT&DRIVER:POWER SEAT/PASSENGER:POWER SEAT; LIMITED(USA)&LEATHER SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER)&DRIVER:POWER SEAT/PASSENGER:POWER SEAT
main71651-48150supersedes 71651-48080i200503-200608
DRIVER:POWER SEAT/PASSENGER:MANUAL SEAT&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN; LIMITED(USA)&DRIVER:POWER SEAT/PASSENGER:POWER SEAT&SRS AIR BAG-DRIVER & PASSENGER& SIDE & CURTAIN; SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN
main71651-48170supersedes 71651-48100i200503-200608
DRIVER:POWER SEAT/PASSENGER:MANUAL SEAT&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN; LIMITED(USA)&DRIVER:POWER SEAT/PASSENGER:POWER SEAT&SRS AIR BAG-DRIVER & PASSENGER& SIDE & CURTAIN; SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN
71825BMOULDING, REAR SEAT CUSHION, RH
main71825-48030-A0i200503-200705
IVORY,TRIM0#
main71825-48030-B1i200503-200705
GRAY,TRIM1#
main71825-48040-A0i200503-200705
IVORY,TRIM0#
main71825-48040-B0i200503-200705
GRAY,TRIM1#
71828BMOULDING, REAR SEAT CUSHION, REAR RH
main71828-48030-A0i200503-200705
IVORY,TRIM0#
main71828-48030-B1i200503-200705
GRAY,TRIM1#
main71829-48040-A0i200503-200705
IVORY,TRIM0#
main71829-48040-B0i200503-200705
GRAY,TRIM1#
71835CMOULDING, REAR SEATBACK, RH
main71835-48010-A0i200503-200705
IVORY,TRIM0#
main71835-48010-B1i200503-200705
GRAY,TRIM1#
71836CMOULDING, REAR SEATBACK, LH
main71836-48010-A0i200503-200705
IVORY,TRIM0#
main71836-48010-B1i200503-200705
GRAY,TRIM1#
71878ACOVER, REAR SEAT RECLINING, INNER RH
main71878-48020-A0i200503-200705
IVORY,TRIM0#
main71878-48020-B1i200503-200705
GRAY,TRIM1#
main71878-48030-A0i200503-200705
IVORY,TRIM0#
main71878-48030-B0i200503-200705
GRAY,TRIM1#
71880ACARPET ASSY, REAR SEATBACK BOARD, RH
main71880-48170-A0i200503-200705
IVORY,TRIM0#
main71880-48170-B0i200503-200705
LT.GRAY,TRIM1#
main71880-48190-A0i200503-200705
IVORY,TRIM0#
main71880-48190-B0i200503-200705
LT.GRAY,TRIM1#
71880BCLIP(FOR REAR SEATBACK CARPET)
main90467-07049-C0×8i200503-200705
BLACK
71931ASUPPORT, REAR SEAT HEADREST
main71930-42020-A0×2i200503-200705
W(LOCK)&W(BUTTON),IVORY,TRIM0#
main71930-42020-B7×2i200503-200705
W(LOCK)&W(BUTTON),GRAY,TRIM1#
main71931-42020-A0×2i200503-200705
W(LOCK)&W/O(BUTTON),IVORY,TRIM0#
main71931-42020-B7×2i200503-200705
W(LOCK)&W/O(BUTTON),GRAY,TRIM1#
main71955-48010-A0supersedes 71956-48010-A0i200503-200705
W(LOCK),IVORY,TRIM0#,CENTER
main71955-48010-B1supersedes 71956-48010-B1i200608-200705
W(LOCK),GRAY,TRIM1#,CENTER
main71956-48010-A0i200503-200705
W/O(LOCK),IVORY,TRIM0#,CENTER
main71956-48010-B1i200503-200705
W/O(LOCK),GRAY,TRIM1#,CENTER
71940AHEADREST ASSY, REAR SEAT
main71940-48220-A0×2supersedes 71940-48210-A0i200503-200705
LEATHER SEAT&DRIVER:POWER SEAT/PASSENGER:MANUAL SEAT,IVORY,TRIM0#; LEATHER SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER)&DRIVER:POWER SEAT/PASSENGER:MANUAL SEAT,IVORY,TRIM0#; LIMITED(USA)&LEATHER SEAT&DRIVER:POWER SEAT/PASSENGER:POWER SEAT,IVORY,TRIM0#; LIMITED(USA)&LEATHER SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER)&DRIVER:POWER SEAT/PASSENGER:POWER SEAT,IVORY,TRIM0#
main71940-48220-B0×2supersedes 71940-48210-B0i200503-200705
LEATHER SEAT&DRIVER:POWER SEAT/PASSENGER:MANUAL SEAT,GRAY,TRIM1#; LEATHER SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER)&DRIVER:POWER SEAT/PASSENGER:MANUAL SEAT,GRAY,TRIM1#; LIMITED(USA)&LEATHER SEAT&DRIVER:POWER SEAT/PASSENGER:POWER SEAT,GRAY,TRIM1#; LIMITED(USA)&LEATHER SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER)&DRIVER:POWER SEAT/PASSENGER:POWER SEAT,GRAY,TRIM1#
71960BHEADREST ASSY, REAR SEAT, CENTER
main71960-48240-A0supersedes 71960-48250-A0i200503-200705
LEATHER SEAT&DRIVER:POWER SEAT/PASSENGER:MANUAL SEAT,IVORY,TRIM0#; LEATHER SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER)&DRIVER:POWER SEAT/PASSENGER:MANUAL SEAT,IVORY,TRIM0#; LIMITED(USA)&LEATHER SEAT&DRIVER:POWER SEAT/PASSENGER:POWER SEAT,IVORY,TRIM0#; LIMITED(USA)&LEATHER SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER)&DRIVER:POWER SEAT/PASSENGER:POWER SEAT,IVORY,TRIM0#
main71960-48240-B0i200503-200608
LEATHER SEAT&DRIVER:POWER SEAT/PASSENGER:MANUAL SEAT&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,NEW GRAY,TRIM1#; LEATHER SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER)&DRIVER:POWER SEAT/PASSENGER:MANUAL SEAT&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,NEW GRAY,TRIM1#; LIMITED(USA)&LEATHER SEAT&DRIVER:POWER SEAT/PASSENGER:POWER SEAT&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,NEW GRAY,TRIM1#; LIMITED(USA)&LEATHER SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER)&DRIVER:POWER SEAT/PASSENGER:POWER SEAT&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,NEW GRAY,TRIM1#
72057LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH
main72058-48010-A0i200503-200705
IVORY,TRIM0#
main72058-48010-B1i200503-200705
GRAY,TRIM1#
72152ACOVER, REAR SEAT TRACK BRACKET, INNER
main72152-48040-A0i200503-200705
IVORY,TRIM0#,RH SEAT
main72152-48040-B0i200503-200705
GRAY,TRIM1#,RH SEAT
main72152-48050-A0i200503-200705
IVORY,TRIM0#,LH SEAT
main72152-48050-B0i200503-200705
GRAY,TRIM1#,LH SEAT
main72159-48090-A0i200503-200705
IVORY,TRIM0#,RH SEAT
main72159-48090-B0i200503-200705
GRAY,TRIM1#,RH SEAT
72159BCOVER, REAR SEAT TRACK BRACKET, OUTER
main72152-48050-A0i200503-200705
IVORY,TRIM0#,LH SEAT
main72152-48050-B0i200503-200705
GRAY,TRIM1#,LH SEAT
main72159-48070-A0i200503-200705
IVORY,TRIM0#,RH SEAT
main72159-48070-B0i200503-200705
GRAY,TRIM1#,RH SEAT
main72159-48080-A0i200503-200705
IVORY,TRIM0#,LH SEAT
main72159-48080-B0i200503-200705
GRAY,TRIM1#,LH SEAT
main72159-48090-A0i200503-200705
IVORY,TRIM0#,RH SEAT
main72159-48090-B0i200503-200705
GRAY,TRIM1#,RH SEAT
72160TRACK ASSY, REAR SEAT, OUTER RH
main72160-48060i200608
main72160-48080i200503
72173HANDLE, REAR SEAT TRACK ADJUSTING
main72173-48030×2i200608
main72173-48040×2i200503
72180CTRACK ASSY, REAR SEAT, INNER RH
main72180-48060i200608
main72180-48080i200503
72207APLATE, SEAT TRACK STOP RH
main72207-48030i200608
main72207-48040i200503
72307LINK SUB-ASSY, RECLINING CONTROL, RH
main72307-48060i200503
main72307-48080i200608
72553CPROTECTOR, RECLINING COVER, RH
main72553-48060-A0i200503-200705
IVORY,TRIM0#
main72553-48060-B1i200503-200705
GRAY,TRIM1#
72554APROTECTOR, RECLINING COVER, LH
main72554-48060-A0i200503-200705
IVORY,TRIM0#
main72554-48060-B1i200503-200705
GRAY,TRIM1#
72615ACOVER, REAR SEATBACK LOCK STRIKER, RH
main72615-48020-A0i200503-200705
IVORY,TRIM0#
main72615-48020-B1i200503-200705
GRAY,TRIM1#
72667BEZEL, REAR SEATBACK LOCK, UPPER
main72667-48010-A0i200503-200705
IVORY,TRIM0#
main72667-48010-B1i200503-200705
GRAY,TRIM1#
72704ACABLE, REAR SEAT RECLINING CONTROL
main72704-48010i200608
main72704-48020i200503
NO.1
main72704-48030i200503
NO.2
72749SPACER, REAR SEAT RECLINING
main72749-48010×4i200503-200705
NO.1
main72749-48020×2i200503-200705
NO.2
72749ASPACER, REAR SEAT RECLINING
main72749-48030×2i200503
72978COVER, NO.2 CENTER SEATBACK
main72978-48020-A0i200503-200705
IVORY,TRIM0#
main72978-48020-B0i200503-200705
GRAY,TRIM1#
72996COVER, REAR SEATBACK, RH
main72996-48030-A0i200503-200705
IVORY,TRIM0#
main72996-48030-B1×2i200503-200705
GRAY,TRIM1#
78950BAND ASSY, FOLD SEAT STOPPER, NO.1
main78950-48040i200608
79081CCOVER, REAR SEAT, NO.1
main79081-48040i200503
main79081-48070i200608
79081DCOVER, REAR SEAT, NO.2
main79081-48030i200608
RH
main79081-48050i200503
main79081-48080i200608
LH
79157COVER, NO.1 SEATBACK
main79157-48010-A0i200503-200705
IVORY,TRIM0#
main79157-48010-B1i200503-200705
GRAY,TRIM1#
main79157-48030-A0i200503-200705
IVORY,TRIM0#
main79157-48030-B0i200503-200705
GRAY,TRIM1#
79801CFRAME, FOLD SEAT CUSHION, NO.2
main79801-48070i200608
NO.1
main79801-48080i200503
NO.1
main79801-48090i200503
NO.2
7270244070BRACKET SUB-ASSY, REAR SEATBACK STRIKER
main72702-44070
7889948010BOLT, FRONT SEAT
main78899-48010
7889948030BOLT, FRONT SEAT
main78899-48030
7889948040BOLT, FRONT SEAT
main78899-48040
7889948050BOLT, FRONT SEAT
main78899-48050
9010508253
main90105-08253
9010510523
main90105-10523
9011908134
main90119-08134
9016740044
main90167-40044
9020112014
main90201-12014
9046705159A0
main90467-05159A0
9046705159B2
main90467-05159B2
91511B0610
main91511-B0610
9321955016
main93219-55016
9356054014
main93560-54014
9415081000
main94150-81000

60 parts on this diagram · 6 diagrams in section
