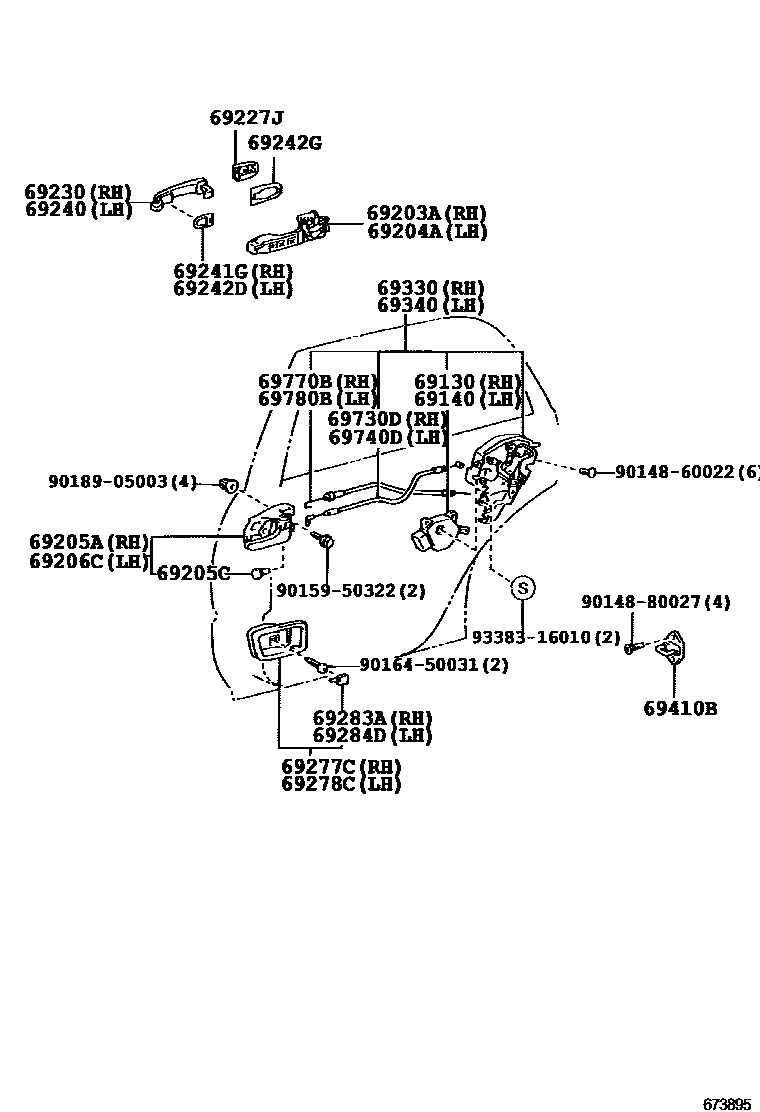

REAR DOOR LOCK & HANDLE
69130ACTUATOR ASSY, REAR DOOR LOCK, RH
69140ACTUATOR ASSY, REAR DOOR LOCK, LH
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
LIMITED(USA),IVORY,TRIM0#
LIMITED(USA),GRAY,TRIM1#
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
LIMITED(USA),IVORY,TRIM0#
LIMITED(USA),GRAY,TRIM1#
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
SUPER WHITE 2,040
SILVER ME.,1C0
BLACK,202
BEIGE M.M.,4R3
GREEN M.M.,6T5
GRAYISH BLUE ME.,8N6
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
SUPER WHITE 2,040
SILVER ME.,1C0
BLACK,202
BEIGE M.M.,4R3
GREEN M.M.,6T5
GRAYISH BLUE ME.,8N6
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
SUPER WHITE 2,040
SILVER ME.,1C0
BLACK,202
BEIGE M.M.,4R3
GREEN M.M.,6T5
GRAYISH BLUE ME.,8N6
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242DPAD, REAR DOOR OUTSIDE HANDLE, LH
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69277CBEZEL, REAR DOOR INSIDE HANDLE, RH
LIMITED(USA),IVORY,TRIM0#
LIMITED(USA),GRAY,TRIM1#
69278CBEZEL, REAR DOOR INSIDE HANDLE, LH
LIMITED(USA),IVORY,TRIM0#
LIMITED(USA),GRAY,TRIM1#
69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
IVORY,TRIM03
NEW GRAY,TRIM13
69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
IVORY,TRIM03
NEW GRAY,TRIM13
69330LOCK ASSY, REAR DOOR, RH
69340LOCK ASSY, REAR DOOR, LH
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
9014860022
main90148-60022
9014880027
main90148-80027
9015950322
main90159-50322
9016450031
main90164-50031
9018905003
main90189-05003
9338316010
main93383-16010
30 parts on this diagram · 1 diagram in section
