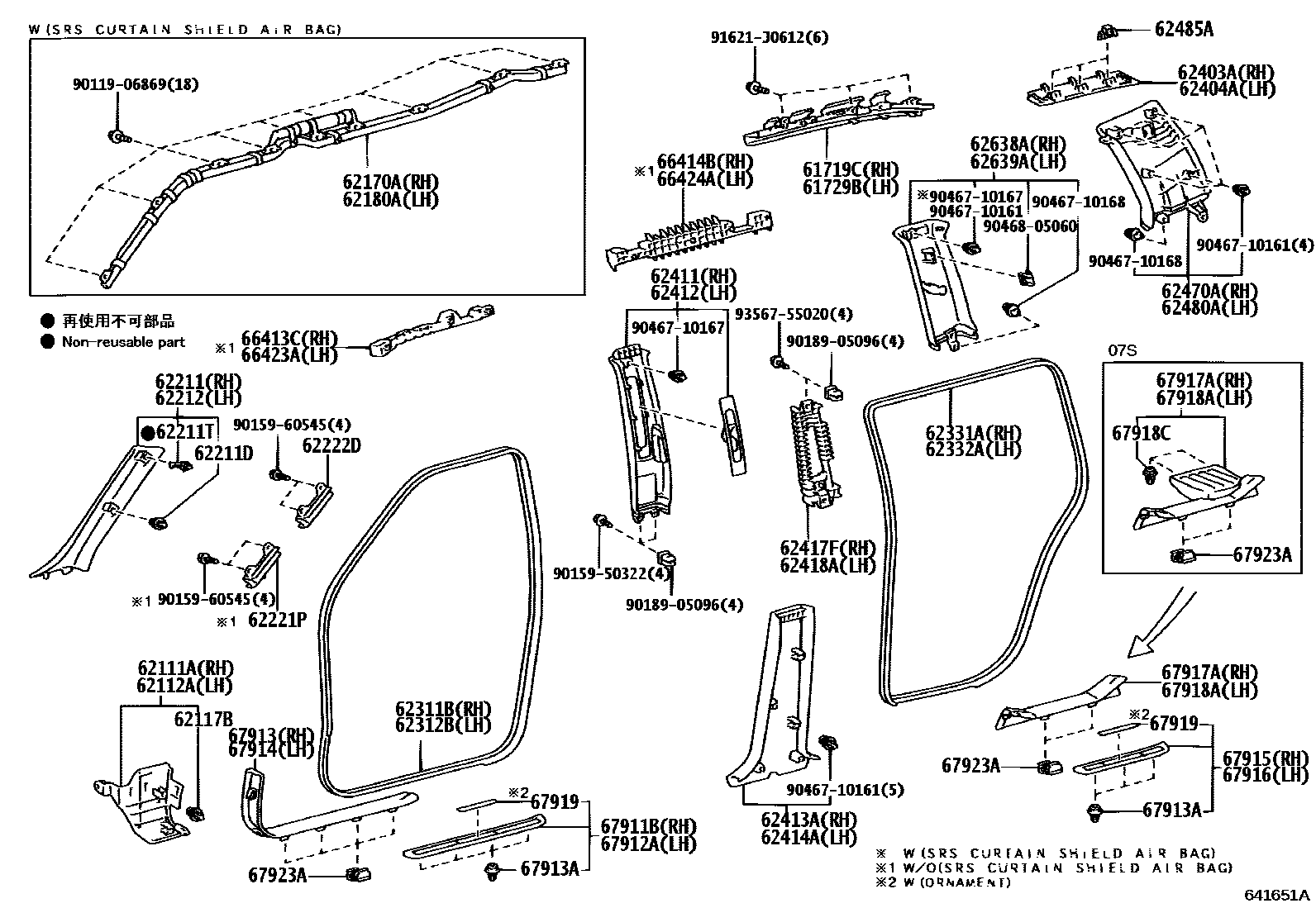

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

61719CBRACKET, ROOF SIDE RAIL, RH

main61719-48020iMHU2#200503

61729BBRACKET, ROOF SIDE RAIL, LH

main61729-48020iMHU2#200503

62111ATRIM SUB-ASSY, COWL SIDE, RH

main62101-48030-A0iMHU2#200503-200705

IVORY,TRIM0#

main62101-48030-B0iMHU2#200503-200705

GRAY,TRIM1#

62112ATRIM SUB-ASSY, COWL SIDE, LH

main62102-48040-A0iMHU2#200503-200705

IVORY,TRIM0#

main62102-48040-B0iMHU2#200503-200705

GRAY,TRIM1#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-10161×4iMHU2#200503

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-48021iMHU2#200608-200705

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-48021iMHU2#200608-200705

62211GARNISH, FRONT PILLAR, RH

main62210-48090-A0supersedes 62210-48100-A0iMHU2#200608-200705

IVORY,TRIM0#

main62210-48090-B0supersedes 62210-48100-B0iMHU2#200608-200705

GRAY,TRIM1#

62211DCLIP(FOR FRONT BODY PILLAR GARNISH)

main90467-10188×2iMHU2#200503

62211TCLIP(FOR FRONT PILLAR GARNISH)

main90950-08004×2iMHU2#200503

62212GARNISH, FRONT PILLAR, LH

main62220-48090-A0supersedes 62220-48100-A0iMHU2#200608-200705

IVORY,TRIM0#

main62220-48090-B0supersedes 62220-48100-B0iMHU2#200608-200705

GRAY,TRIM1#

62221PSPACER, FRONT PILLAR, NO.1 RH

main62221-48060×2iMHU2#200503-200608

62222DSPACER, FRONT PILLAR, NO.2 RH

main62223-48020×2supersedes 62222-48060iMHU2#200608

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-48050-A0iMHU2#200503-200705

IVORY,TRIM0#

main62311-48050-B0iMHU2#200503-200705

GRAY,TRIM1#

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-48050-A0iMHU2#200503-200705

IVORY,TRIM0#

main62312-48050-B0iMHU2#200503-200705

GRAY,TRIM1#

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-48020-A0iMHU2#200503-200705

IVORY,TRIM0#

main62331-48020-B2iMHU2#200503-200705

GRAY,TRIM1#

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-48020-A0iMHU2#200503-200705

IVORY,TRIM0#

main62332-48020-B2iMHU2#200503-200705

GRAY,TRIM1#

62403AGARNISH SUB-ASSY, ROOF SIDE RAIL, RH

main62450-48010-A0iMHU2#200503-200705

IVORY,TRIM0#

main62450-48010-B3iMHU2#200503-200705

GRAY,TRIM1#

62404AGARNISH SUB-ASSY, ROOF SIDE RAIL, LH

main62460-48010-A0iMHU2#200503-200705

IVORY,TRIM0#

main62460-48010-B3iMHU2#200503-200705

GRAY,TRIM1#

62411GARNISH, CENTER PILLAR, RH

main62410-48060-A0iMHU2#200503-200705

IVORY,TRIM0#

main62410-48060-B0iMHU2#200503-200705

GRAY,TRIM1#

62412GARNISH, CENTER PILLAR, LH

main62420-48060-A0iMHU2#200503-200705

IVORY,TRIM0#

main62420-48060-B0iMHU2#200503-200705

GRAY,TRIM1#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-48010-A0iMHU2#200503-200705

IVORY,TRIM0#

main62413-48010-B3iMHU2#200503-200705

GRAY,TRIM1#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-48010-A0iMHU2#200503-200705

IVORY,TRIM0#

main62414-48010-B3iMHU2#200503-200705

GRAY,TRIM1#

62417FPAD, CENTER PILLAR GARNISH, RH

main62417-48060iMHU2#200503

62418APAD, CENTER PILLAR GARNISH, LH

main62418-48050iMHU2#200503

62470AGARNISH ASSY, ROOF SIDE, INNER RH

main62470-48070-A0iMHU2#..05S200503-200705

IVORY,TRIM0#

main62470-48070-B0iMHU2#..05S200503-200705

GRAY,TRIM1#

main62470-48080-A0iMHU2#..07S200503-200705

IVORY,TRIM0#

main62470-48080-B0iMHU2#..07S200503-200705

GRAY,TRIM1#

62480AGARNISH ASSY, ROOF SIDE, INNER LH

main62480-48060-A0iMHU2#..05S200503-200705

IVORY,TRIM0#

main62480-48060-B0iMHU2#..05S200503-200705

GRAY,TRIM1#

main62480-48070-A0iMHU2#..07S200503-200705

IVORY,TRIM0#

main62480-48070-B0iMHU2#..07S200503-200705

GRAY,TRIM1#

62485ARETAINER, ROOF SIDE INNER GARNISH

main62485-48010×6iMHU2#200503

62638AGARNISH, QUARTER PILLAR, RH

main62638-48020-A0supersedes 62638-48010-A0iMHU2#200608-200705

IVORY,TRIM0#

main62638-48020-B0supersedes 62638-48010-B3iMHU2#200608-200705

GRAY,TRIM1#

62639AGARNISH, QUARTER PILLAR, LH

main62639-48020-A0supersedes 62639-48010-A0iMHU2#200608-200705

IVORY,TRIM0#

main62639-48020-B0supersedes 62639-48010-B3iMHU2#200608-200705

GRAY,TRIM1#

66413CSPACER, SIDE RAIL, FRONT RH

main66413-48070iMHU2#200503-200608

66414BSPACER, SIDE RAIL, REAR RH

main66414-48050iMHU2#200503-200608

66423ASPACER, SIDE RAIL, FRONT LH

main66423-48070iMHU2#200503-200608

66424ASPACER, SIDE RAIL, REAR LH

main66424-48050iMHU2#200503-200608

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-48060supersedes 67911-48010iMHU2#200503

LIMITED(USA)

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67912-48060supersedes 67912-48010iMHU2#200503

LIMITED(USA)

67913PLATE, FRONT DOOR SCUFF, RH

main67913-48010-A0iMHU2#200503-200705

IVORY,TRIM0#

main67913-48010-B3iMHU2#200503-200705

GRAY,TRIM1#

67913ACLIP(FOR SCUFF PLATE)

main90467-10162×14iMHU2#200503

67914PLATE, FRONT DOOR SCUFF, LH

main67914-48010-A0iMHU2#200503-200705

IVORY,TRIM0#

main67914-48010-B3iMHU2#200503-200705

GRAY,TRIM1#

67915PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67915-48060supersedes 67915-48010iMHU2#200503

LIMITED(USA)

67916PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67916-48060supersedes 67916-48010iMHU2#200503

LIMITED(USA)

67917APLATE, REAR DOOR SCUFF, RH

main67917-48040-A0iMHU2#..05S200503-200705

IVORY,TRIM0#

main67917-48040-B0iMHU2#..05S200503-200705

GRAY,TRIM1#

main67917-48050-A0iMHU2#..07S200503-200705

IVORY,TRIM0#

main67917-48050-B0iMHU2#..07S200503-200705

GRAY,TRIM1#

67918APLATE, REAR DOOR SCUFF, LH

main67918-48040-A0iMHU2#..05S200503-200705

IVORY,TRIM0#

main67918-48040-B0iMHU2#..05S200503-200705

GRAY,TRIM1#

main67918-48050-A0iMHU2#..07S200503-200705

IVORY,TRIM0#

main67918-48050-B0iMHU2#..07S200503-200705

GRAY,TRIM1#

67918CCLIP(FOR REAR SCUFF PLATE)

main90467-10161×4iMHU2#..07S200503

67919ORNAMENT, DOOR SCUFF

main67919-48050×4iMHU2#200503

LIMITED(USA)

67923ACLAMP, DOOR SCUFF PLATE, NO.1

main67923-30030×12iMHU2#200503

9011906869

main90119-06869

9015950322

main90159-50322

9015960545

main90159-60545

9018905096

main90189-05096

9046710161

main90467-10161

9046710167

main90467-10167

9046710168

main90467-10168

9046805060

main90468-05060

91621J0612

main91621-J0612

9356755020

main93567-55020

56 parts on this diagram · 1 diagram in section
