SIDE MEMBER
52154CSUPPORT, REAR BUMPER, NO.1
52591BSEAL, REAR BUMPER SIDE, RH
53821BBRACKET, FRONT FENDER, REAR RH
53822BBRACKET, FRONT FENDER, REAR LH
58383DREINFORCEMENT, BODY LOWER BACK, NO.2 RH
58384BREINFORCEMENT, BODY LOWER BACK, NO.2 LH
58741BPROTECTOR, QUARTER PANEL, RH
CANADA SPEC
58742BPROTECTOR, QUARTER PANEL, LH
CANADA SPEC
61035BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH
61071CREINFORCEMENT SUB-ASSY, SEAT BELT ANCER, UPPER RH
61072CREINFORCEMENT SUB-ASSY, SEAT BELT ANCER, UPPER LH
61106AREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH
61107BREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER LH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61132PILLAR, FRONT BODY, UPPER OUTER LH
61141CEXTENSION, FRONT PILLAR, UPPER INNER RH
61142CEXTENSION, FRONT PILLAR, UPPER INNER LH
61145BGUSSET, FRONT BODY PILLAR, LOWER RH
61146BGUSSET, FRONT BODY PILLAR, LOWER LH
61161PILLAR, FRONT BODY, UPPER INNER RH
61162PILLAR, FRONT BODY, UPPER INNER LH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61231RAIL, ROOF SIDE, INNER RH
61232RAIL, ROOF SIDE, INNER LH
61255PLATE, ROOF SIDE RAIL, OUTER RH
61256APLATE, ROOF SIDE RAIL, OUTER LH
61311BPILLAR, CENTER BODY, OUTER RH
61312BPILLAR, CENTER BODY, OUTER LH
61343APILLAR, CENTER BODY, INNER RH
61344APILLAR, CENTER BODY, INNER LH
61411PANEL, ROCKER, OUTER RH
61412PANEL, ROCKER, OUTER LH
61427REINFORCEMENT, ROCKER PANEL, NO.5 RH
61428CREINFORCEMENT, ROCKER PANEL, NO.5 LH
61603CPANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH
61604DPANEL SUB-ASSY, QUARTER WHEEL HOUSE, LH
61611PANEL, QUARTER, RH
61613EPANEL, QUARTER, INNER RH
61614EPANEL, QUARTER, INNER LH
61621DTROUGH, BACK DOOR OPENING, RH
61622DTROUGH, BACK DOOR OPENING, LH
61627AEXTENSION, QUARTER PANEL, LOWER RH
61628AEXTENSION, QUARTER PANEL, LOWER LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61637EBRACKET, QUARTER WHEEL HOUSE
61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH
61642CGUSSET, QUARTER WHEEL HOUSE, FRONT LH
61643GUSSET, QUARTER WHEEL HOUSE CENTER, RH
61644GUSSET, QUARTER WHEEL HOUSE, CENTER LH
61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH
61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH
61655BGUSSET, QUARTER WHEEL HOUSE, INNER RH
61656AGUSSET, QUARTER WHEEL HOUSE, INNER LH
61667DSEAL, QUARTER PANEL
61707PANEL SUB-ASSY, QUARTER, INNER RH
61708PANEL SUB-ASSY, QUARTER, INNER LH
61711PANEL, ROOF SIDE, OUTER RH
61712PANEL, ROOF SIDE, OUTER LH
61713BREINFORCE, ROOF SIDE, OUTER RH
61714BREINFORCE, ROOF SIDE, OUTER LH
61715CBRACKET, ROOF SIDE, RH
NO.1,NO.2
NO.1,NO.2
NO.3
NO.4
61716CBRACKET, ROOF SIDE, LH
NO.1,NO.2
NO.1,NO.2
NO.3
NO.4
61723AREINFORCEMENT, QUARTER WINDOW OPENING, RH NO.1
61724AREINFORCEMENT, QUARTER WINDOW OPENING, LH NO.1
61731BPANEL, ROOF SIDE, INNER RH
61732BPANEL, ROOF SIDE, INNER LH
61735APANEL, ROOF SIDE, INNER REAR RH
61736APANEL, ROOF SIDE, INNER REAR LH
61761AREINFORCE, SEAT BELT ANCHOR, NO.1 UPPER RH
61762AREINFORCE, SEAT BELT ANCHOR, NO.1 UPPER LH
61764BREINFORCEMENT, SEAT BELT ANCHOR, NO.2 RH
61765AREINFORCEMENT, SEAT BELT ANCHOR, NO.2 LH
61822DPLATE, NOISE CONTROL, LH
61824PLATE, NOISE CONTROL, NO.1
61824DPLATE, NOISE CONTROL, NO.1
61825APLATE, NOISE CONTROL, NO.2
61826APLATE, NOISE CONTROL, NO.3
61827APLATE, NOISE CONTROL, NO.4
63148GREINFORCEMENT, ROOF PANEL SIDE
63149JREINFORCEMENT, ROOF PANEL SIDE, LH
63175CREINFORCEMENT, BACK DOOR HINGE FEMALE, RH
63176CREINFORCEMENT, BACK DOOR HINGE FEMALE, LH
65685DBRACE, WHEEL HOUSE, RH
65686ABRACE, WHEEL HOUSE, LH
66383BRACKET, ROPE HOOK BAR, NO.1 RH
66383ABRACKET, ROPE HOOK BAR, NO.1 LH
67388APROTECTOR, BACK DOOR EDGE
75998GSTRIPE, QUARTER, LOWER RH
75999FSTRIPE, QUARTER, LOWER LH
9011906442
main90119-06442
9011906830
main90119-06830
9011906869
main90119-06869
9015960364
main90159-60364
9017806011
main90178-06011
9017908056
main90179-08056
9017910015
main90179-10015
9018906013
main90189-06013

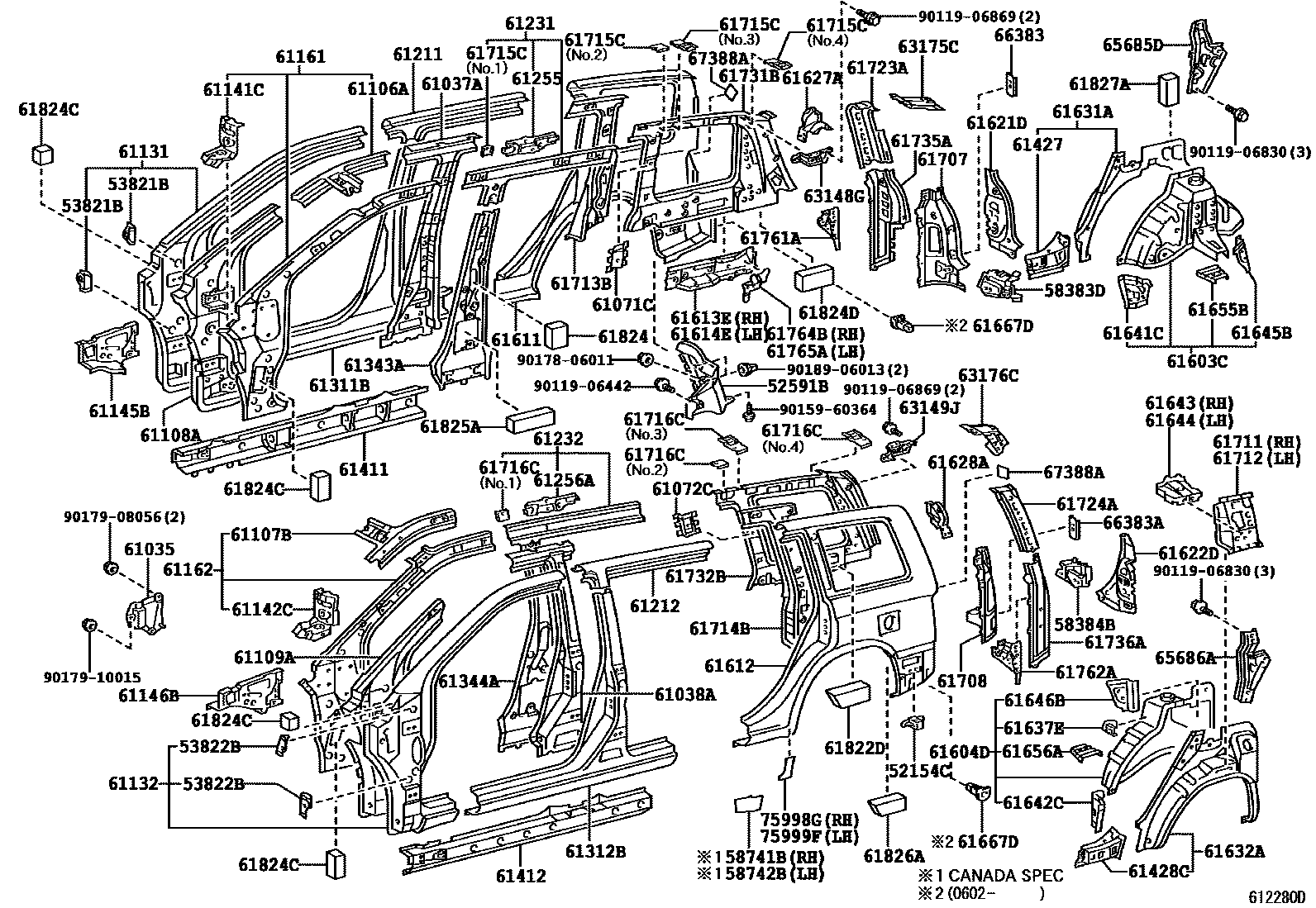

105 parts on this diagram · 1 diagram in section
