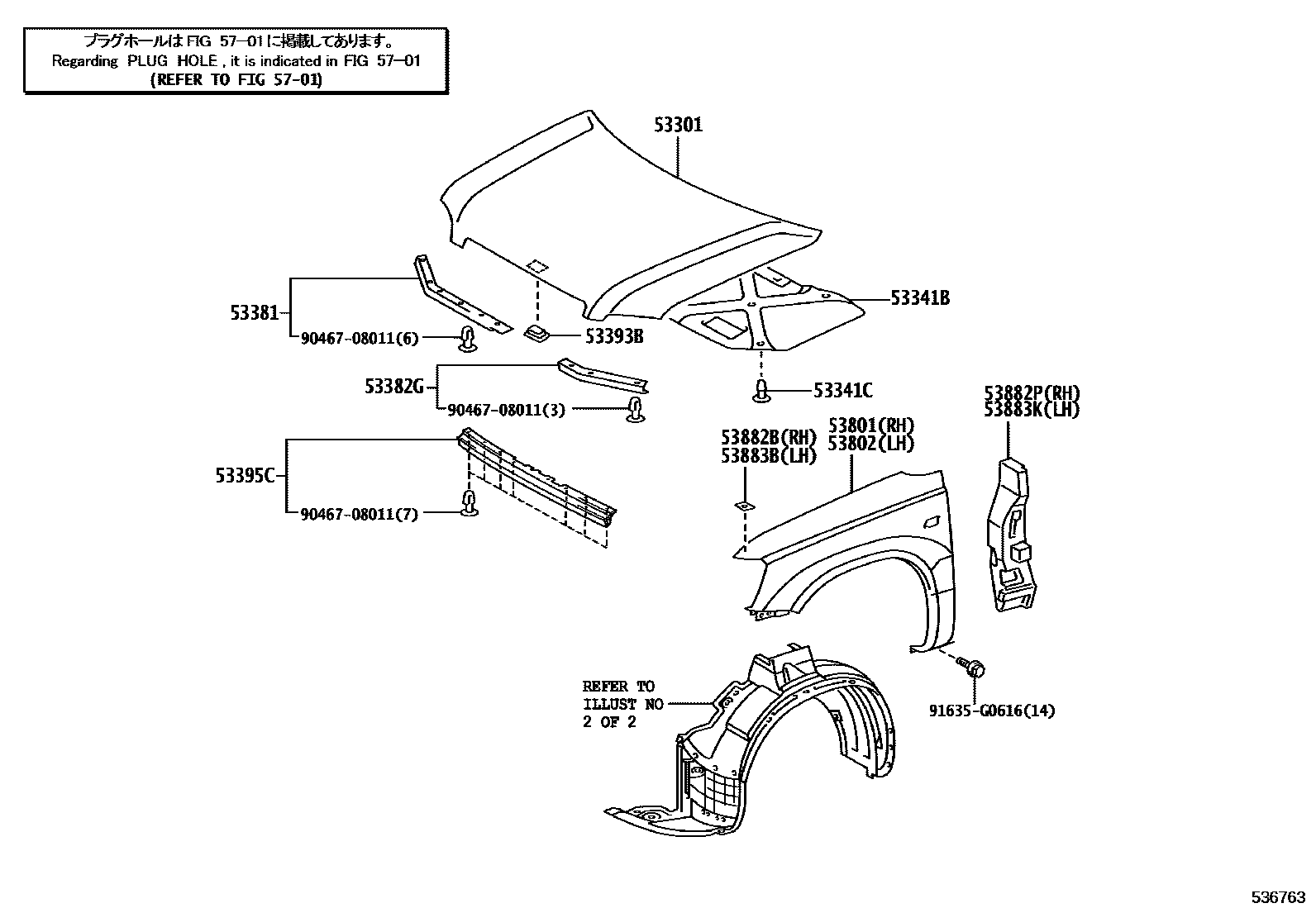

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53301HOOD SUB-ASSY

main53301-48090iMHU2#200503-200705

53341BINSULATOR, HOOD

main53341-48020iMHU2#200503

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050×8iMHU2#200503

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-48040iMHU2#200503

53382GSEAL, HOOD TO RADIATOR SUPPORT, LH

main53382-48040iMHU2#200503

53393BPROTECTOR, HOOD, FRONT

main53393-48020iMHU2#200503

53395CSEAL, HOOD TO RADIATOR GRILLE

main53395-48010iMHU2#200503

53801FENDER SUB-ASSY, FRONT RH

main53801-48080iMHU2#200503-200705

53802FENDER SUB-ASSY, FRONT LH

main53802-48070iMHU2#200503-200705

53882BSEAL, FRONT FENDER, RH

main53882-16030×3iMHU2#200503-200705

53882PSEAL, FRONT FENDER, RH

main53882-48010iMHU2#200503

53883BSEAL, FRONT FENDER, LH

main53882-16030×3iMHU2#200503-200705

53883KSEAL, FRONT FENDER, LH

main53883-48010iMHU2#200503

5701HOLE PLUG

→ Go to FIG 57-01

9046708011

main90467-08011

91635G0616

main91635-G0616

16 parts on this diagram · 2 diagrams in section
