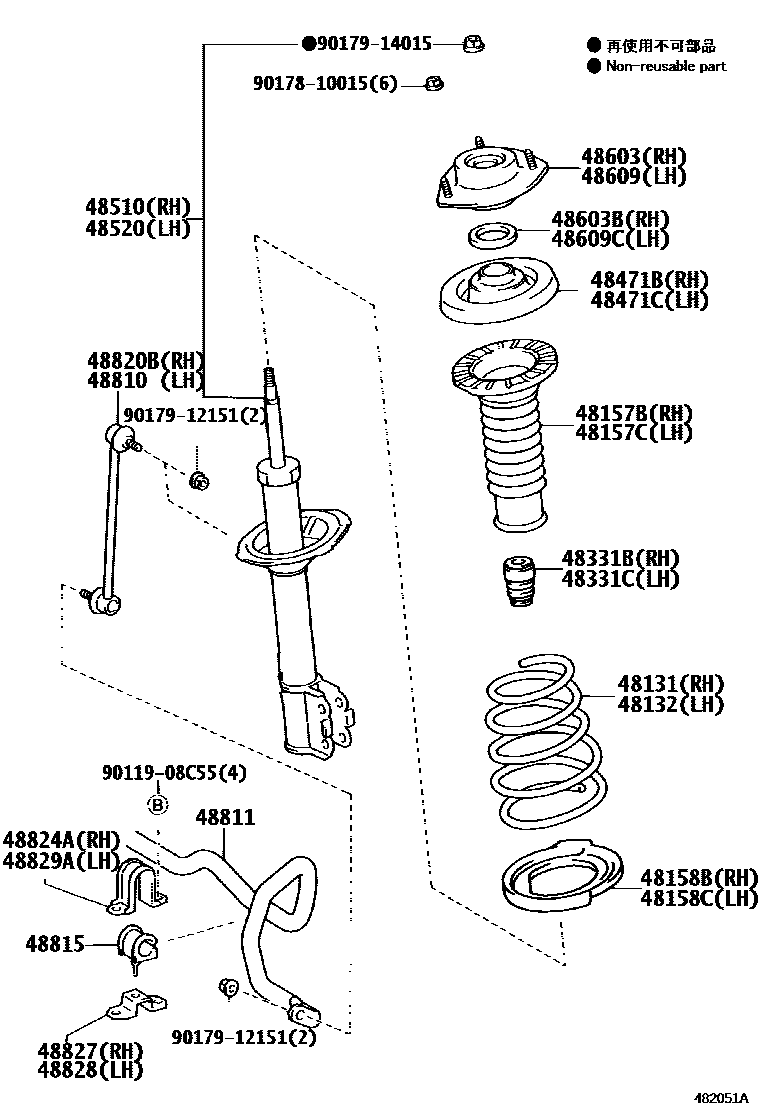

FRONT SPRING & SHOCK ABSORBER

48131SPRING, FRONT COIL, RH

main48131-48530iMHU2#200503

48132SPRING, FRONT COIL, LH

main48131-48530iMHU2#200503

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-48030iMHU2#200503

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-48030iMHU2#200503

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-48020iMHU2#200503

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-48020iMHU2#200503

48331BBUMPER, FRONT SPRING, RH

main48331-48020iMHU2#200503

48331CBUMPER, FRONT SPRING, LH

main48331-48020iMHU2#200503

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48471-41011iMHU2#200503

sub48471-41012

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48471-41011iMHU2#200503

sub48471-41012

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-49885iMHU2#200503

MARK 48510-48180

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-80020iMHU2#200503

MARK 48520-48180

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-48020iMHU2#200503

48603BBEARING(FOR FRONT SUSPENSION SUPPORT RH)

main90903-63014iMHU2#200503

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-48020iMHU2#200503

48609CBEARING(FOR FRONT SUSPENSION SUPPORT LH)

main90903-63014iMHU2#200503

48810LINK ASSY, FRONT STABILIZER, LH

main48820-28050iMHU2#200503

48811BAR, STABILIZER, FRONT

main48811-48060iMHU2#200503

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-48040×2iMHU2#200503

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-28050iMHU2#200503

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-28180iMHU2#200503

48827BRACKET, FRONT STABILIZER, NO.2 RH

main48827-48010iMHU2#200503

48828BRACKET, FRONT STABILIZER, NO.2 LH

main48827-48010iMHU2#200503

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-28180iMHU2#200503

9011908C55

main90119-08C55

9017810015

main90178-10015

9017912151

main90179-12151

9017914015

main90179-14015

28 parts on this diagram · 1 diagram in section
