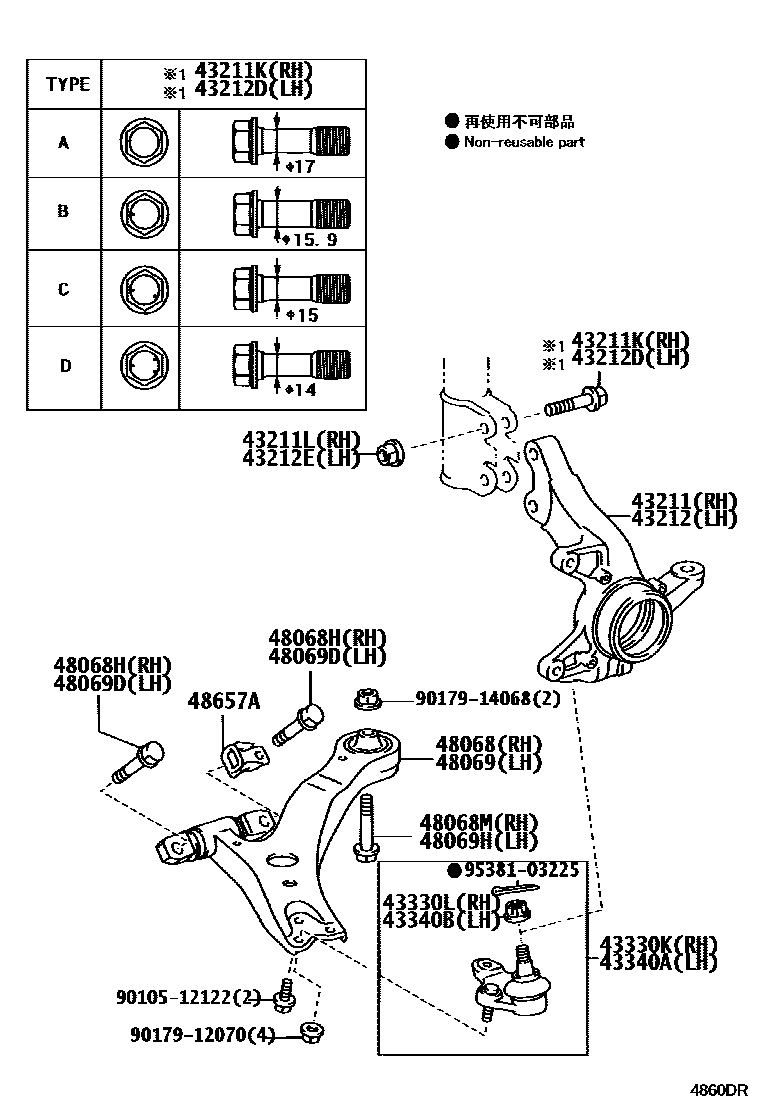

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-58020iMHU2#200503

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-17012×2iMHU2#200503-200705

OD=17,TYPE A:REFER ILLUST.

main90105-17013iMHU2#200503-200705

OD=15.9,TYPE B:REFER ILLUST.

main90105-17014iMHU2#200503-200705

OD=15,TYPE C:REFER ILLUST.

main90105-17015iMHU2#200503-200705

OD=14,TYPE D:REFER ILLUST.

43211LNUT (FOR STEERING KNUCKLE RH)

main90178-17002×2iMHU2#200503

43212KNUCKLE, STEERING, LH

main43212-58020iMHU2#200503

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-17012×2iMHU2#200503-200705

OD=17,TYPE A:REFER ILLUST.

main90105-17013iMHU2#200503-200705

OD=15.9,TYPE B:REFER ILLUST.

main90105-17014iMHU2#200503-200705

OD=15,TYPE C:REFER ILLUST.

main90105-17015iMHU2#200503-200705

OD=14,TYPE D:REFER ILLUST.

43212ENUT (FOR STEERING KNUCKLE LH)

main90178-17002×2iMHU2#200503

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-29405iMHU2#200503

sub43330-29615

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14003iMHU2#200503

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43340-29175iMHU2#200503

sub43340-29215

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14003iMHU2#200503

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-48020iMHU2#200503

sub48068-58010

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90105-16082×2iMHU2#200503

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90119-14116iMHU2#200503

sub90119-14142

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-48020iMHU2#200503

sub48069-58010

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90105-16082×2iMHU2#200503

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90119-14116iMHU2#200503

sub90119-14142

48657ASTOPPER, FRONT LOWER ARM BUSH

main48657-28010×2iMHU2#200503

9010512122

main90105-12122

9017912070

main90179-12070

9017914068

main90179-14068

9538103225

main95381-03225

21 parts on this diagram · 1 diagram in section
