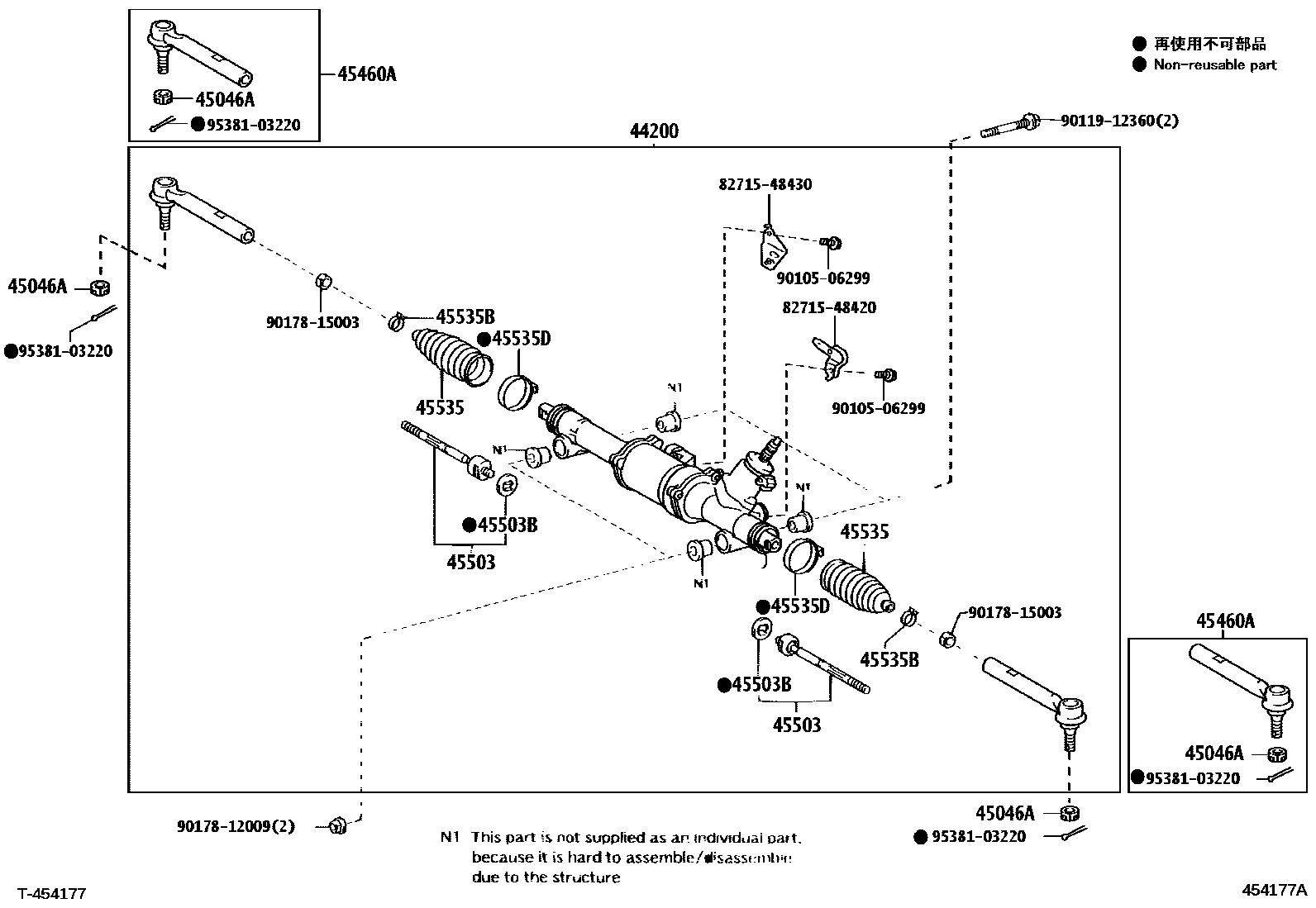

FRONT STEERING GEAR & LINK

44200LINK ASSY, POWER STEERING

main44200-48130iMHU2#200503-200601

main44200-48131iMHU2#200602-200608

main44200-48132iMHU2#200609

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iMHU2#200503

45460AROD ASSY, TIE

main45460-29435×2iMHU2#200503-200705

45503END SUB-ASSY, STEERING RACK

main45503-49135×2iMHU2#200503-200705

45503BWASHER, CLAW(FOR STEERING RACK END)

main90214-14007×2iMHU2#200503

OD=38

45535BOOT, STEERING RACK, NO.1

main45535-30030×2iMHU2#200503

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19019×2iMHU2#200503

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90460-55016×2iMHU2#200503

8271548420BRACKET,WIRING HARNESS CLAMP

main82715-48420

8271548430BRACKET,WIRING HARNESS CLAMP

main82715-48430

9010506299

main90105-06299

9011912360

main90119-12360

9017812009

main90178-12009

9017815003

main90178-15003

9538103220

main95381-03220

15 parts on this diagram · 1 diagram in section
