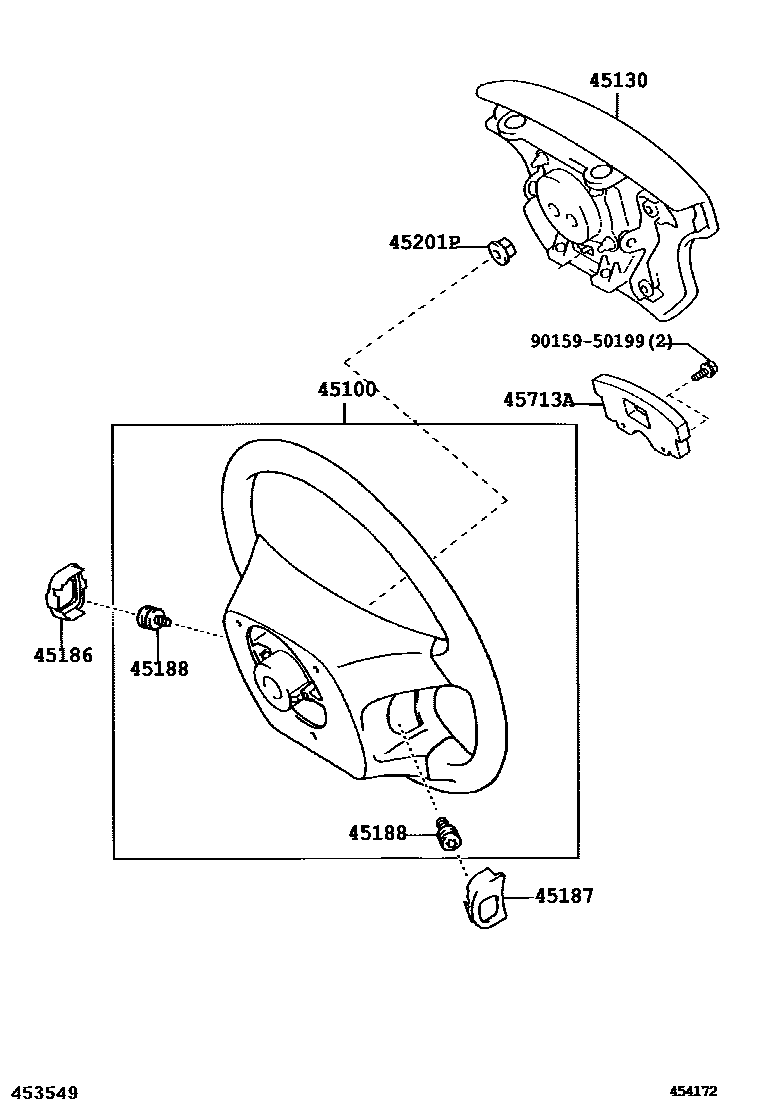

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-48360-B2supersedes 45100-28340-B2i200503-200705

4-SPOKE,LEATHER,LEATHER SEAT,SADDLE GRAY,TRIM1#; 4-SPOKE,LEATHER,LIMITED(USA)&AUDIO-AM/FM/CASSETTE/CD 8SPEAKER(JBL),SADDLE GRAY,TRIM1#; 4-SPOKE,LEATHER,LIMITED(USA)&AUDIO-AM/FM/CASSETTE/CD-CHANGER 8SPEAKER(JBL),SADDLEGRAY,TRIM1#; 4-SPOKE,LEATHER,LIMITED(USA)&LEATHER SEAT&AUDIO-AM/FM/CASSETTE/CD 8SPEAKER(JBL),SADDLE GRAY,TRIM1#; 4-SPOKE,LEATHER,LIMITED(USA)&LEATHER SEAT&AUDIO-AM/FM/CASSETTE/CD-CHANGER 8SPEAKER(JBL),SADDLE GRAY,TRIM1#

main45100-48360-E1supersedes 45100-28340-E0i200503-200705

4-SPOKE,LEATHER,LEATHER SEAT,SANDAL WOOD,TRIM0#; 4-SPOKE,LEATHER,LIMITED(USA)&AUDIO-AM/FM/CASSETTE/CD 8SPEAKER(JBL),SANDAL WOOD,TRIM0#; 4-SPOKE,LEATHER,LIMITED(USA)&AUDIO-AM/FM/CASSETTE/CD-CHANGER 8SPEAKER(JBL),SANDALWOOD,TRIM0#; 4-SPOKE,LEATHER,LIMITED(USA)&LEATHER SEAT&AUDIO-AM/FM/CASSETTE/CD 8SPEAKER(JBL),SANDAL WOOD,TRIM0#; 4-SPOKE,LEATHER,LIMITED(USA)&LEATHER SEAT&AUDIO-AM/FM/CASSETTE/CD-CHANGER 8SPEAKER(JBL),SANDAL WOOD,TRIM0#

45130BUTTON ASSY, HORN

main45130-48180-B0supersedes 45130-48170-B0i200503-200705

AUDIO-AM/FM/CASSETTE/CD 8SPEAKER(JBL),SADDLE GRAY,TRIM1#; AUDIO-AM/FM/CASSETTE/CD-CHANGER 8SPEAKER(JBL),SADDLE GRAY,TRIM1#

main45130-48180-E0supersedes 45130-48170-E0i200503-200705

AUDIO-AM/FM/CASSETTE/CD 8SPEAKER(JBL),SANDAL WOOD,TRIM0#; AUDIO-AM/FM/CASSETTE/CD-CHANGER 8SPEAKER(JBL),SANDAL WOOD,TRIM0#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-58020-B1i200503-200705

SADDLE GRAY,TRIM1#

main45186-58020-E1i200503-200705

SANDAL WOOD,TRIM0#

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-58010-B1i200503-200705

SADDLE GRAY,TRIM1#

main45187-58010-E1i200503-200705

SANDAL WOOD,TRIM0#

45188SCREW, STEERING WHEEL PAD ATTACHING

main45188-60010×2i200503

L=18

45201PNUT, STEERING WHEEL SET

main90179-12071i200503

45713ADAMPER, STEERING SHAKE

main45713-48110i200503

9015950199

main90159-50199

8 parts on this diagram · 1 diagram in section
