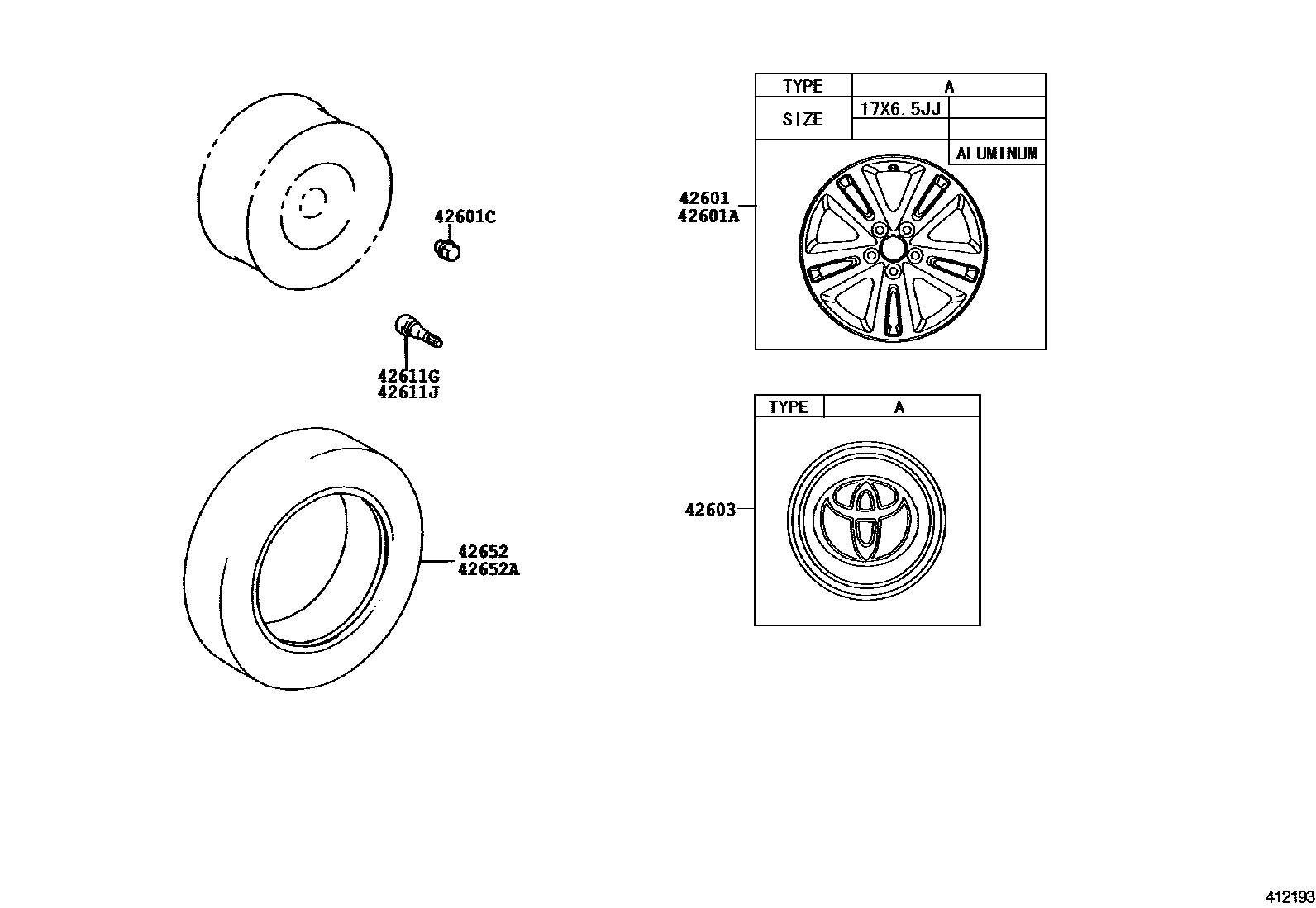

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42601WHEEL, DISC

main42611-48320iMHU2#200503

17X6.5JJ, #,TYPE A:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-48320iMHU2#200503

17X6.5JJ, #,TYPE A:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01033iMHU2#200503

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-33090iMHU2#200503

*ALU,TYPE A:REFER ILLUST.

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009iMHU2#200503

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iMHU2#200503

42652TIRE

main42652-0E030iMHU2#200503

225/65R17,MICHELIN

main42652-48410iMHU2#200503

225/65R17,GOODYEAR

42652ATIRE (FOR SPARE)

main42652-0E030iMHU2#200503

225/65R17,MICHELIN

main42652-48410iMHU2#200503

225/65R17,GOODYEAR

8 parts on this diagram · 2 diagrams in section
