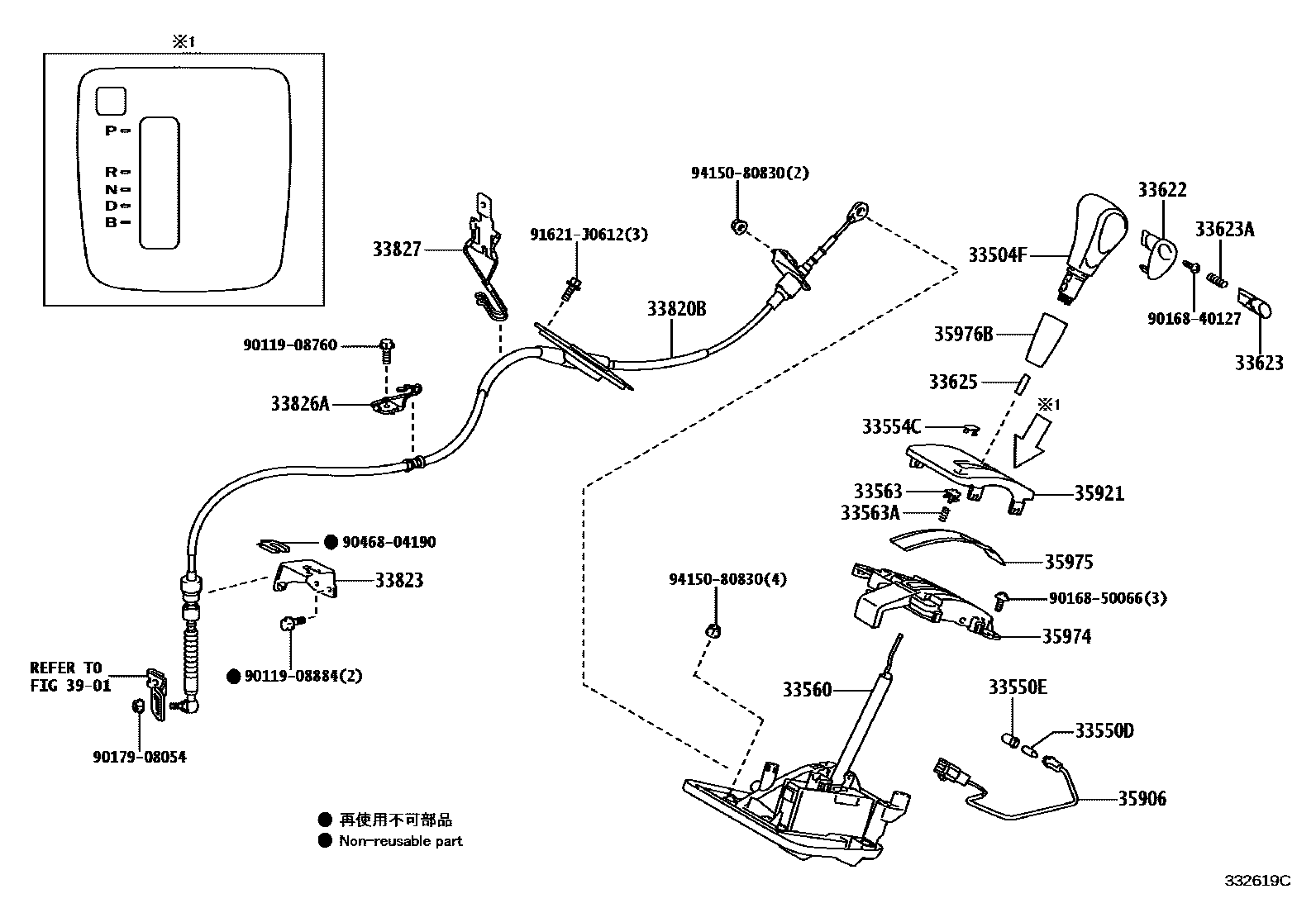

SHIFT LEVER & RETAINER
33504FKNOB SUB-ASSY, SHIFT LEVER
SADDLE GRAY,TRIM1#
SANDAL WOOD,TRIM0#
33550DBULB, POSITION INDICATOR LAMP
12V 1.2W W/O SOCKET
33550ECAP, POSITION INDICATOR LAMP
33554CCOVER, SHIFT LOCK RELEASE BUTTON
33560UNIT ASSY, SHIFT LOCK CONTROL
33563BUTTON, SHIFT LOCK RELEASE
33563ASPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON)
33622COVER, SHIFT LEVER KNOB, NO.1
SADDLE GRAY,TRIM1#
SANDAL WOOD,TRIM0#
33623BUTTON, SHIFT LEVER KNOB
SADDLE GRAY,TRIM1#
SANDAL WOOD,TRIM0#
33623ASPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)
33625SLEEVE, SHIFT LEVER KNOB
33820BCABLE ASSY, TRANSMISSION CONTROL
33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33826ABRACKET, TRANSMISSION CONTROL CABLE, NO.2
33827BRACKET, TRANSMISSION CONTROL CABLE, NO.3
35906WIRE SUB-ASSY, INDICATOR LAMP
35921PLATE, CONTROL POSITION INDICATOR
35974HOUSING, POSITION INDICATOR, LOWER
35975COVER, SLIDE (FOR POSITION INDICATOR)
35976BCOVER, SHIFT LEVER KNOB (FOR FLOOR SHIFT)
SADDLE GRAY,TRIM1#
SANDAL WOOD,TRIM0#
3901TRANSAXLE ASSY(HEV OR BEV OR FCEV)
9011908760
main90119-08760
9011908884
main90119-08884
9016840127
main90168-40127
9016850066
main90168-50066
9017908054
main90179-08054
9046804190
main90468-04190
91621J0612
main91621-J0612
9415080830
main94150-80830
29 parts on this diagram · 1 diagram in section
