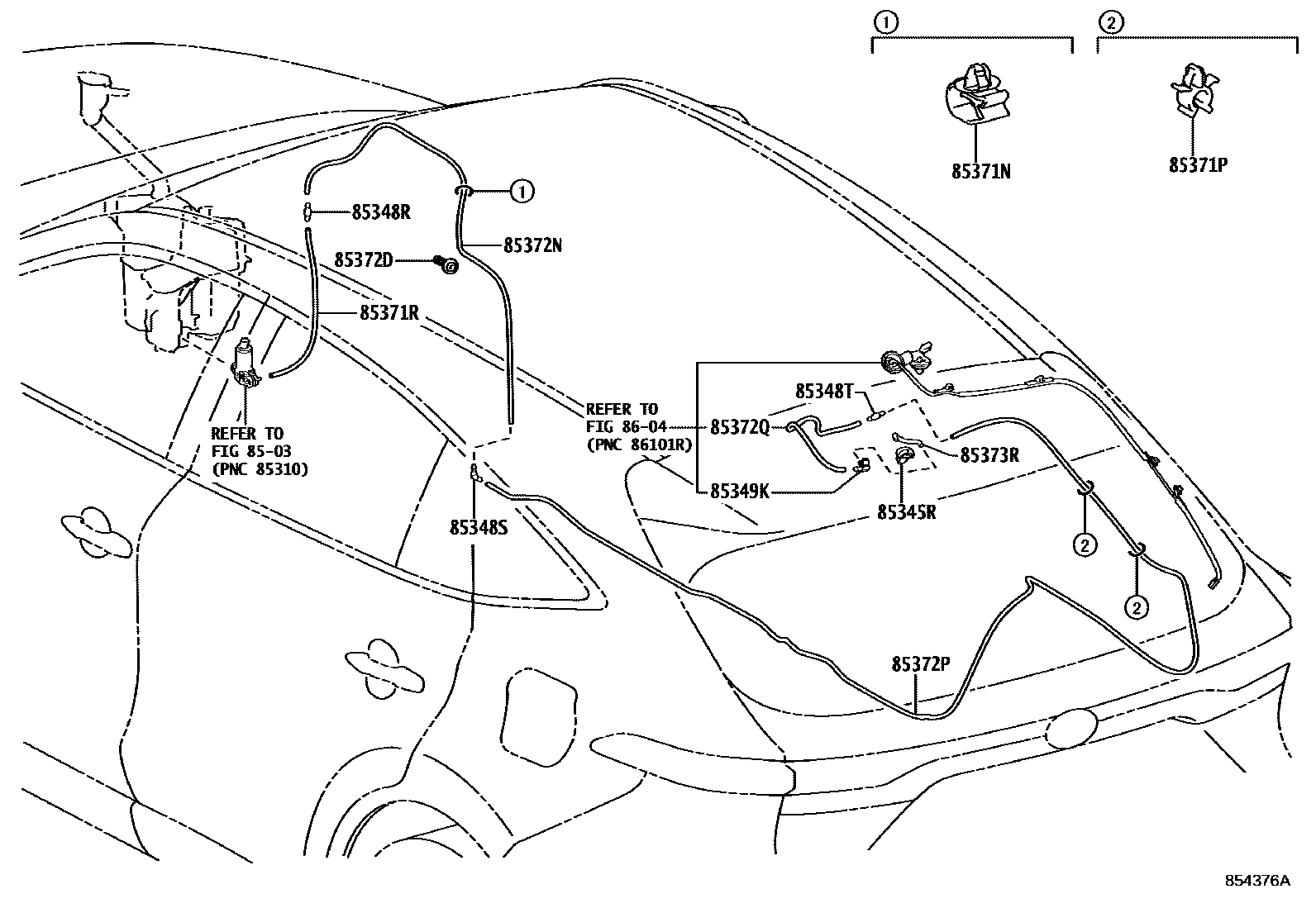

REAR WASHER
8503WINDSHIELD WASHER
85345RNOZZLE, REAR WASHER
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85349KJOINT, REAR WASHER ELBOW, NO.2
85371NCLAMP, REAR WASHER HOSE
85371PCLAMP, REAR WASHER HOSE, NO.2
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
L=400
85372DGROMMET, REAR WASHER HOSE
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
L=1320; L=1320,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR & WASHER)
L=1320; L=1320,BACK MONITOR-WITH(*PVM & WASHER)
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
L=4035; L=4035,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR & WASHER)
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
L=495; L=495,BACK MONITOR-WITH(*PVM & WASHER)
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
L=90
L=85,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR & WASHER)
8604ANTENNA
15 parts on this diagram · 2 diagrams in section
