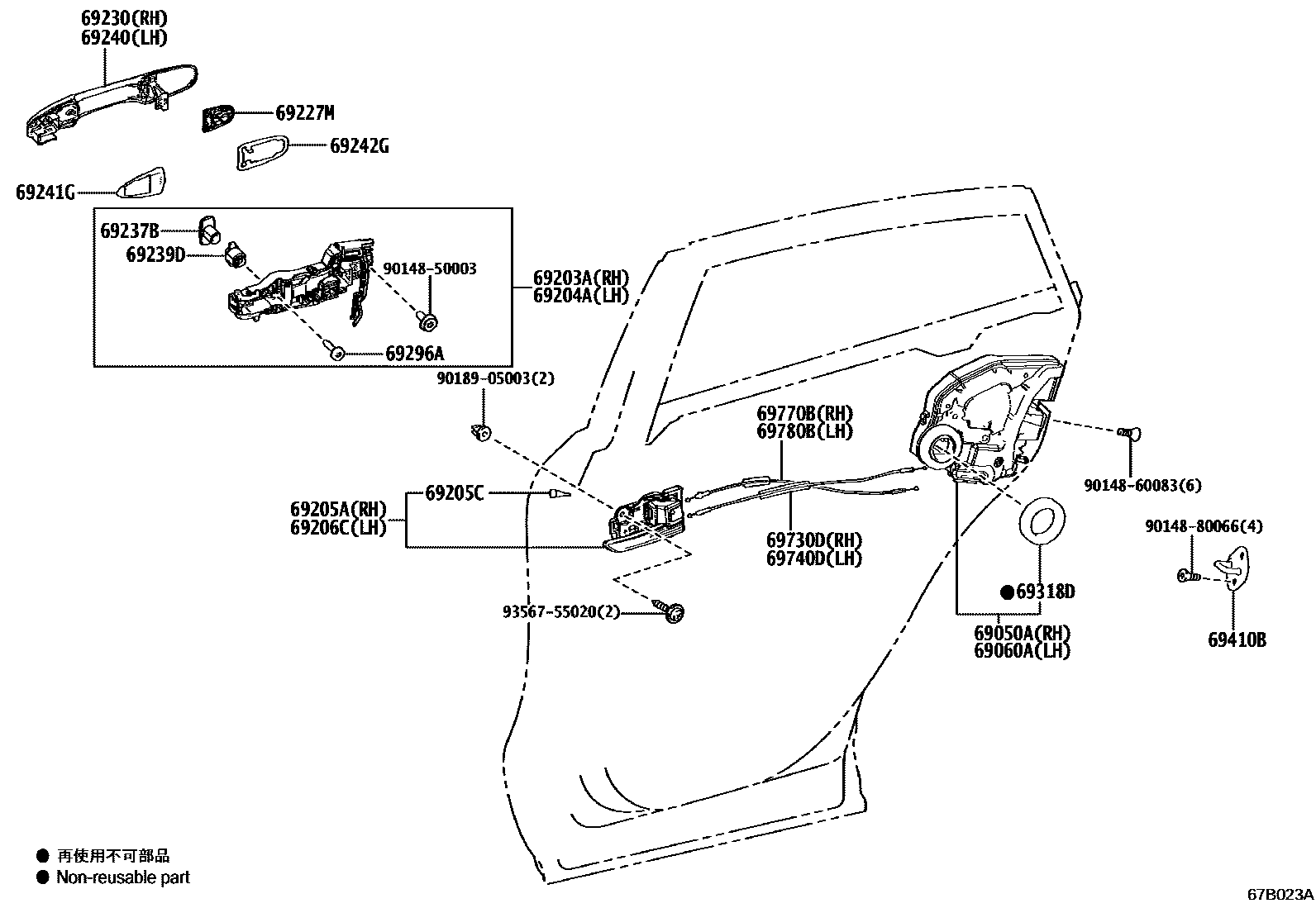

REAR DOOR LOCK & HANDLE
69050ALOCK ASSY, REAR DOOR W/MOTOR, RH
69060ALOCK ASSY, REAR DOOR W/MOTOR, LH
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#
69227MCOVER, REAR DOOR OUTSIDE HANDLE
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
WHITE PEARL CS.,070
PLATINUM WHITE PEARL MC.,089
SLATE GRAY ME.,1K4 ,1K9
BLACK,089 ,202 ,3T3; BLACK,202
PRECIOUS BLACK,219
RED MC.,3T3
STEEL BLONDE ME.,4X1
DK. BLUE MC.,8X8
WHITE PEARL CS.,070
PLATINUM WHITE PEARL MC.,089
BLACK,202
PRECIOUS BLACK,219
RED MC.,3T3
STEEL BLONDE,4X1
DK. BLUE MC.,8X8
SLATE GRAY ME.,1K4 ,1K9
69237BNUT, REAR DOOR HANDLE
69239DBUSH, REAR DOOR HANDLE
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
WHITE PEARL CS.,070
PLATINUM WHITE PEARL MC.,089
SLATE GRAY ME.,1K4 ,1K9
BLACK,089 ,202 ,3T3; BLACK,202
PRECIOUS BLACK,219
RED MC.,3T3
STEEL BLONDE ME.,4X1
DK. BLUE MC.,8X8
WHITE PEARL CS.,070
PLATINUM WHITE PEARL MC.,089
BLACK,202
PRECIOUS BLACK,219
RED MC.,3T3
STEEL BLONDE,4X1
DK. BLUE MC.,8X8
SLATE GRAY ME.,1K4 ,1K9
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69296ASCREW, DOOR INSIDE HANDLE
69318DSEAL, DOOR LOCK WIRING HARNESS
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
9014850003
main90148-50003
9014860083
main90148-60083
9014880066
main90148-80066
9018905003
main90189-05003
9356755020
main93567-55020
26 parts on this diagram · 1 diagram in section
