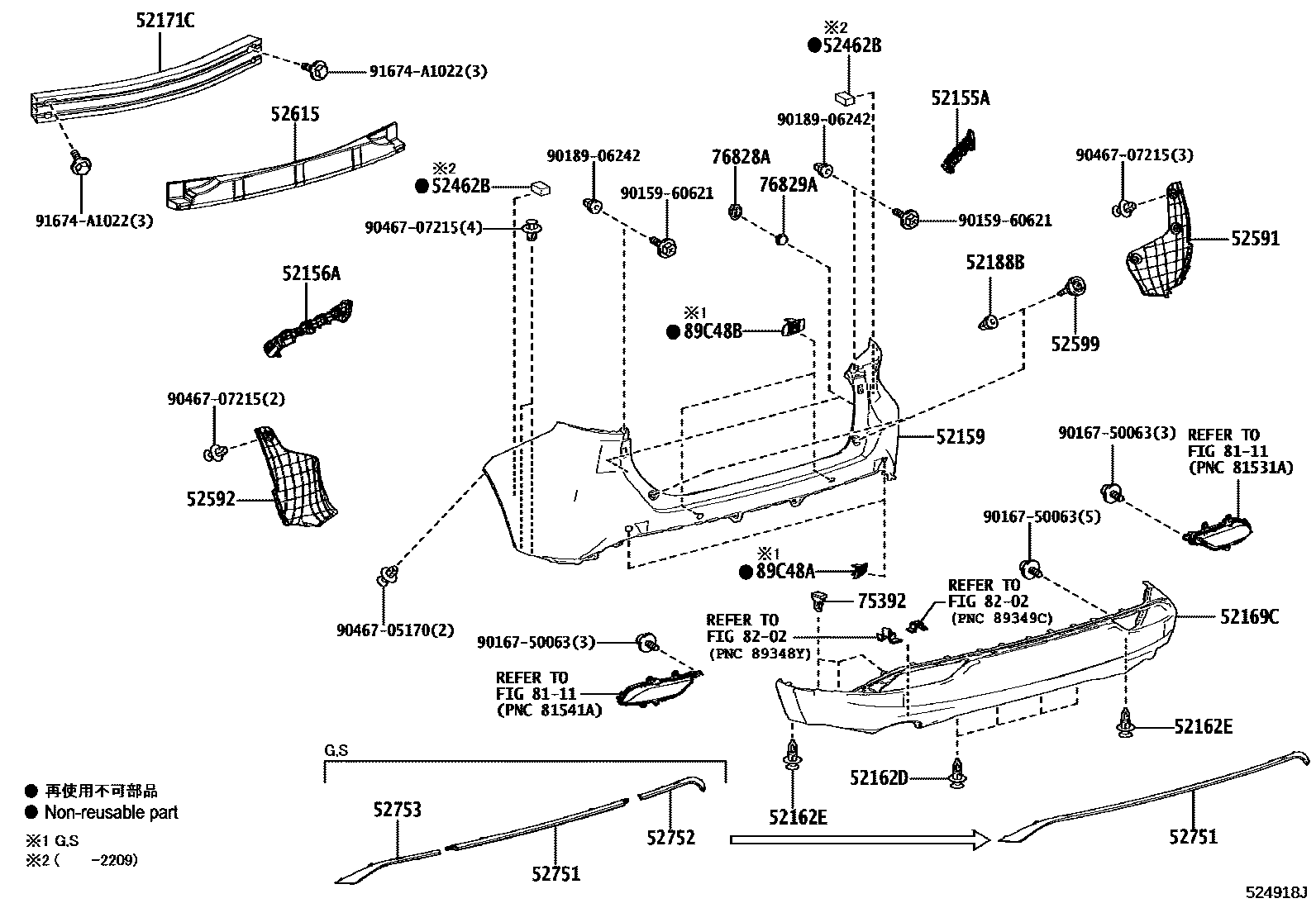

REAR BUMPER & BUMPER STAY
52155ASUPPORT, REAR BUMPER SIDE, RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52159COVER, REAR BUMPER
PAINT REQ.
PAINT REQ.
52162DPIECE, REAR BUMPER
52162EPIECE, REAR BUMPER
52169CCOVER, REAR BUMPER, LOWER
NO PAINT REQ.
52171CREINFORCEMENT, REAR BUMPER
52188BSPACER, REAR BUMPER MOUNTING
52462BPAD, REAR BUMPER
52591SEAL, REAR BUMPER SIDE, RH
52592SEAL, REAR BUMPER SIDE, LH
52599STOPPER, REAR BUMPER, UPPER
52615ABSORBER, REAR BUMPER ENERGY
52751MOULDING, REAR BUMPER
52752MOULDING, REAR BUMPER SIDE, RH
52753MOULDING, REAR BUMPER SIDE, LH
75392RETAINER, OUTSIDE MOULDING
76828ARETAINER, BACK DOOR GARNISH, NO.3
76829ARETAINER, BACK DOOR GARNISH
8111REAR COMBINATION LAMP
8202WIRING & CLAMP
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
WHITE PEARL CS.,070,RH
PLATINUM WHITE PEARL MC.,089,RH
SLATE GRAY ME.,1K9,RH
SLATE GRAY ME.,1K4 ,1K9,RH
BLACK,202,RH
PRECIOUS BLACK,219,RH
RED MC.,3T3,RH
STEEL BLONDE ME.,4X1,RH
DK. BLUE MC.,8X8,RH
WHITE PEARL CS.,070,LH
PLATINUM WHITE PEARL MC.,089,LH
SLATE GRAY ME.,1K9,LH
SLATE GRAY ME.,1K4 ,1K9,LH
BLACK,202,LH
PRECIOUS BLACK,219,LH
RED MC.,3T3,LH
STEEL BLONDE ME.,4X1,LH
DK. BLUE MC.,8X8,LH
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
WHITE PEARL CS.,070
PLATINUM WHITE PEARL MC.,089
SLATE GRAY ME.,1K4 ,1K9
SLATE GRAY ME.,1K9
BLACK,202
PRECIOUS BLACK,219
RED MC.,3T3
STEEL BLONDE ME.,4X1
DK. BLUE MC.,8X8
9015960621
main90159-60621
9016750063
main90167-50063
9018906242
main90189-06242
9046705170
main90467-05170
9046707215
main90467-07215
91674A1022
main91674-A1022
29 parts on this diagram · 1 diagram in section
