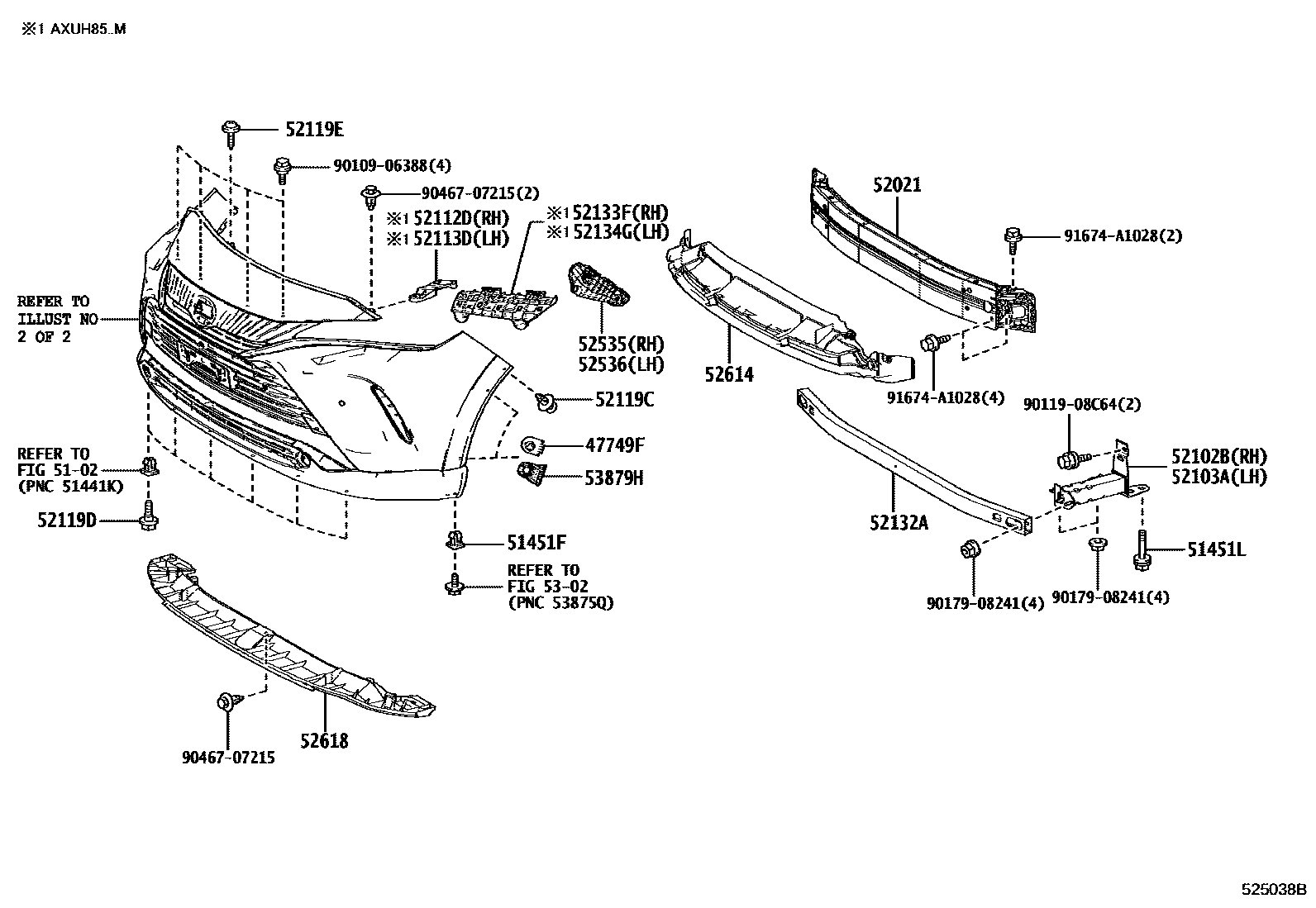

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1NIGHT SHADE PACKAGE

47749FCLIP, PIN HOLD

main47749-33030iAXUH85202007-202408

5102

51451FGROMMET, NO.1

main90189-06237iAXUH85202007-202408

51451LBOLT, NO.1

main90119-16029iAXUH85202007-202408

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-42200iAXUH85..USA202007-202408

main52021-48110iAXUH85..USA202007-202112

52102BEXTENSION SUB-ASSY, FRONT BUMPER, RH

main52102-42100iAXUH85202007-202408

52103AEXTENSION SUB-ASSY, FRONT BUMPER, LH

main52103-42100iAXUH85202007-202408

52112DEXTENSION, FRONT BUMPER, RH

main52112-48070iAXUH85..M202007-202408

NO PAINT REQ.

52113DEXTENSION, FRONT BUMPER, LH

main52113-48050iAXUH85202007-202408

NO PAINT REQ.

52119CCLIP, FRONT BUMPER COVER

main90467-05170iAXUH85202007-202408

52119DSCREW, NO.1

main90159-60477iAXUH85202007-202408

52119ESCREW, NO.2

main90167-50063iAXUH85202007-202408

52132AREINFORCEMENT, FRONT BUMPER, NO.2

main52132-42070iAXUH85202007-202408

52133FBRACKET, FRONT BUMPER, RH

main52133-48090iAXUH85202007-202408

52134GBRACKET, FRONT BUMPER, LH

main52134-48090iAXUH85202007-202408

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-48090iAXUH85202007-202408

sub52535-48091

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-48080iAXUH85202007-202408

sub52536-48081

52614ABSORBER, FRONT BUMPER ENERGY, NO.2

main52614-48070iAXUH85202007-202204

sub52614-48071

main52614-48071iAXUH85202204-202408

52618ABSORBER, FRONT BUMPER, LOWER

main52618-48050iAXUH85202007-202408

5302

53879HRETAINER, FRONT FENDER LINER

main53879-33030iAXUH85202007-202408

9010906388

main90109-06388

9011908C64

main90119-08C64

9017908241

main90179-08241

9046707215

main90467-07215

91674A1028

main91674-A1028

26 parts on this diagram · 3 diagrams in section
