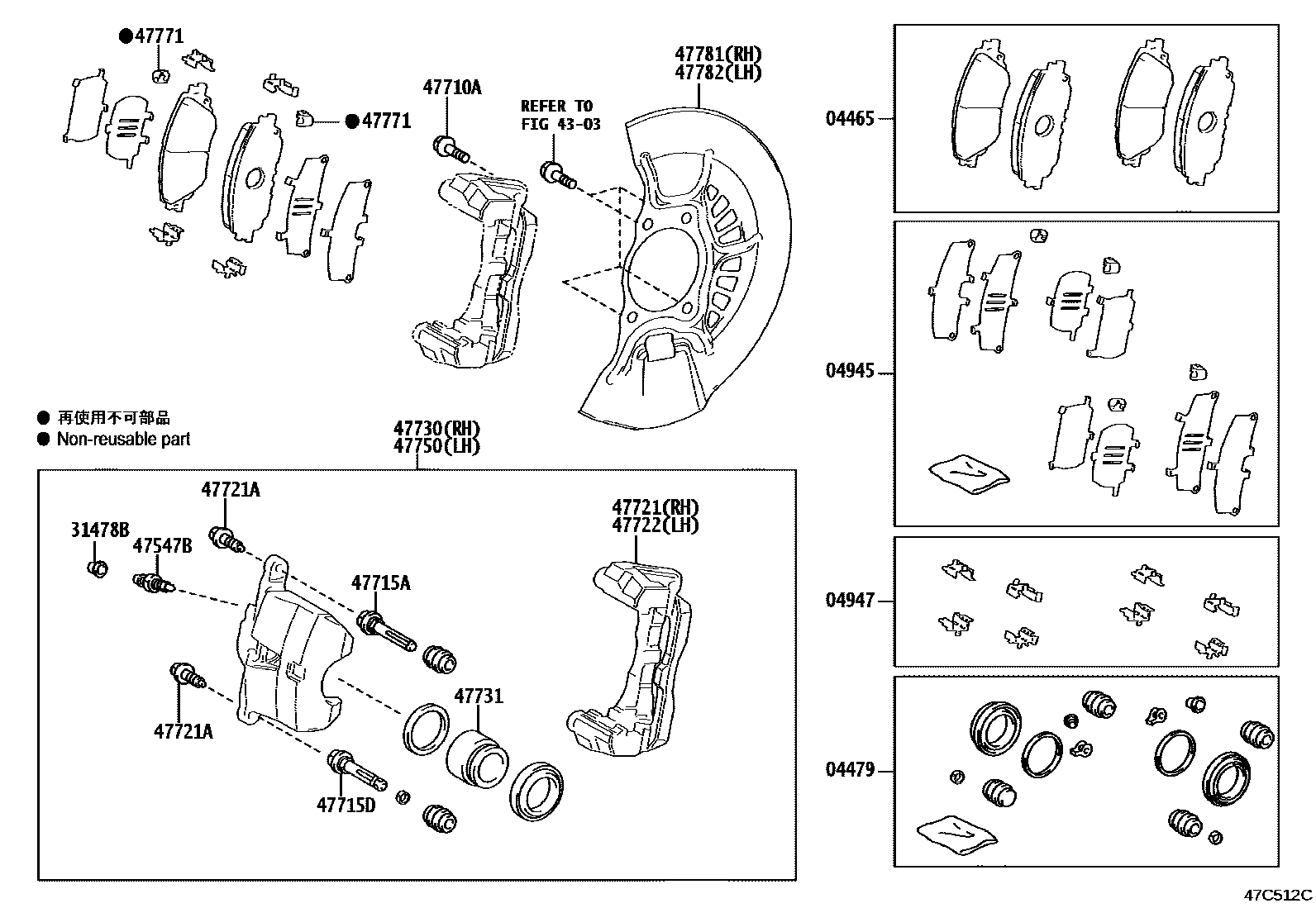

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-33480iAXUH85202007-202210

MARK NBK D6994H

main04465-33510iAXUH85202406-202408

MARK NBK D6504H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-33160iAXUH85202007-202210

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-33300iAXUH85202007-202205

main04945-42100iAXUH85202206-202210

04947FITTING KIT, DISC BRAKE, FRONT

main04947-33281iAXUH85202007-202210

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iAXUH85202007-202210

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010×2iAXUH85202007-202210

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12401×4iAXUH85202007-202210

*12-1.25PX35.5-30

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-52190×2iAXUH85202007-202210

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-12A10×2iAXUH85202007-202210

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-33382iAXUH85202007-202210

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164×4iAXUH85202007-202210

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-33312iAXUH85202007-202210

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-33381iAXUH85202007-202210

47731PISTON, FRONT DISC BRAKE

main47731-12A10×2iAXUH85202007-202210

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-33311iAXUH85202007-202210

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-33380×2iAXUH85202007-202012

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-33060iAXUH85202007-202210

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-33060iAXUH85202007-202210

19 parts on this diagram · 1 diagram in section
