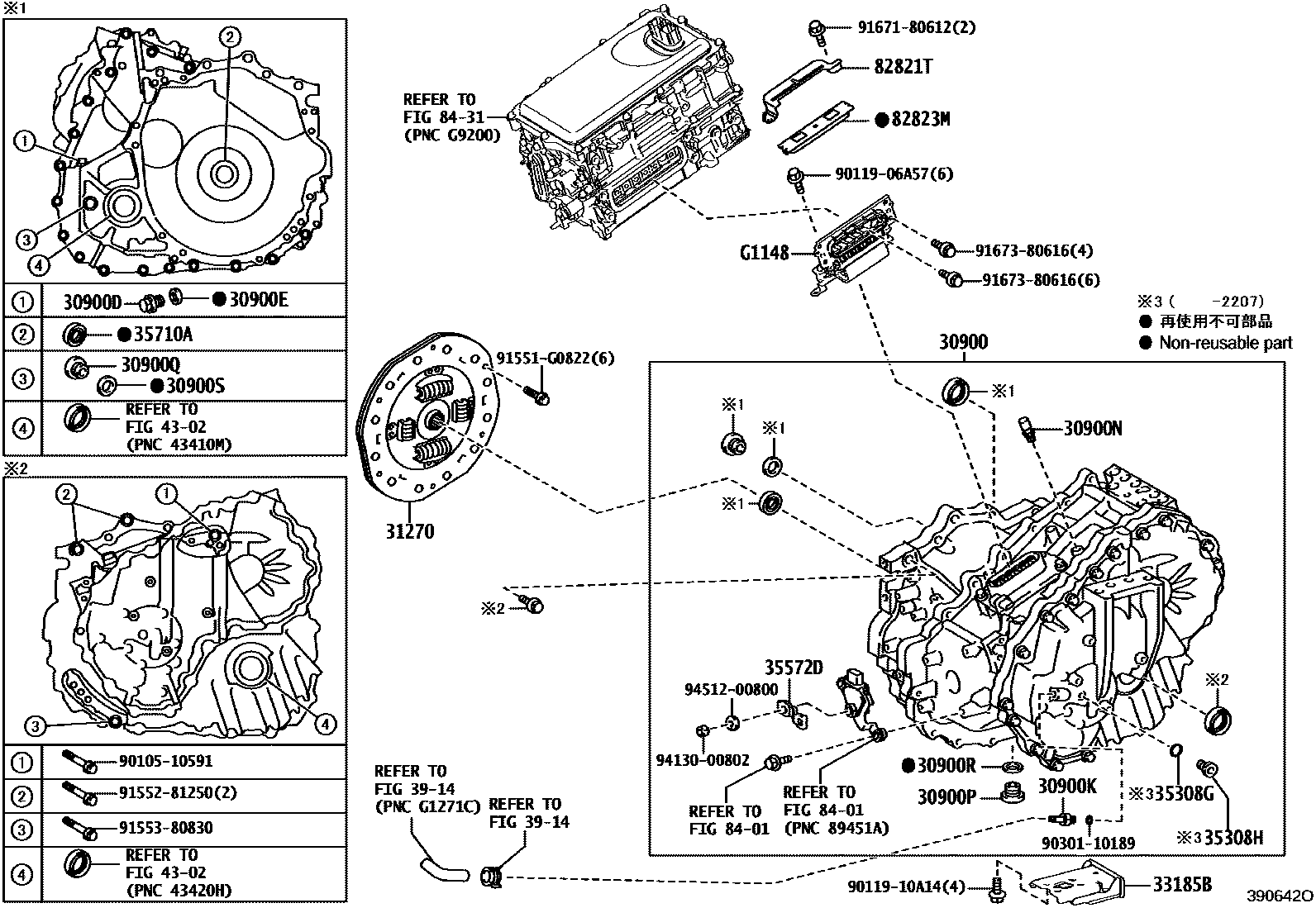

TRANSAXLE ASSY(HEV OR BEV OR FCEV)

0001 1HYBRID VEHICLE TRANSAXLE ASSY0002 1HYBRID VEHICLE TRANSAXLE ASSY0003 1RR TRACTION W/TRANSAXLE MOTOR

30900TRANSAXLE ASSY, HYBRID VEHICLE

main30900-42020iAXUH85202007-202408

30900DPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE)

main90341-18060iAXUH85202007-202408

30900EGASKET(FOR TRANSAXLE HOUSING & CASE)

main90430-18008iAXUH85202007-202408

30900KCONNECTOR, TUBE(FOR TRANSAXLE HOUSING)

main90404-13010iAXUH85202007-202408

30900NPLUG, BREATHER(FOR TRANSAXLE)

main90930-03201iAXUH85202007-202408

30900PPLUG, DRAIN(HEV)

main90341-18016iAXUH85202007-202408

30900QPLUG, FILLER(HEV)

main90341-18016iAXUH85202007-202408

30900RGASKET, DRAIN PLUG(HEV)

main90430-18008iAXUH85202007-202408

30900SGASKET, FILLER PLUG(HEV)

main90430-18008iAXUH85202007-202408

31270DAMPER ASSY, TRANSMISSION INPUT

main31270-33030iAXUH85202007-202408

33185BBRACKET, TRANSAXLE UNDER STOPPER

main33185-42020iAXUH85202007-202408

35308GRING, O, NO.2 (FOR TRANSMISSION OIL PUMP COVER)

main90301-06196iAXUH85202007-202207

35308HPLUG (FOR TRANSMISSION OIL PUMP COVER)

main90341-08001iAXUH85202007-202207

35572DLEVER, TRANSMISSION CONTROL SHAFT

main35572-33070iAXUH85202007-202408

35710ASEAL, TYPE T OIL(FOR INPUT SHAFT)

main90311-27011iAXUH85202007-202408

3914OIL COOLER & TUBE (HEV OR BEV OR FCEV)

→ Go to FIG 39-14

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

82821TCOVER, CONNECTOR

main82821-47240iAXUH85202007-202408

82823MCAP, TERMINAL

main82823-47040iAXUH85202007-202408

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8431HEV INVERTER

→ Go to FIG 84-31

G1148CABLE, MOTOR

mainG114833050iAXUH85202007-202408

9010510591

main90105-10591

9011906A57

main90119-06A57

9011910A14

main90119-10A14

9030110189

main90301-10189

91551G0822

main91551-G0822

9155281250

main91552-81250

9155380830

main91553-80830

9167180612

main91671-80612

9167380616

main91673-80616

9413000802

main94130-00802

9451200800

main94512-00800

33 parts on this diagram · 3 diagrams in section
