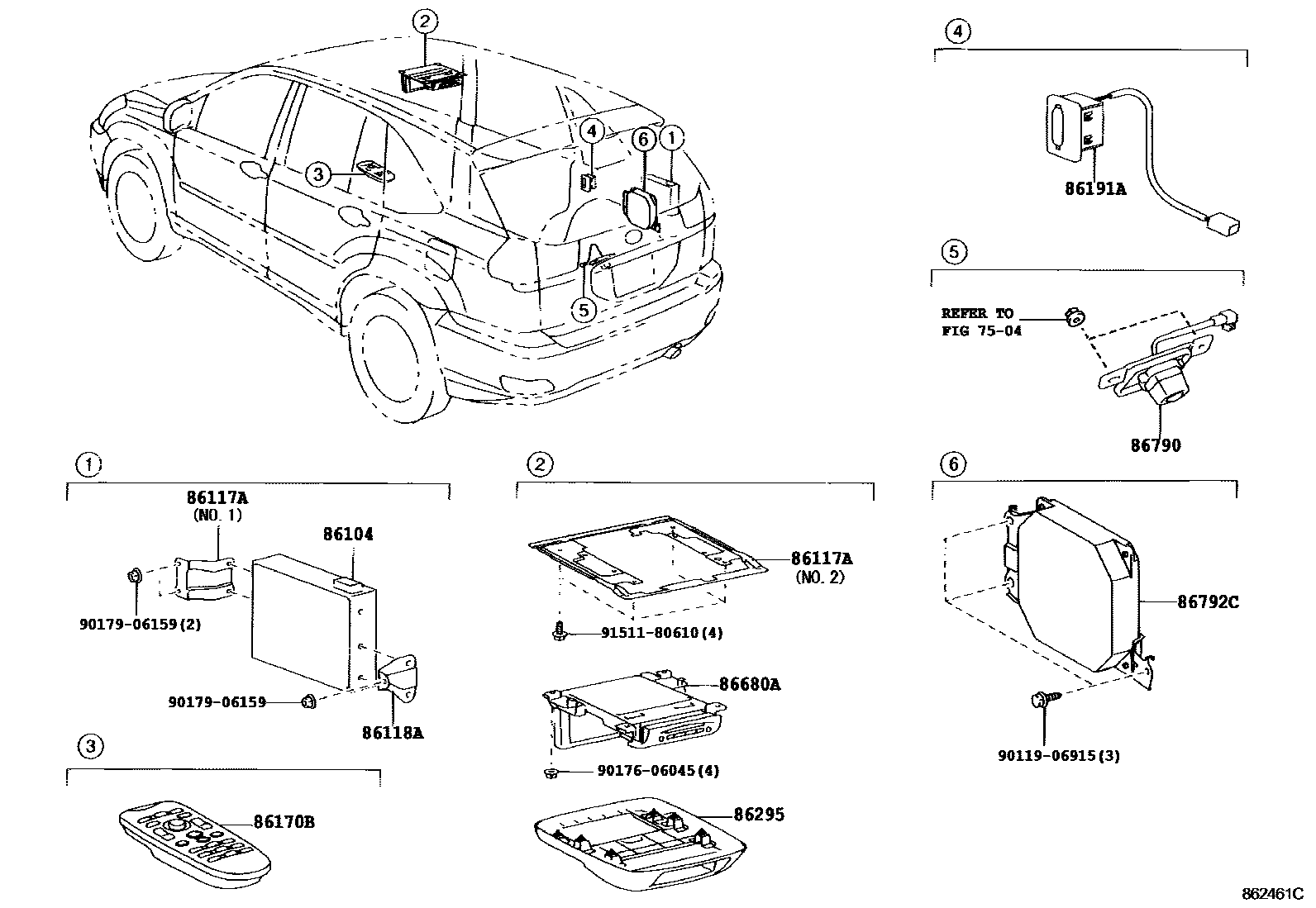

CAMERA & REAR MONITOR DISPLAY

0001 1 0002 1

7504REAR MOULDING

→ Go to FIG 75-04

86104CONTROLLER SUB-ASSY, MULTI-DISPLAY

main86104-48020iMHU3#200503-200608

TELEVISION & VTR-WITH

86117ABRACKET, TELEVISION DISPLAY, A

main86117-48030iMHU3#200503-200608

TELEVISION & VTR-WITH,NO.1

main86117-48040iMHU3#200503-200607

TELEVISION & VTR-WITH,NO.2

main86117-48081iMHU3#200608-200812

TELEVISION & VTR-WITH,NO.2

86118ABRACKET, TELEVISION DISPLAY, B

main86118-48030iMHU3#200503-200608

TELEVISION & VTR-WITH

86170BSWITCH & VOLUME ASSY, TELEVISION

main86170-45020iMHU3#200608-200812

TELEVISION & VTR-WITH

main86170-48010iMHU3#200503-200607

TELEVISION & VTR-WITH

86191ATERMINAL, VIDEO(VIDEO ADAPTER)

main86191-48010iMHU3#200503-200812

TELEVISION & VTR-WITH

86295BASE, TELEVISION

main86295-48010-A0iMHU3#200503-200607

TELEVISION & VTR-WITH,IVORY,TRIM0#

main86295-48010-B0iMHU3#200503-200607

TELEVISION & VTR-WITH,LT.GRAY,TRIM1#,2#

main86295-48030-A0iMHU3#200608-200812

TELEVISION & VTR-WITH,IVORY,TRIM0#

main86295-48030-B0iMHU3#200608-200812

TELEVISION & VTR-WITH,LT.GRAY,TRIM11,12,2#

86680ADISPLAY ASSY, TELEVISION

main86680-48030-A0iMHU3#200503-200607

MATSUSHITA,TELEVISION & VTR-WITH,IVORY,TRIM0#

main86680-48030-B0iMHU3#200503-200607

MATSUSHITA,TELEVISION & VTR-WITH,LT.GRAY,TRIM1#,2#

main86680-48040-A0iMHU3#200608-200812

MATSUSHITA,TELEVISION & VTR-WITH,IVORY,TRIM0#

main86680-48040-B0iMHU3#200608-200812

MATSUSHITA,TELEVISION & VTR-WITH,LT.GRAY,TRIM11,12,2#

86790CAMERA ASSY, TELEVISION

main86790-48020iMHU3#200503-200608

EMV & NAVIGATION SYSTEM-W(03EMV & 03NAVIGATION)

main86790-48060iMHU3#200608-200812

EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)

86792CCOMPUTER, PARKING ASSIST

main86792-48101iMHU3#200503-200608

EMV & NAVIGATION SYSTEM-W(03EMV & 03NAVIGATION)

9011906915

main90119-06915

9017606045

main90176-06045

9017906159

main90179-06159

9151180610

main91511-80610

14 parts on this diagram · 2 diagrams in section
