WINDSHIELD WIPER

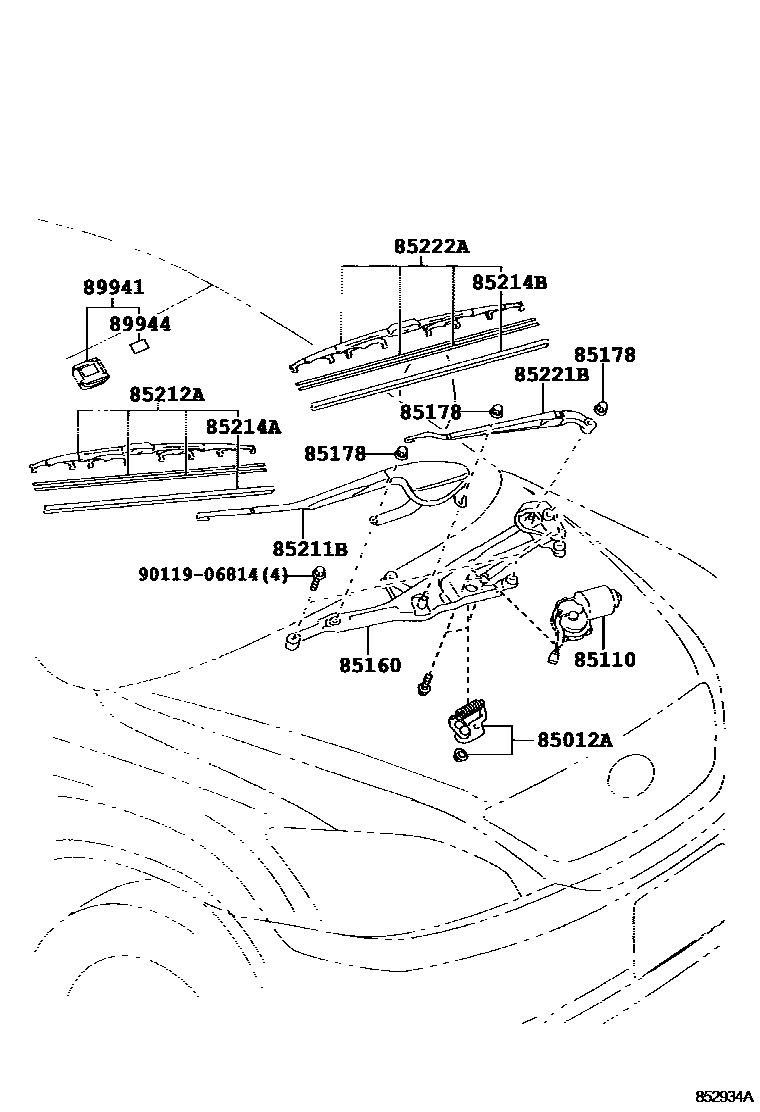

Parts diagram

85012ACRANK SUB-ASSY, FRONT WIPER

main85012-28010i200503-200812

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-48110i200503-200812

85160LINK ASSY, WINDSHIELD WIPER

main85150-48110i200503-200812

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-10005×3i200503-200812

85211BARM, FRONT WIPER, RH

main85211-48080i200503-200812

85212ABLADE, FR WIPER, RH

main85212-48090i200503-200812

85214ARUBBER, WIPER, RH

main85214-48010i200503-200812

85214BRUBBER, WIPER, LH

main85214-44140i200503-200812

85221BARM, FRONT WIPER, LH

main85221-48080i200503-200812

85222ABLADE, FR WIPER, LH

main85222-48080i200503-200812

89941SENSOR, RAIN

main89941-48031i200608-200708

PREMIUM PACKAGE(USA)&SEAT HEATER-WITH(DRIVER & PASSENGER); PREMIUM PACKAGE(USA)&W(WINDSHIELD WIPER DEICER)&SEAT HEATER-WITH(DRIVER & PASSENGER); W(WINDSHIELD WIPER DEICER)

main89941-48033i200708-200809

PREMIUM PACKAGE(USA)&SEAT HEATER-WITH(DRIVER & PASSENGER); PREMIUM PACKAGE(USA)&W(WINDSHIELD WIPER DEICER)&SEAT HEATER-WITH(DRIVER & PASSENGER); W(WINDSHIELD WIPER DEICER)

main89941-48040i200503-200608

PREMIUM PACKAGE(USA)&SEAT HEATER-WITH(DRIVER & PASSENGER); PREMIUM PACKAGE(USA)&W(WINDSHIELD WIPER DEICER)&SEAT HEATER-WITH(DRIVER & PASSENGER); W(WINDSHIELD WIPER DEICER)

main89941-48060i200809-200812

PREMIUM PACKAGE(USA)&SEAT HEATER-WITH(DRIVER & PASSENGER); PREMIUM PACKAGE(USA)&W(WINDSHIELD WIPER DEICER)&SEAT HEATER-WITH(DRIVER & PASSENGER); W(WINDSHIELD WIPER DEICER)

89944TAPE, RAIN SENSOR

main89944-50011i200503-200812

PREMIUM PACKAGE(USA)&SEAT HEATER-WITH(DRIVER & PASSENGER); PREMIUM PACKAGE(USA)&W(WINDSHIELD WIPER DEICER)&SEAT HEATER-WITH(DRIVER & PASSENGER); W(WINDSHIELD WIPER DEICER)

9011906814

main90119-06814

13 parts on this diagram · 1 diagram in section
