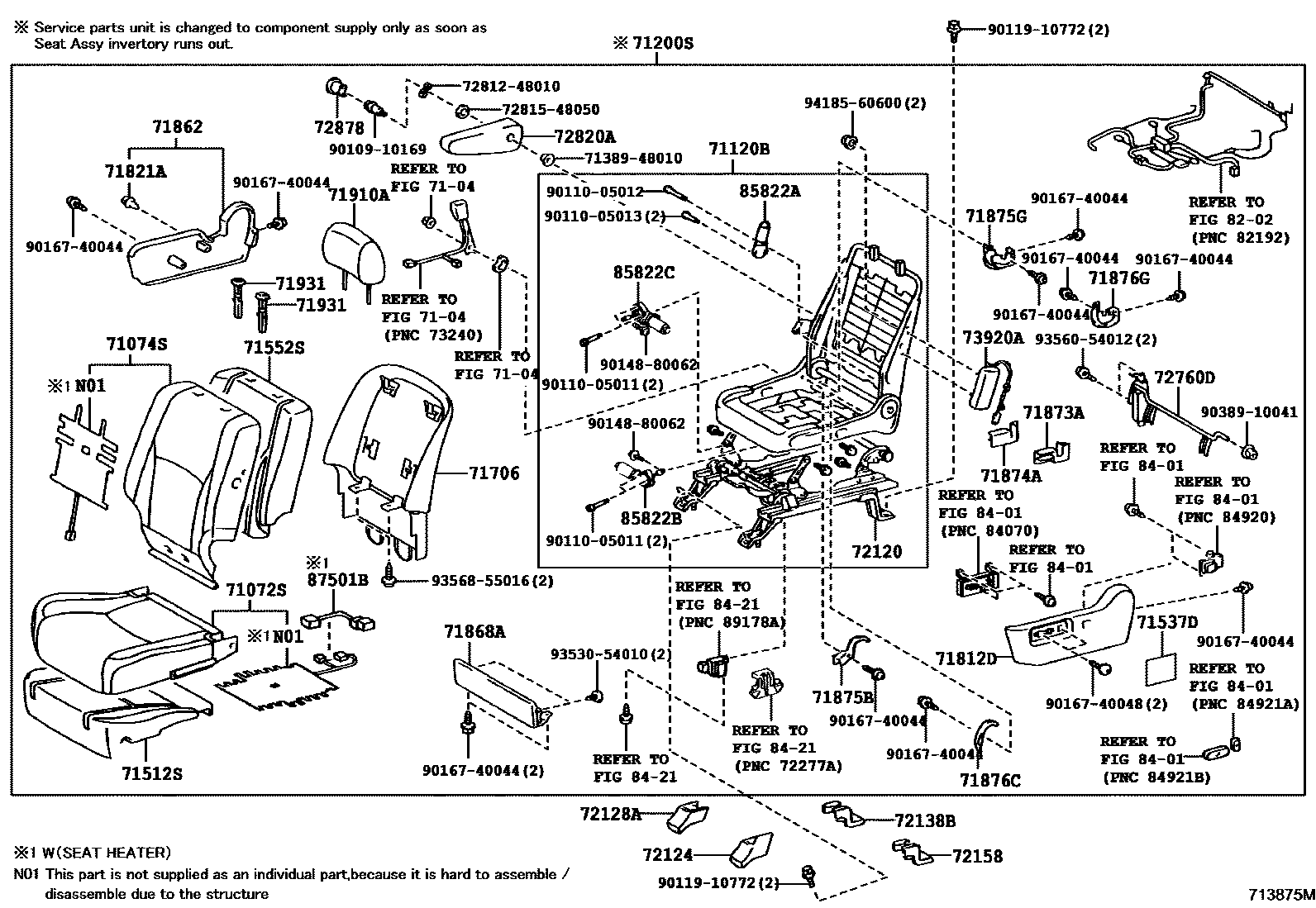

FRONT SEAT & SEAT TRACK

7104

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-48310-A0i200503-200812

PREMIUM PACKAGE(USA)&STEERING WHEEL-WOOD W/AUDIO SW&SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#

sub71072-48311

main71072-48310-B0supersedes 71072-48280-B0i200503-200812

PREMIUM PACKAGE(USA)&STEERING WHEEL-WOOD W/AUDIO SW&SEAT COVER MATERIAL-LEATHER,LT.GRAY,TRIM1#

sub71072-48311

main71072-48310-C0i200503-200812

PREMIUM PACKAGE(USA)&STEERING WHEEL-WOOD W/AUDIO SW&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

sub71072-48311

main71072-48320-A0i200608-200812

KOREA SPEC&PREMIUM PACKAGE(USA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#

sub71072-48321

main71072-48320-B0supersedes 71072-48280-B0i200608-200812

KOREA SPEC&PREMIUM PACKAGE(USA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),LT.GRAY,TRIM1#

sub71072-48321

main71072-48320-C0i200608-200812

KOREA SPEC&PREMIUM PACKAGE(USA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

sub71072-48321

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-48410-A0i200503-200812

PREMIUM PACKAGE(USA)&STEERING WHEEL-WOOD W/AUDIO SW&SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#

main71074-48410-B0supersedes 71074-48360-B0i200503-200812

PREMIUM PACKAGE(USA)&STEERING WHEEL-WOOD W/AUDIO SW&SEAT COVER MATERIAL-LEATHER,LT.GRAY,TRIM1#

main71074-48410-C0i200503-200812

PREMIUM PACKAGE(USA)&STEERING WHEEL-WOOD W/AUDIO SW&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

main71074-48420-A0i200503-200812

PREMIUM PACKAGE(USA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#

main71074-48420-B0supersedes 71074-48360-B0i200608-200812

KOREA SPEC&PREMIUM PACKAGE(USA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),LT.GRAY,TRIM1#

main71074-48420-C0i200503-200812

PREMIUM PACKAGE(USA)&STEERING WHEEL-WOOD W/AUDIO SW&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

71120BFRAME ASSY, FRONT SEAT W/ADJUSTER, LH

main71120-48120i200503-200812

71200SSEAT ASSY, FRONT LH

main71200-48782-A0i200503-200608

PREMIUM PACKAGE(USA)&STEERING WHEEL-WOOD W/AUDIO SW&SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#

sub71200-48783

main71200-48782-A1i200608-200812

PREMIUM PACKAGE(USA)&STEERING WHEEL-WOOD W/AUDIO SW&SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#

sub71200-48783

main71200-48782-B0supersedes 71200-48772-B0i200503-200608

PREMIUM PACKAGE(USA)&STEERING WHEEL-WOOD W/AUDIO SW&SEAT COVER MATERIAL-LEATHER,LT. GRAY,TRIM1#

sub71200-48783

main71200-48782-B1supersedes 71200-48772-B1i200608-200812

PREMIUM PACKAGE(USA)&STEERING WHEEL-WOOD W/AUDIO SW&SEAT COVER MATERIAL-LEATHER,LT.GRAY,TRIM1#

sub71200-48783

main71200-48782-C0i200503-200608

PREMIUM PACKAGE(USA)&STEERING WHEEL-WOOD W/AUDIO SW&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

sub71200-48783

main71200-48782-C1i200608-200812

PREMIUM PACKAGE(USA)&STEERING WHEEL-WOOD W/AUDIO SW&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

sub71200-48783

main71200-48792-A0i200503-200608

PREMIUM PACKAGE(USA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#

sub71200-48793

main71200-48792-A1i200608-200812

KOREA SPEC&PREMIUM PACKAGE(USA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#

sub71200-48793

main71200-48792-B0supersedes 71200-48772-B0i200503-200608

PREMIUM PACKAGE(USA)&STEERING WHEEL-WOOD W/AUDIO SW&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),LT. GRAY,TRIM1#

sub71200-48793

main71200-48792-B1i200608-200812

KOREA SPEC&PREMIUM PACKAGE(USA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),LT.GRAY,TRIM1#

sub71200-48793

main71200-48792-C0i200503-200608

PREMIUM PACKAGE(USA)&STEERING WHEEL-WOOD W/AUDIO SW&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

sub71200-48793

main71200-48792-C1i200608-200812

KOREA SPEC&PREMIUM PACKAGE(USA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

sub71200-48793

main71200-48E70-B0supersedes 71200-48772-B1i200608-200812

PREMIUM PACKAGE(USA),LT.GRAY,TRIM1#

sub71200-48E71

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71512-48060i200503-200812

71537DPROTECTOR, FRONT SEAT CUSHION EDGE, LH

main71537-48030i200503-200812

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-48060i200503-200812

71706BOARD SUB-ASSY, FRONT SEATBACK, LH

main71706-48050-A0i200503-200603

IVORY,TRIM0#

main71706-48050-A2i200603-200812

IVORY,TRIM0#

main71706-48050-C0i200503-200603

BLACK,TRIM2#

main71706-48050-C1i200603-200812

BLACK,TRIM2#

main71706-48050-B0supersedes 71706-48050-B2i200503-200603

PREMIUM PACKAGE(USA)&STEERING WHEEL-WOOD W/AUDIO SW&SEAT COVER MATERIAL-LEATHER,LT.GRAY,TRIM1#

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-48080-A0i200503-200812

IVORY,TRIM0#

main71812-48080-B0i200503-200812

LT.GRAY,TRIM1#

main71812-48080-C0i200503-200812

BLACK,TRIM2#

71821ACLIP (FOR FRONT SEAT SIDE SHIELD)

main67921-50050-B0×2i200503-200812

LT.GRAY

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-48060-A0i200503-200812

IVORY,TRIM0#

main71862-48060-B0i200503-200812

LT.GRAY,TRIM1#

main71862-48060-C0i200503-200812

BLACK,TRIM2#

71868ASHIELD, FRONT SEAT CUSHION, INNER NO.1 LH

main71867-48030-A0i200503-200812

IVORY,TRIM0#

main71867-48030-B0i200503-200812

LT.GRAY,TRIM1#

main71867-48030-C0i200503-200812

BLACK,TRIM2#

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-33030i200503-200812

71873ASHIELD, FRONT SEAT CUSHION, LOWER

main71873-48050i200503-200812

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-33070i200503-200812

71874ASHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-48050i200503-200812

71875BCOVER, RECLINING ADJUSTER INSIDE, RH

main71876-48040-A0i200503-200812

IVORY,TRIM0#

main71876-48040-B0i200503-200812

LT.GRAY,TRIM1#

main71876-48040-C0i200503-200812

BLACK,TRIM2#

71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

main71875-60140i200503-200812

71876CCOVER, RECLINING ADJUSTER INSIDE, LH

main71876-60150-A0i200503-200812

IVORY,TRIM0#

main71876-60150-B3i200503-200812

LT.GRAY,TRIM1#

main71876-60150-C0i200503-200812

BLACK,TRIM2#

71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

main71876-60140i200503-200812

71910AHEADREST ASSY, FRONT SEAT

main71910-48230-B0×2i200708-200812

LT.GRAY,TRIM1#

sub71910-48231

main71910-48250-A0×2i200608-200812

KOREA SPEC&PREMIUM PACKAGE(USA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#

main71910-48250-B0×2supersedes 71910-48230-B0i200608-200812

KOREA SPEC&PREMIUM PACKAGE(USA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),LT.GRAY,TRIM1#

main71910-48250-C0i200503-200608

PREMIUM PACKAGE(USA)&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

71931SUPPORT, FRONT SEAT HEADREST

main71930-52030-A0×2i200708-200812

W(LOCK)&W(BUTTON),IVORY,TRIM0#

main71930-52030-B5×2i200708-200812

W(LOCK)&W(BUTTON),LT.GRAY,TRIM1#

main71930-52030-C0×2i200708-200812

W(LOCK)&W(BUTTON),BLACK,TRIM2#

main71931-42020-A0×2supersedes 71931-42020-A0i200708-200812

W(LOCK)&W/O(BUTTON),IVORY,TRIM0#

main71931-42020-B2×2supersedes 71931-42020-B2i200708-200812

W(LOCK)&W/O(BUTTON),LT.GRAY,TRIM1#

main71931-42020-C0×2supersedes 71931-42020-C0i200708-200812

W(LOCK)&W/O(BUTTON),BLACK,TRIM2#

72120TRACK ASSY, FRONT SEAT, OUTER LH

main72120-48100i200503-200812

72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH

main72124-48040-A0i200503-200812

IVORY,TRIM0#

main72124-48040-B0i200503-200812

LT.GRAY,TRIM1#

main72124-48040-C0i200503-200812

BLACK,TRIM2#

72128ACOVER, SEAT TRACK BRACKET, INNER FRONT LH

main72124-48030-A0i200503-200812

IVORY,TRIM0#

main72124-48030-B0i200503-200812

LT.GRAY,TRIM1#

main72124-48030-C0i200503-200812

BLACK,TRIM2#

72138BCOVER, SEAT TRACK, LH

main72158-48030-A0i200503-200812

IVORY,TRIM0#

main72158-48030-B0i200503-200812

LT.GRAY,TRIM1#

main72158-48030-C0i200503-200812

BLACK,TRIM2#

72158COVER, SEAT TRACK BRACKET, INNER LH

main72137-48040-A0i200503-200812

IVORY,TRIM0#

main72137-48040-B0i200503-200812

LT.GRAY,TRIM1#

main72137-48040-C0i200503-200812

BLACK,TRIM2#

72760DADJUSTER ASSY, LUMBAR SUPPORT, LH

main72760-48020i200503-200812

72820AARMREST ASSY, SEAT, LH

main72820-48160-A0i200503-200812

PREMIUM PACKAGE(USA)&STEERING WHEEL-WOOD W/AUDIO SW&SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#

main72820-48160-B0supersedes 72820-48140-B0i200503-200812

PREMIUM PACKAGE(USA)&STEERING WHEEL-WOOD W/AUDIO SW&SEAT COVER MATERIAL-LEATHER,LT.GRAY,TRIM1#

main72820-48160-C0i200503-200812

PREMIUM PACKAGE(USA)&STEERING WHEEL-WOOD W/AUDIO SW&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

72878COVER, SEAT ARMREST, LH

main72848-48020-B2i200503-200812

LT.GRAY,TRIM1#

main72848-48020-A0i200503-200812

PREMIUM PACKAGE(USA)&STEERING WHEEL-WOOD W/AUDIO SW&SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#

main72848-48020-C0i200503-200812

PREMIUM PACKAGE(USA)&STEERING WHEEL-WOOD W/AUDIO SW&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

73920AAIRBAG ASSY, FRONT SEAT, LH

main73920-0E011i200503-200605

main73920-0E012i200606-200612

main73920-0E013i200701-200812

8202

8401

8421

85822AMOTOR ASSY, POWER SEAT RECLINING, LH

main85801-60020i200503-200812

85822BMOTOR ASSY, POWER SEAT TILT, LH

main85801-60040i200503-200812

85822CMOTOR ASSY, POWER SEAT LIFTER, LH

main85801-60030i200503-200812

87501BCONTROL SUB-ASSY, SEAT HEATER, LH

main87501-05010i200503-200812

PREMIUM PACKAGE(USA)&STEERING WHEEL-WOOD W/AUDIO SW&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)

7138948010SPACER, CENTER SEAT HINGE

main71389-48010

7281248010CLUTCH, PROTECTOR SUB

main72812-48010

7281548050HOLDER, CLUTCH PROTECTOR SUB

main72815-48050

9010910169

main90109-10169

9011005011

main90110-05011

9011005012

main90110-05012

9011005013

main90110-05013

9011910772

main90119-10772

9014880062

main90148-80062

9016740044

main90167-40044

9016740048

main90167-40048

9038910041

main90389-10041

9353054010

main93530-54010

9356054012

main93560-54012

9356855016

main93568-55016

9418560600

main94185-60600

55 parts on this diagram · 2 diagrams in section
