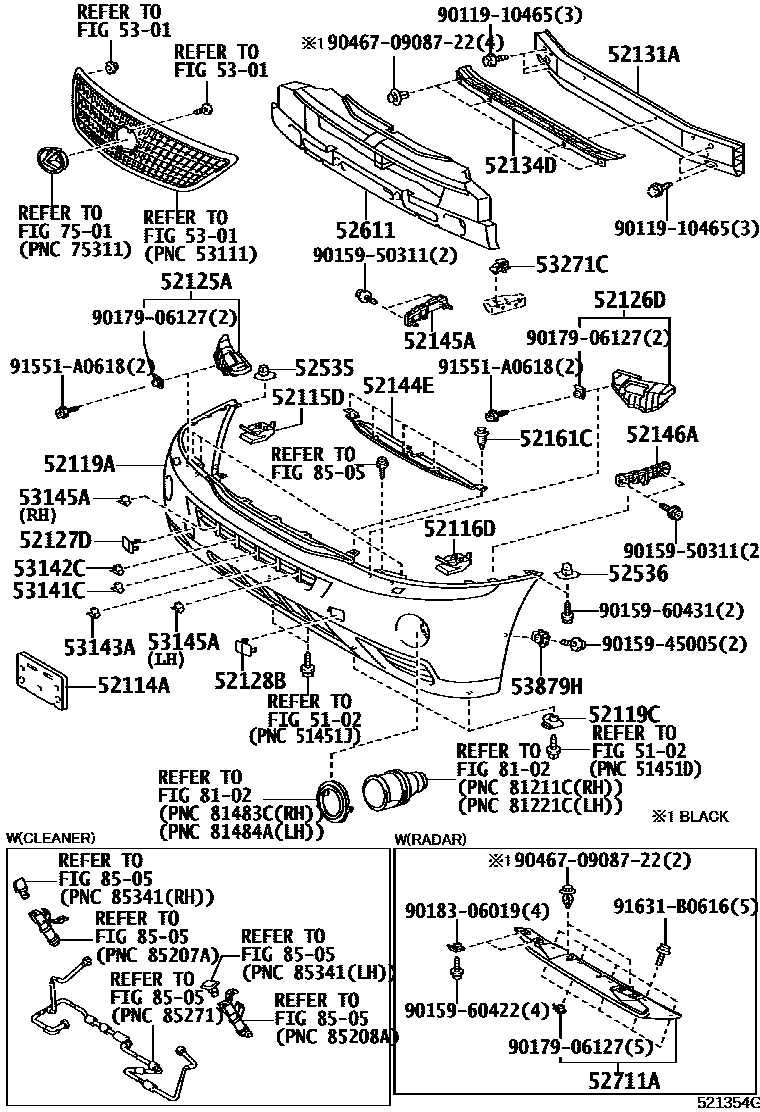

FRONT BUMPER & BUMPER STAY

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING

main52114-48090i200503-200507

main52114-48091i200508-200708

main52114-48092i200709-200812

main52114-48160i200608-200708

KOREA SPEC

main52114-48161i200709-200812

KOREA SPEC

52115DSUPPORT, FRONT BUMPER SIDE, NO.2 RH

main52115-48060i200503-200812

52116DSUPPORT, FRONT BUMPER SIDE, NO.2 LH

main52115-48060i200503-200812

52119ACOVER, FRONT BUMPER

main52119-48919i200608-200812

PAINT REQ.,KOREA SPEC&PREMIUM PACKAGE(USA)&SEAT HEATER-WITH(DRIVER & PASSENGER)

main52119-48921supersedes 52119-48919i200503-200812

PAINT REQ.,PREMIUM PACKAGE(USA)&CRUISE CONTROL-WITH(W/RADAR CRUISE)

main52119-48922supersedes 52119-48919i200503-200812

PAINT REQ.,CANADA SPEC&PREMIUM PACKAGE(USA)&CRUISE CONTROL-WITH(W/RADAR CRUISE); PAINT REQ.,CANADA SPEC&PREMIUM PACKAGE(USA)&CRUISE CONTROL-WITH(W/RADAR CRUISE)&SEAT HEATER-WITH(DRIVER & PASSENGER); PAINT REQ.,PREMIUM PACKAGE(USA)&CRUISE CONTROL-WITH(W/RADAR CRUISE)&SEAT HEATER-WITH(DRIVER & PASSENGER)

main52119-48923supersedes 52119-48919i200503-200812

PAINT REQ.,CANADA SPEC; PAINT REQ.,CANADA SPEC&PREMIUM PACKAGE(USA)&SEAT HEATER-WITH(DRIVER & PASSENGER); PAINT REQ.,PREMIUM PACKAGE(USA)&SEAT HEATER-WITH(DRIVER & PASSENGER)

52119CCLIP, FRONT BUMPER COVER

main90467-05114×4i200503-200812

52125ABRACKET, FOG LAMP MOUNTING, RH

main52125-48030i200503-200812

52126DBRACKET, FOG LAMP MOUNTING, LH

main52126-48030i200503-200812

52127DCOVER, FRONT BUMPER HOLE, RH

main52127-48903i200503-200812

52128BCOVER, FRONT BUMPER HOLE, LH

main52128-48901i200503-200812

52131AREINFORCEMENT, FRONT BUMPER

main52131-48061i200503-200812

CANADA SPEC; KOREA SPEC

52134DREINFORCEMENT, FRONT BUMPER STAY

main52134-48020i200503-200812

52144ESTAY, FRONT BUMPER, CENTER

main52144-48030i200503-200812

52145ASTAY, FRONT BUMPER, NO.2 RH

main52145-48010i200503-200812

52146ASTAY, FRONT BUMPER, NO.2 LH

main52146-48010i200503-200812

52161CPIECE, FRONT BUMPER

main52161-16010×5i200503-200812

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-48020i200503-200812

52536RETAINER, FRONT BUMPER SIDE, LH

main52535-48020i200503-200812

52611ABSORBER, FRONT BUMPER ENERGY

main52611-48060i200503-200812

52711AGARNISH, FRONT BUMPER

main52711-48020i200503-200812

CANADA SPEC&PREMIUM PACKAGE(USA)&CRUISE CONTROL-WITH(W/RADAR CRUISE); CANADA SPEC&PREMIUM PACKAGE(USA)&CRUISE CONTROL-WITH(W/RADAR CRUISE)&SEAT HEATER-WITH(DRIVER & PASSENGER); PREMIUM PACKAGE(USA)&CRUISE CONTROL-WITH(W/RADAR CRUISE); PREMIUM PACKAGE(USA)&CRUISE CONTROL-WITH(W/RADAR CRUISE)&SEAT HEATER-WITH(DRIVER &PASSENGER)

5301RADIATOR GRILLE

→ Go to FIG 53-01

53141CGARNISH, RADIATOR GRILLE

main53141-48020×3i200503-200812

53142CGARNISH, RADIATOR GRILLE, NO.2

main53142-48010×3i200503-200812

53143AGARNISH, RADIATOR GRILLE, NO.3

main53143-48010×3i200503-200812

53145ABRACKET, RADIATOR GRILLE, GARNISH, NO.1

main53145-48010×3i200503-200812

main53146-48010×3i200503-200812

53271CBRACKET, HEADLAMP MOUNTING
