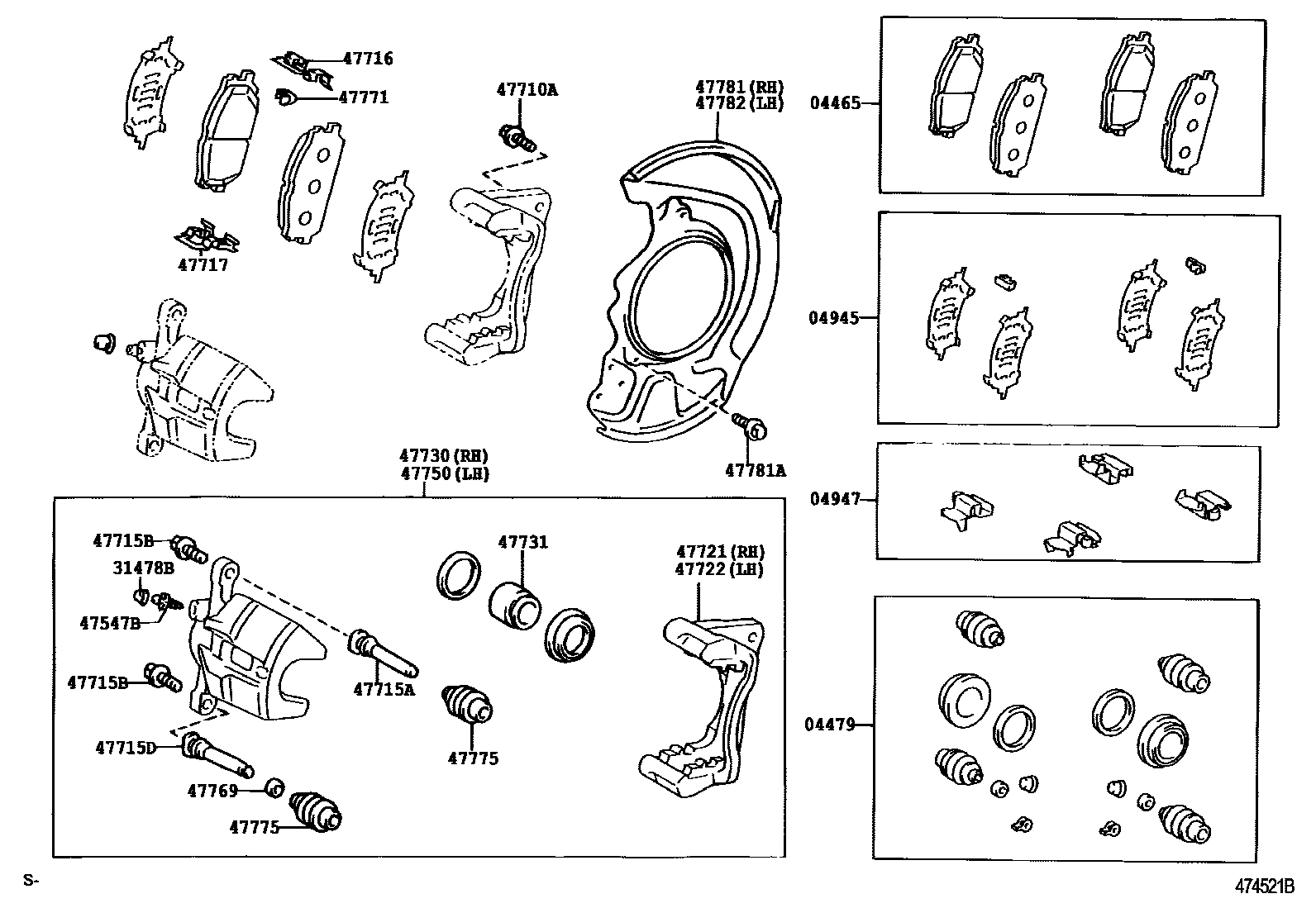

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-48100i200503-200812

MARK SUMITOMO PS558H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-48160i200711-200812

main04479-48040i200503-200711

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-48080i200503-200812

04947FITTING KIT, DISC BRAKE, FRONT

main04947-48050i200503-200812

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2i200503-200812

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010×2i200503-200812

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208×4i200503-200812

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-48050×2i200503-200812

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90105-08346×4i200503-200812

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47714-48050×2i200503-200812

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-48120×2i200503-200812

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-48050×2i200503-200812

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-48140i200503-200812

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-48140i200503-200812

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-48140i200503-200812

47731PISTON, FRONT DISC BRAKE

main47731-28080×2i200503-200812

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-48140i200503-200812

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-33020×2i200503-200812

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-48010×2i200503-200812

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-48050×4i200503-200812

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-48030i200503-200812

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06227×8i200503-200812

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-48030i200503-200812

23 parts on this diagram · 1 diagram in section
