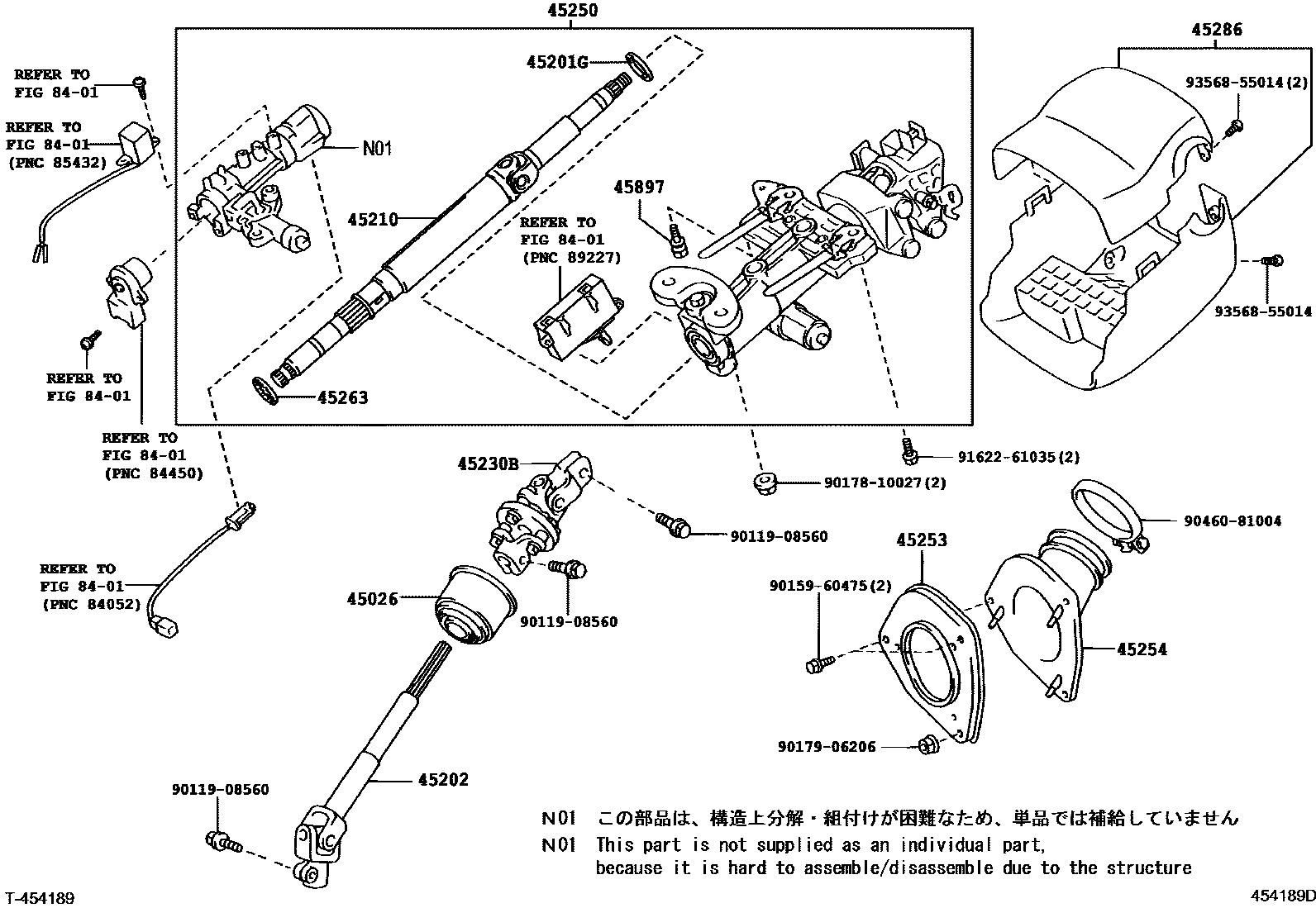

STEERING COLUMN & SHAFT

0001 1TILT & TELESCOPIC STEERING 0002 1TILT STEERING

45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2

main45026-48050iMHU3#200503-200812

45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)

main45820-50010iMHU3#200503-200812

PREMIUM PACKAGE(USA)

45202SHAFT SUB-ASSY, STEERING INTERMEDIATE

main45202-48080iMHU3#200503-200812

45210SHAFT ASSY, STEERING MAIN

main45210-48040supersedes 45210-48020iMHU3#200503-200812

PREMIUM PACKAGE(USA)

45230BJOINT ASSY, STEERING SHAFT UNIVERSAL

main45230-48050iMHU3#200503-200812

45250COLUMN ASSY, STEERING

main45250-48100supersedes 45250-48060iMHU3#200503-200812

PREMIUM PACKAGE(USA)

45253COVER, STEERING COLUMN HOLE

main45253-48040iMHU3#200503-200812

45254SHIELD, STEERING COLUMN HOLE

main45254-48040iMHU3#200503-200812

45263RING, STEERING COLUMN, NO.1

main45263-30010iMHU3#200503-200812

PREMIUM PACKAGE(USA)

45286COVER, STEERING COLUMN

main45286-48900-C0iMHU3#200503-200812

BLACK,TRIM1#

main45286-48902-B0iMHU3#200503-200812

PREMIUM PACKAGE(USA),SADDLE GRAY,TRIM0#

main45286-48902-C0iMHU3#200503-200812

PREMIUM PACKAGE(USA),BLACK,TRIM1#,2#

45897BOLT, STEERING LOCK SET

main45897-12020×2iMHU3#200503-200812

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908560

main90119-08560

9015960475

main90159-60475

9017810027

main90178-10027

9017906206

main90179-06206

9046081004

main90460-81004

9162261035

main91622-61035

9356855014

main93568-55014

19 parts on this diagram · 2 diagrams in section
