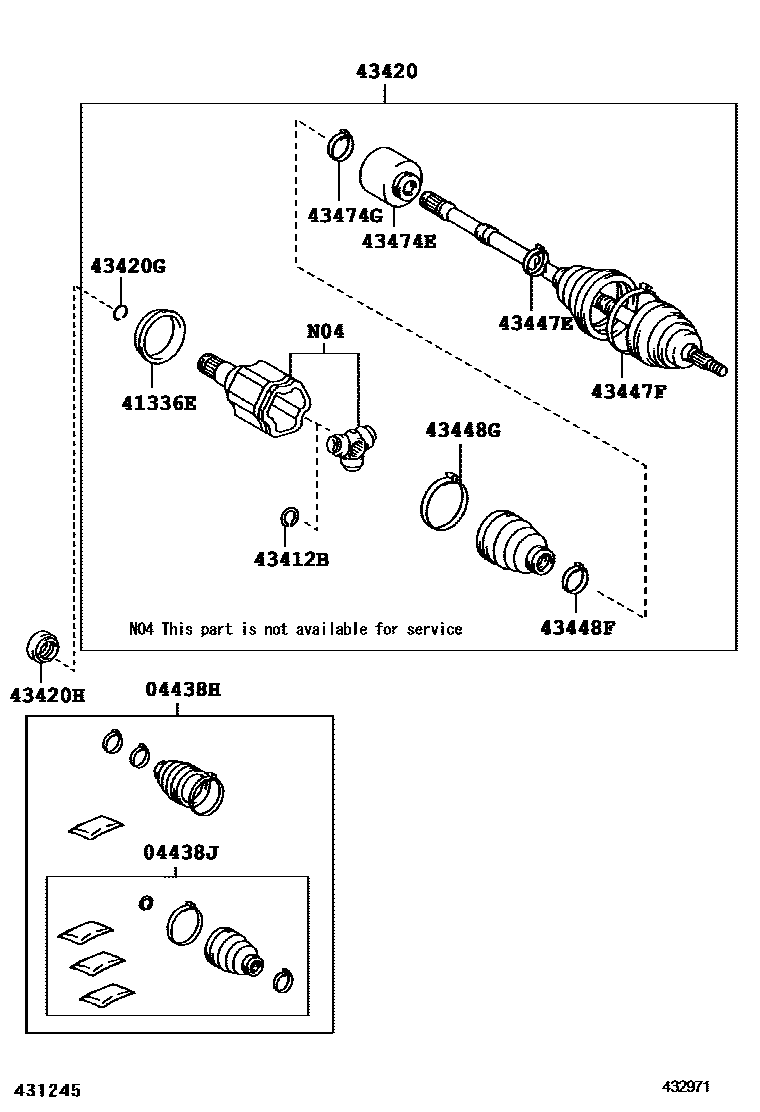

FRONT DRIVE SHAFT

0001 1LH 0002 1RH

04438HBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH

main04438-08080iMHU3#200503-200812

04438JBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH

main04438-08010iMHU3#200503-200812

41336ECOVER, FRONT DRIVE SHAFT DUST, LH

main41336-07010iMHU3#200503-200812

43412BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)

main43425-08040iMHU3#200503-200812

43420SHAFT ASSY, FRONT DRIVE, LH

main43420-0W190iMHU3#200503-200812

43420GRING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)

main90080-52017iMHU3#200503-200812

43420HOIL SEAL, FRONT DRIVE SHAFT, LH

main90311-50031iMHU3#200503-200812

43447ECLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-04030iMHU3#200503-200812

43447FCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-04040iMHU3#200503-200812

43448FCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-08070iMHU3#200503-200812

43448GCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-08060iMHU3#200503-200812

43474EDAMPER, FRONT DRIVE SHAFT, LH

main43474-0E010iMHU3#200503-200812

43474GCLAMP (FOR FRONT DRIVE SHAFT DAMPER LH)

main42345-06100iMHU3#200503-200812

13 parts on this diagram · 2 diagrams in section
