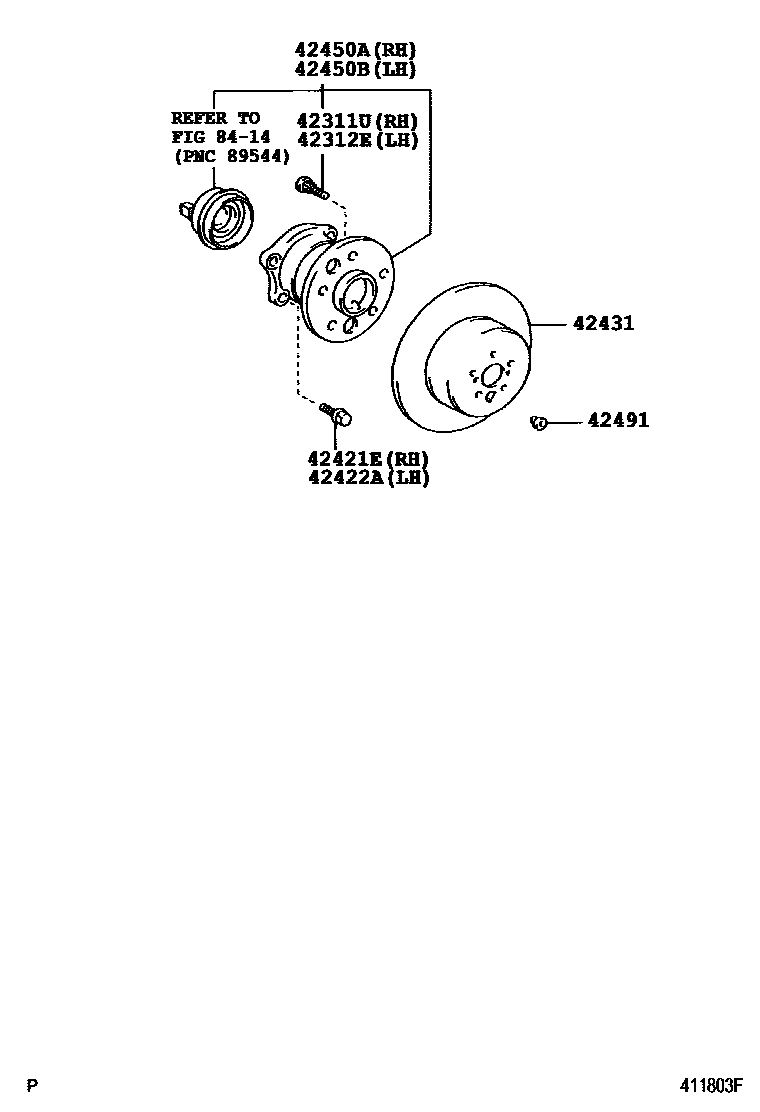

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049×5iMHU3#200503-200812

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049×5iMHU3#200503-200812

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-12332×4iMHU3#200503-200812

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-12332×4iMHU3#200503-200812

42431DISC, REAR

main42431-48041×2iMHU3#200503-200812

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-48030iMHU33200503-200812

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42460-48030iMHU33200503-200812

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-22020×2iMHU3#200503-200812

8414ABS & VSC

→ Go to FIG 84-14

9 parts on this diagram · 3 diagrams in section
