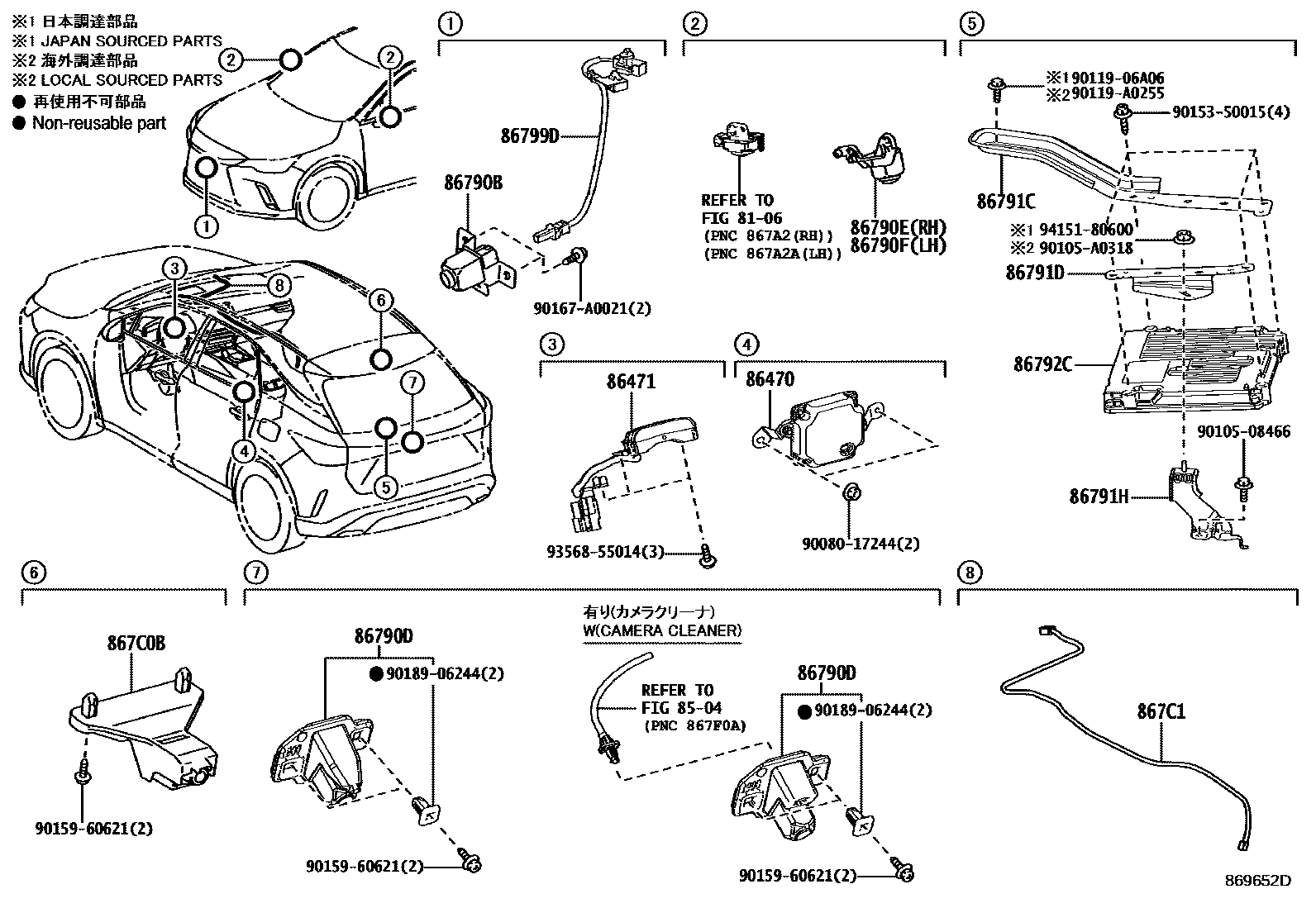

CAMERA & REAR MONITOR DISPLAY

8106

8504

86470COMPUTER ASSY, DRIVER MONITOR

main86470-48010i202210-202309

LANE KEEPING SYSTEM-WITH(VIB & TOUCH & EDSS & L2PT)

main86470-48050i202309-202411

LANE KEEPING SYSTEM-WITH(VIB & TOUCH & EDSS & L2PT)

main86470-48060i202411-202510

LANE KEEPING SYSTEM-WITH(VIB & TOUCH & EDSS & L2PT)

86471CAMERA, DRIVER MONITOR

main86471-48010i202210

LANE KEEPING SYSTEM-WITH(VIB & TOUCH & EDSS & L2PT)

86790BCAMERA ASSY, TELEVISION, FR

main86790-0E350i202210

LUXURY PACKAGE&BACK MONITOR-WITH(*PVM & CAMERA CLEANER)

86790DCAMERA ASSY, TELEVISION, RR

main867B0-0E231i202411

main86790-0E310supersedes 867B0-0E230i202210-202308

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&BACK MONITOR-WITH(*PVM & CAMERA CLEANER)

main867B0-0E210supersedes 867B0-0E230i202210-202308

BACK MONITOR-WITH(*BGM & CAMERA CLEANER)

86790ECAMERA ASSY, TELEVISION, SIDE RH

main86790-F6030i202210

BACK MONITOR-WITH(*PVM & CAMERA CLEANER)

86790FCAMERA ASSY, TELEVISION, SIDE LH

main86790-F6020i202210

BACK MONITOR-WITH(*PVM & CAMERA CLEANER)

86791CBRACKET, COMPUTER PARKING ASSIST, NO.1

main86791-48040i202210-202411

EMV & NAVIGATION SYSTEM-WITH(14INCH DISPLAY)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&BACK MONITOR-WITH(*PVM & CAMERA CLEANER)

86791DBRACKET, COMPUTER PARKING ASSIST, NO.2

main86791-48050i202210-202308

EMV & NAVIGATION SYSTEM-WITH(14INCH DISPLAY)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&BACK MONITOR-WITH(*PVM & CAMERA CLEANER)

86791HBRACKET, COMPUTER PARKING ASSIST, NO.3

main86791-48060i202210-202308

EMV & NAVIGATION SYSTEM-WITH(14INCH DISPLAY)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&BACK MONITOR-WITH(*PVM & CAMERA CLEANER)

86792CCOMPUTER, PARKING ASSIST

main86792-48630i202309-202411

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&BACK MONITOR-WITH(*PVM & CAMERA CLEANER)

main86792-48760i202210-202308

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&BACK MONITOR-WITH(*PVM & CAMERA CLEANER)

main86792-48770i202210-202308

EMV & NAVIGATION SYSTEM-WITH(14INCH DISPLAY)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&BACK MONITOR-WITH(*PVM & CAMERA CLEANER)

main86792-48A80i202308-202411

EMV & NAVIGATION SYSTEM-WITH(14INCH DISPLAY)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&BACK MONITOR-WITH(*PVM & CAMERA CLEANER)

main86792-48A81i202411

EMV & NAVIGATION SYSTEM-WITH(14INCH DISPLAY)&BACK MONITOR-WITH(*PVM & CAMERA CLEANER)

86799DWIRE, TELEVISION CAMERA, FRONT

main86799-0E020i202210

LUXURY PACKAGE&BACK MONITOR-WITH(*PVM & CAMERA CLEANER)

867C0BCAMERA ASSY, INNER MIRROR, RR

main867C0-0E050i202210

INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR & WITH(*GDO)

867C1WIRE, MIRROR CAMERA

main867C1-0E170i202210

INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR & WITH(*GDO)

9008017244

main90080-17244

9010508466

main90105-08466

90105A0318

main90105-A0318

9011906A06

main90119-06A06

90119A0255

main90119-A0255

9015350015

main90153-50015

9015960621

main90159-60621

90167A0021

main90167-A0021

9018906244

main90189-06244

9356855014

main93568-55014

9415180600

main94151-80600

26 parts on this diagram · 1 diagram in section
