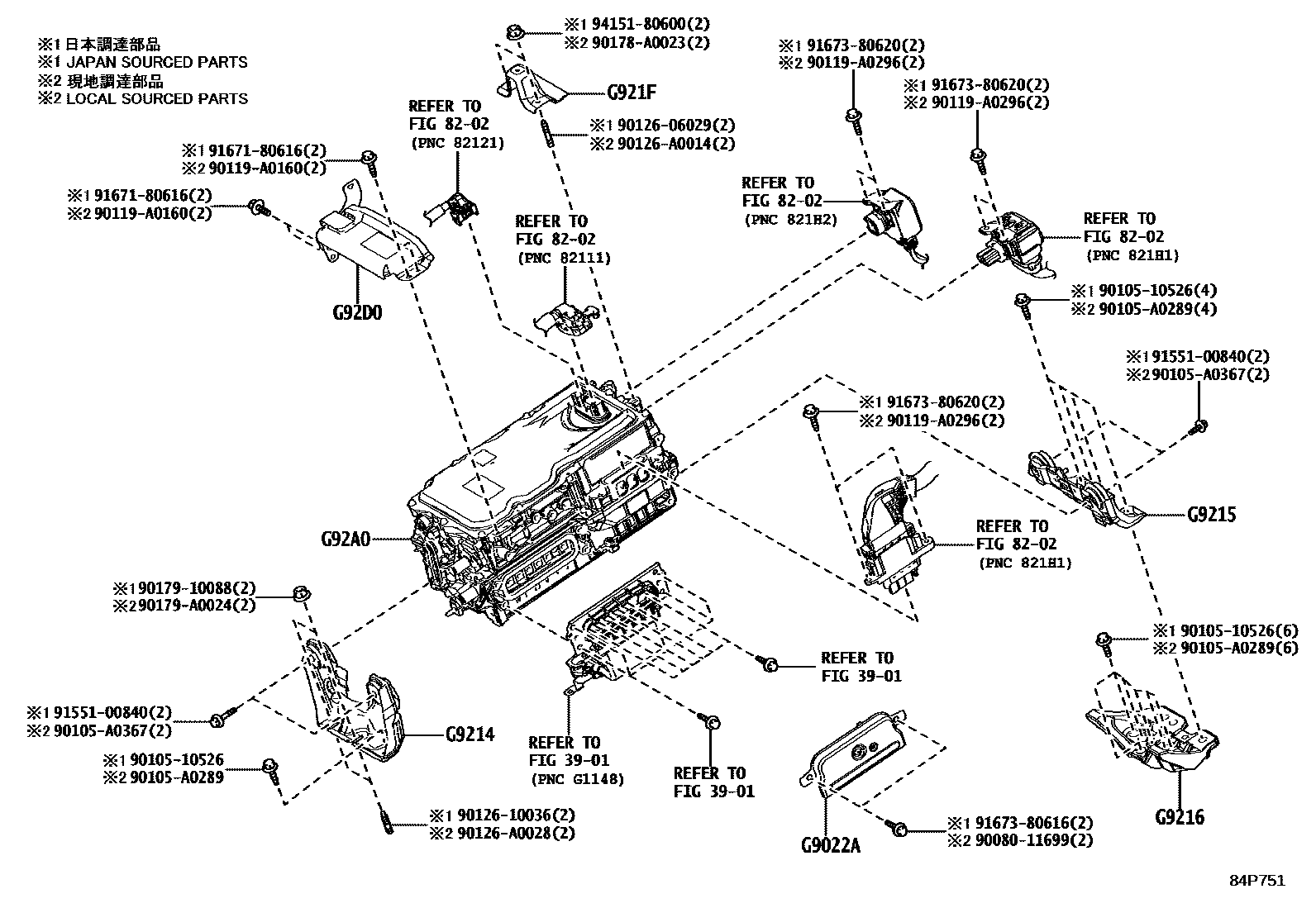

HEV INVERTER

0001 1 0002 1 0003 1 0004 1

3901TRANSAXLE ASSY(HEV OR BEV OR FCEV)

→ Go to FIG 39-01

8202WIRING & CLAMP

→ Go to FIG 82-02

G9022ACOVER SUB-ASSY, INVERTER, UPPER

mainG902247050iAALH15202210

mainG920348030iTALH17202210

G9214BRACKET, INVERTER, NO.1

mainG921448070iAALH15202210

G9215BRACKET, INVERTER, NO.2

mainG921542010iAALH15202210

G9216BRACKET, INVERTER, NO.3

mainG92160E020iAALH15202210

G921FPROTECTOR, INVERTER, NO.2

mainG921F42010iAALH15202210

G92A0INVERTER ASSY, HYBRID MOTOR CONTROL

mainG92A048381iAALH15202210-202302

mainG92A048382iAALH15202303-202312

mainG92A048383iAALH15202401

mainG92H048011iTALH17202210-202509

G92D0PROTECTOR ASSY, HYBRID INVERTER

mainG92D00E010iAALH15202210

9008011699

main90080-11699

9010510526

main90105-10526

90105A0289

main90105-A0289

90105A0367

main90105-A0367

90119A0160

main90119-A0160

90119A0296

main90119-A0296

9012606029

main90126-06029

9012610036

main90126-10036

90126A0014

main90126-A0014

90126A0028

main90126-A0028

90178A0023

main90178-A0023

9017910088

main90179-10088

90179A0024

main90179-A0024

9155100840

main91551-00840

9167180616

main91671-80616

9167380616

main91673-80616

9167380620

main91673-80620

9415180600

main94151-80600

27 parts on this diagram · 4 diagrams in section
