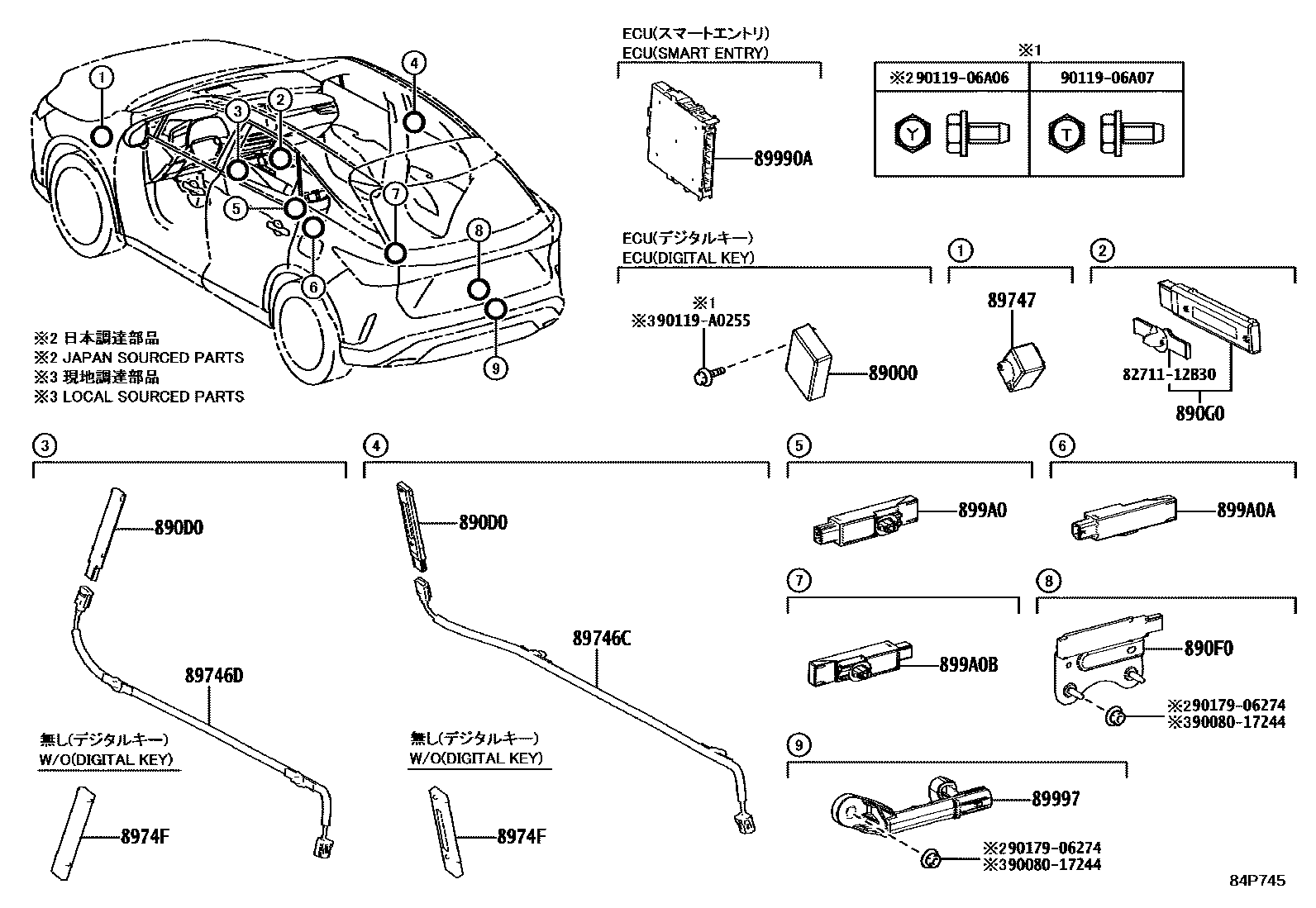

WIRELESS DOOR LOCK
89000COMPUTER ASSY, DIGITAL KEY
KEY PLATE-SMART KEY:2 & DIGITAL KEY
KEY PLATE-SMART KEY:2 & DIGITAL KEY
KEY PLATE-SMART KEY:2 & DIGITAL KEY
KEY PLATE-SMART KEY:2 & CARD KEY:1 & DIGITAL KEY; KEY PLATE-SMART KEY:2 & DIGITAL KEY
890D0RECEIVER ASSY, BLE DOOR DIGITAL KEY
KEY PLATE-SMART KEY:2 & DIGITAL KEY
890F0RECEIVER ASSY, BLE LUGGAGE DIGITAL KEY
KEY PLATE-SMART KEY:2 & DIGITAL KEY
890G0RECEIVER ASSY, BLE INDOOR DIGITAL KEY
KEY PLATE-SMART KEY:2 & DIGITAL KEY
89746CHARNESS, ELECTRICAL KEY WIRE, NO.1
KEY PLATE-SMART KEY:2 & DIGITAL KEY
89746DHARNESS, ELECTRICAL KEY WIRE, NO.2
KEY PLATE-SMART KEY:2 & DIGITAL KEY
89747BUZZER, WIRELESS DOOR LOCK
8974FCASE, W/O DIGITAL KEY
89990ACOMPUTER ASSY, SMART KEY
89997ANTENNA, ELECTRICAL KEY
899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2
899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3
8271112B30WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-12B30
9008017244
main90080-17244
9011906A06
main90119-06A06
9011906A07
main90119-06A07
90119A0255
main90119-A0255
9017906274
main90179-06274
19 parts on this diagram · 2 diagrams in section
