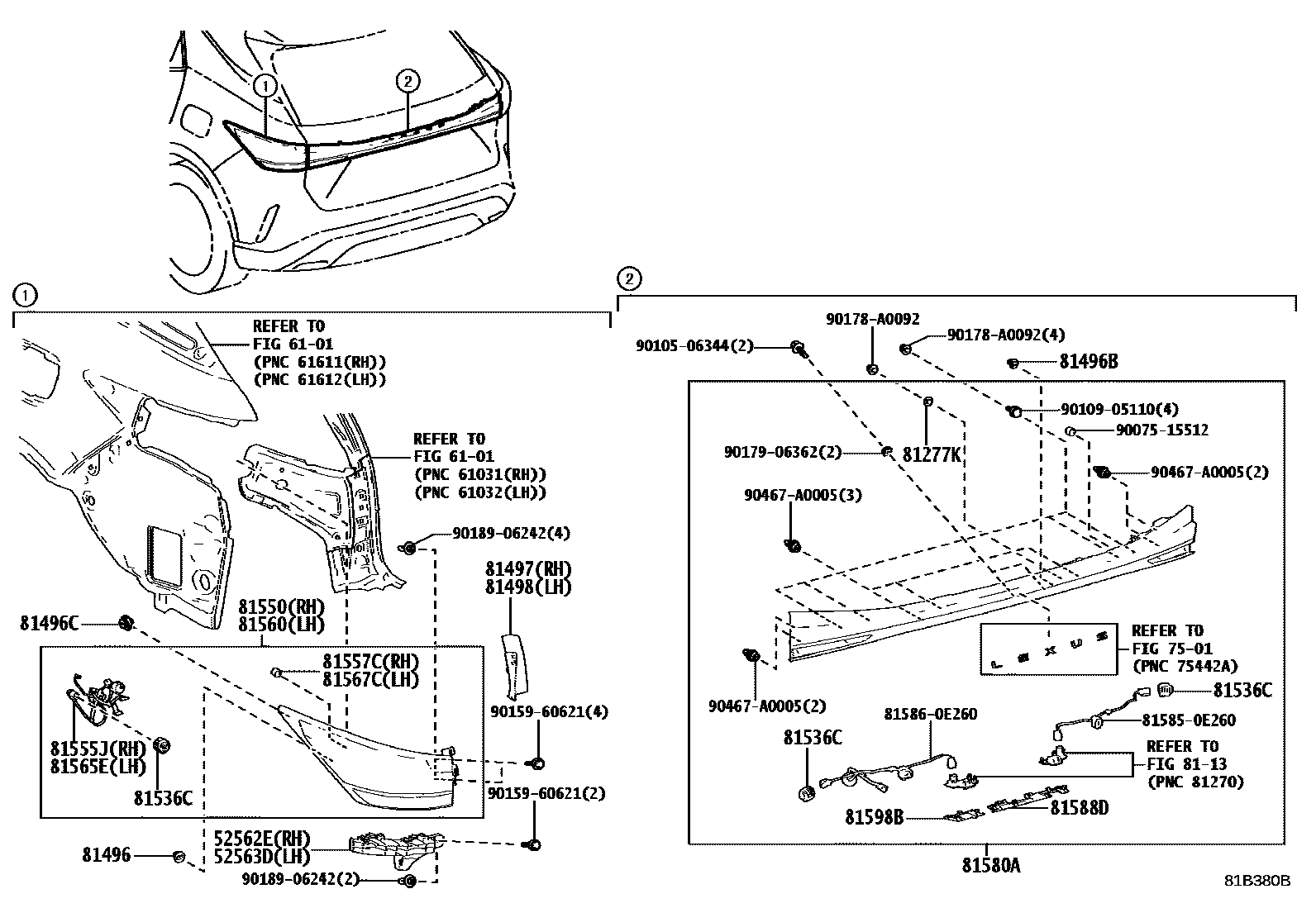

REAR COMBINATION LAMP

52562ERETAINER, REAR BUMPER, UPPER RH

main52562-0E080iAALH15,TALA1#,TALH17202210

52563DRETAINER, REAR BUMPER, UPPER LH

main52563-0E080iAALH15,TALA1#,TALH17202210

6101

7501

8113

81277KSHADE, LICENSE PLATE LAMP, RH

main81277-20240iAALH15,TALA1#,TALH17202210

81496GUIDE, REAR COMBINATION LAMP

main81496-52020iAALH15,TALA1#,TALH17202210

81496BGUIDE, REAR LAMP

main81496-78010iAALH15,TALA1#,TALH17202210

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-60010iAALH15,TALA1#,TALH17202210

81497COVER, REAR COMBINATION LAMP, RH

main81497-0E080iAALH15,TALA1#,TALH17202210

81498COVER, REAR COMBINATION LAMP, LH

main81498-0E080iAALH15,TALA1#,TALH17202210

81536CLED, TAIL & STOP LAMP

main8158A-0D610iAALH15,TALA1#,TALH17202210

81550LAMP ASSY, REAR COMBINATION, RH

main81550-0E320iAALH15,TALA1#,TALH17202210

81555JSOCKET & WIRE, REAR COMBINATION LAMP, RH

main81555-0E320iAALH15,TALA1#,TALH17202210

81557CCOVER, REAR COMBINATION LAMP, RH

main90075-15512iAALH15,TALA1#,TALH17202210

81560LAMP ASSY, REAR COMBINATION, LH

main81560-0E320iAALH15,TALA1#,TALH17202210

81565ESOCKET & WIRE, REAR COMBINATION LAMP, LH

main81565-0E320iAALH15,TALA1#,TALH17202210

81567CCOVER, REAR COMBINATION LAMP, LH

main90075-15512iAALH15,TALA1#,TALH17202210

81580ALAMP ASSY, REAR

main81580-0E260iAALH15,TALA1#,TALH17202210

81588DGARNISH, REAR LAMP, RH

main76811-0E330iAALH15,TALA1#,TALH17202210

81598BGARNISH, REAR LAMP, LH

main76812-0E110iAALH15,TALA1#,TALH17202210

815850E260SOCKET & WIRE, REAR LAMP

main81585-0E260

815860E260CORD, REAR LAMP

main81586-0E260

9007515512

main90075-15512

9010506344

main90105-06344

9010905110

main90109-05110

9015960621

main90159-60621

90178A0092

main90178-A0092

9017906362

main90179-06362

9018906242

main90189-06242

90467A0005

main90467-A0005

31 parts on this diagram · 1 diagram in section
