REAR SEAT & SEAT TRACK

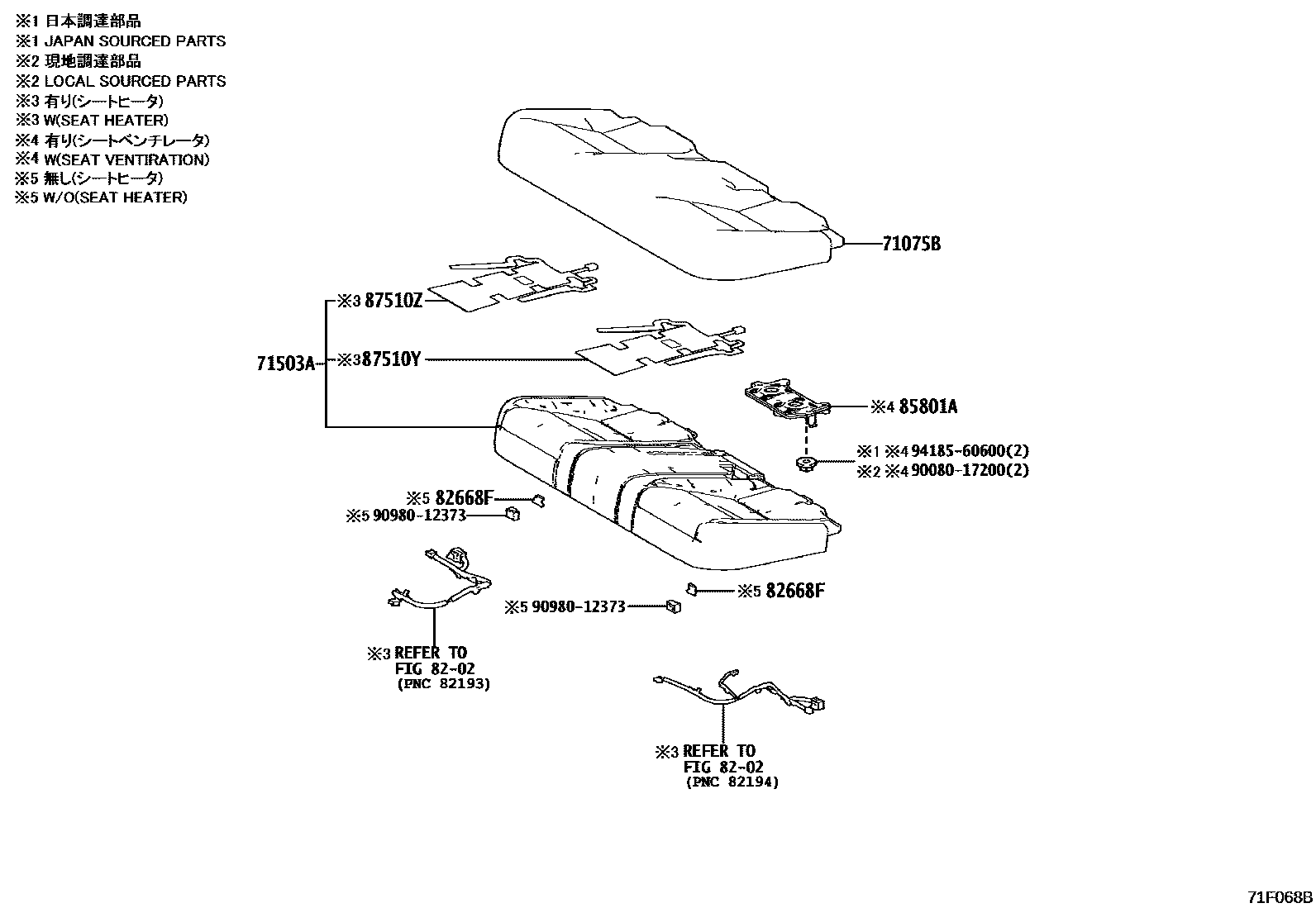

Parts diagram
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
main71075-0E830-C0i202210-202411
BLACK,TRIM2#; F SPORT&REAR SEAT-FOLDING(POWER SEAT)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT & REAR SEAT),BLACK,TRIM2#; F SPORT&SEAT COVER MATERIAL-LEATHER(SMOOTH)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT ONLY),BLACK,TRIM2#
main71075-0E830-C1i202411
BLACK,TRIM2#; F SPORT&REAR SEAT-FOLDING(POWER SEAT)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT & REAR SEAT),BLACK,TRIM2#; F SPORT&SEAT COVER MATERIAL-LEATHER(SMOOTH)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT ONLY),BLACK,TRIM2#
main71075-0E830-D0i202210-202411
DK.ROSE,TRIM3#; F SPORT&REAR SEAT-FOLDING(POWER SEAT)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT & REAR SEAT),DK.ROSE,TRIM3#; F SPORT&SEAT COVER MATERIAL-LEATHER(SMOOTH)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT ONLY),DK.ROSE,TRIM3#
main71075-0E830-D1i202411
DK.ROSE,TRIM3#; F SPORT&REAR SEAT-FOLDING(POWER SEAT)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT & REAR SEAT),DK.ROSE,TRIM3#; F SPORT&SEAT COVER MATERIAL-LEATHER(SMOOTH)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT ONLY),DK.ROSE,TRIM3#
main71075-0E780-A1supersedes 71075-0E770-A0i202309-202411
F SPORT DESIGN&SEAT COVER MATERIAL-LEATHER(SMOOTH)&FRONT SEAT ADJUSTER-8WAY POWER& WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT ONLY),FROMAGE,TRIM0#; F SPORT DESIGN&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT & REAR SEAT),FROMAGE,TRIM0#
main71075-0E780-A2supersedes 71075-0E770-A0i202411
F SPORT DESIGN&SEAT COVER MATERIAL-LEATHER(SMOOTH)&FRONT SEAT ADJUSTER-8WAY POWER& WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT ONLY),FROMAGE,TRIM0#; F SPORT DESIGN&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT & REAR SEAT),FROMAGE,TRIM0#; PREMIUM+ PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT ONLY),FROMAGE,TRIM0#; PREMIUM+ PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEATAIR CONDITIONER-WITH(FRONT SEAT & REAR SEAT),FROMAGE,TRIM0#
main71075-0E780-B0supersedes 71075-0E770-B0i202210-202411
PREMIUM+ PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT ONLY),WHITE ASH,TRIM1#; PREMIUM+ PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEATAIR CONDITIONER-WITH(FRONT SEAT & REAR SEAT),WHITE ASH,TRIM1#
main71075-0E780-B1supersedes 71075-0E770-B0i202411
F SPORT DESIGN&SEAT COVER MATERIAL-LEATHER(SMOOTH)&FRONT SEAT ADJUSTER-8WAY POWER& WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT ONLY),WHITE ASH,TRIM1#; F SPORT DESIGN&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT & REAR SEAT),WHITE ASH,TRIM1#; PREMIUM+ PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT ONLY),WHITE ASH,TRIM1#; PREMIUM+ PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEATAIR CONDITIONER-WITH(FRONT SEAT & REAR SEAT),WHITE ASH,TRIM1#
main71075-0E780-C0supersedes 71075-0E770-C0i202309-202411
F SPORT DESIGN&SEAT COVER MATERIAL-LEATHER(SMOOTH)&FRONT SEAT ADJUSTER-8WAY POWER& WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT ONLY),BLACK,TRIM2#; F SPORT DESIGN&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT & REAR SEAT),BLACK,TRIM2#
main71075-0E780-C1supersedes 71075-0E770-C0i202411
F SPORT DESIGN&SEAT COVER MATERIAL-LEATHER(SMOOTH)&FRONT SEAT ADJUSTER-8WAY POWER& WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT ONLY),BLACK,TRIM2#; F SPORT DESIGN&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT & REAR SEAT),BLACK,TRIM2#; PREMIUM+ PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT ONLY),BLACK,TRIM2#; PREMIUM+ PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEATAIR CONDITIONER-WITH(FRONT SEAT & REAR SEAT),BLACK,TRIM2#
main71075-0E780-E0supersedes 71075-0E770-E1i202210-202411
PREMIUM+ PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT ONLY),HAZEL,TRIM4#; PREMIUM+ PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEATAIR CONDITIONER-WITH(FRONT SEAT & REAR SEAT),HAZEL,TRIM4#
main71075-0E780-E1supersedes 71075-0E770-E1i202411
F SPORT DESIGN&SEAT COVER MATERIAL-LEATHER(SMOOTH)&FRONT SEAT ADJUSTER-8WAY POWER& WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT ONLY),HAZEL,TRIM4#; F SPORT DESIGN&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT & REAR SEAT),HAZEL,TRIM4#; PREMIUM+ PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT ONLY),HAZEL,TRIM4#; PREMIUM+ PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEATAIR CONDITIONER-WITH(FRONT SEAT & REAR SEAT),HAZEL,TRIM4#
main71075-0E800-A1supersedes 71075-0E770-A0i202210-202411
LUXURY PACKAGE&REAR SEAT-FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT)&FRONT SEAT ADJUSTER-10WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT & REAR SEAT),FROMAGE,TRIM0#; LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&FRONT SEAT ADJUSTER-10WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT ONLY),FROMAGE,TRIM0#
main71075-0E800-A2supersedes 71075-0E770-A0i202411
LUXURY PACKAGE&REAR SEAT-FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT)&FRONT SEAT ADJUSTER-10WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT & REAR SEAT),FROMAGE,TRIM0#
main71075-0E800-C0supersedes 71075-0E770-C0i202210-202411
LUXURY PACKAGE&REAR SEAT-FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT)&FRONT SEAT ADJUSTER-10WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT & REAR SEAT),BLACK,TRIM2#; LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&FRONT SEAT ADJUSTER-10WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT ONLY),BLACK,TRIM2#
main71075-0E800-C1supersedes 71075-0E770-C0i202411
LUXURY PACKAGE&REAR SEAT-FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT)&FRONT SEAT ADJUSTER-10WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT & REAR SEAT),BLACK,TRIM2#
main71075-0E800-E0supersedes 71075-0E770-E1i202210-202411
LUXURY PACKAGE&REAR SEAT-FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT)&FRONT SEAT ADJUSTER-10WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT & REAR SEAT),DK.SEPIA,TRIM4#; LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&FRONT SEAT ADJUSTER-10WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT ONLY),DK.SEPIA,TRIM4#
main71075-0E800-E1supersedes 71075-0E770-E1i202411
LUXURY PACKAGE&REAR SEAT-FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT)&FRONT SEAT ADJUSTER-10WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT & REAR SEAT),DK.SEPIA,TRIM4#
main71075-0E820-C1i202210
F SPORT&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT ONLY),BLACK,TRIM2#
main71075-0E820-D1i202210
F SPORT&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT ONLY),DK.ROSE,TRIM3#
71503APAD SUB-ASSY, REAR SEAT CUSHION
main71503-0E080i202210
main71503-0E090i202210
F SPORT&REAR SEAT-FOLDING(POWER SEAT)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT & REAR SEAT); LUXURY PACKAGE&REAR SEAT-FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT)&FRONT SEAT ADJUSTER-10WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT & REAR SEAT); PREMIUM+ PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEATAIR CONDITIONER-WITH(FRONT SEAT & REAR SEAT); REAR SEAT-FOLDING(POWER SEAT)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT)&SEAT AIR CONDITIONER-WITH(FRONT SEAT & REAR SEAT)
8202WIRING & CLAMP
→ Go to FIG 82-02
82668FHOLDER, CONNECTOR
main82666-60C10×2i202210-202510
85801ABLOWER SUB-ASSY, SEAT CUSHION CLIMATE, RH
main85801-0E060i202210
F SPORT&REAR SEAT-FOLDING(POWER SEAT)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT & REAR SEAT); LUXURY PACKAGE&REAR SEAT-FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT)&FRONT SEAT ADJUSTER-10WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT & REAR SEAT); PREMIUM+ PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEATAIR CONDITIONER-WITH(FRONT SEAT & REAR SEAT); REAR SEAT-FOLDING(POWER SEAT)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT)&SEAT AIR CONDITIONER-WITH(FRONT SEAT & REAR SEAT)
87510YHEATER ASSY, REAR NO.1 SEAT CUSHION, LH
main87510-0E550i202210
F SPORT&REAR SEAT-FOLDING(POWER SEAT)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT & REAR SEAT); LUXURY PACKAGE&REAR SEAT-FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT)&FRONT SEAT ADJUSTER-10WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT & REAR SEAT); PREMIUM+ PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEATAIR CONDITIONER-WITH(FRONT SEAT & REAR SEAT); REAR SEAT-FOLDING(POWER SEAT)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT)&SEAT AIR CONDITIONER-WITH(FRONT SEAT & REAR SEAT)
87510ZHEATER ASSY, REAR NO.1 SEAT CUSHION, RH
main87510-0E540i202210
F SPORT&REAR SEAT-FOLDING(POWER SEAT)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT & REAR SEAT); LUXURY PACKAGE&REAR SEAT-FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT)&FRONT SEAT ADJUSTER-10WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT & REAR SEAT); PREMIUM+ PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEATAIR CONDITIONER-WITH(FRONT SEAT & REAR SEAT); REAR SEAT-FOLDING(POWER SEAT)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT)&SEAT AIR CONDITIONER-WITH(FRONT SEAT & REAR SEAT)
9008017200
main90080-17200
9098012373
main90980-12373
9418560600
main94185-60600

10 parts on this diagram · 7 diagrams in section
