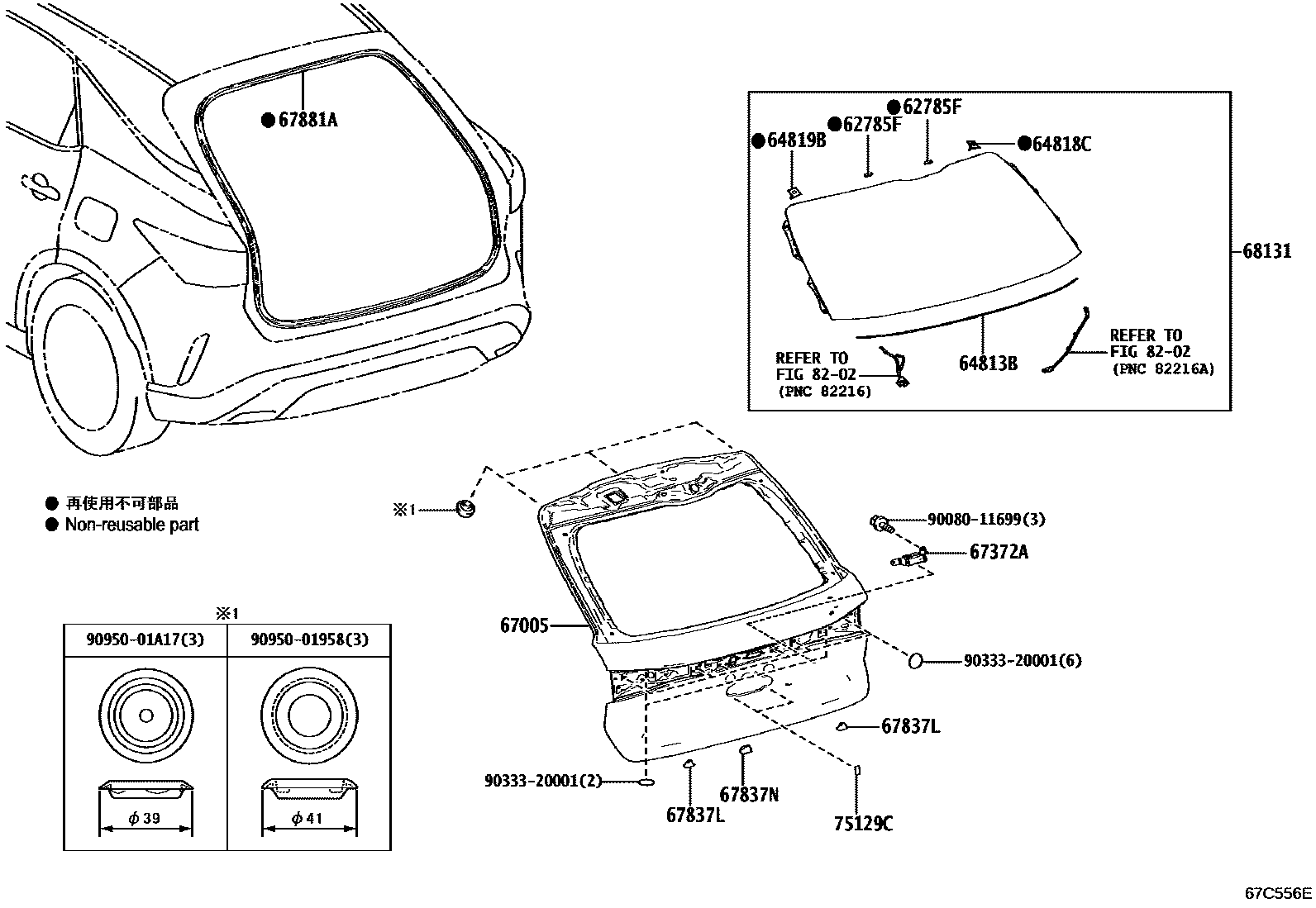

BACK DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

62785FSPACER, BACK DOOR GLASS

main62785-60030×2iAALH15,TALA1#,TALH17202210

64813BDAM, BACK WINDOW GLASS ADHESIVE

main64813-0E010iAALH15,TALA1#,TALH17202210

64818CSPACER, BACK WINDOW GLASS, NO.1

main64818-0E100iAALH15,TALA1#,TALH17202210

64819BSPACER, BACK WINDOW GLASS, NO.2

main64819-0E060iAALH15,TALA1#,TALH17202210

67005PANEL SUB-ASSY, BACK DOOR

main67005-0E630iAALH15,TALA1#,TALH17202210

67372AWEIGHT, BACK DOOR

main67372-0E060iAALH15,TALA1#,TALH17202210

67837LSEAL, DOOR DUST PROOF

main67837-48110×2iAALH15,TALA1#,TALH17202210

67837NSEAL, BACK DOOR DUST PROOF

main67837-48120iAALH15,TALA1#,TALH17202210

67881AWEATHERSTRIP, BACK DOOR

main67881-0E140iAALH15,TALA1#,TALH17202210

68131GLASS, BACK DOOR

main68105-0E250iAALH15,TALA1#,TALH17202210

75129CCUSHION, REAR LICENCE PLATE

main75129-AC010×2iAALH15,TALA1#,TALH17202210

8202WIRING & CLAMP

→ Go to FIG 82-02

9008011699

main90080-11699

9033320001

main90333-20001

9095001958

main90950-01958

9095001A17

main90950-01A17

16 parts on this diagram · 2 diagrams in section
