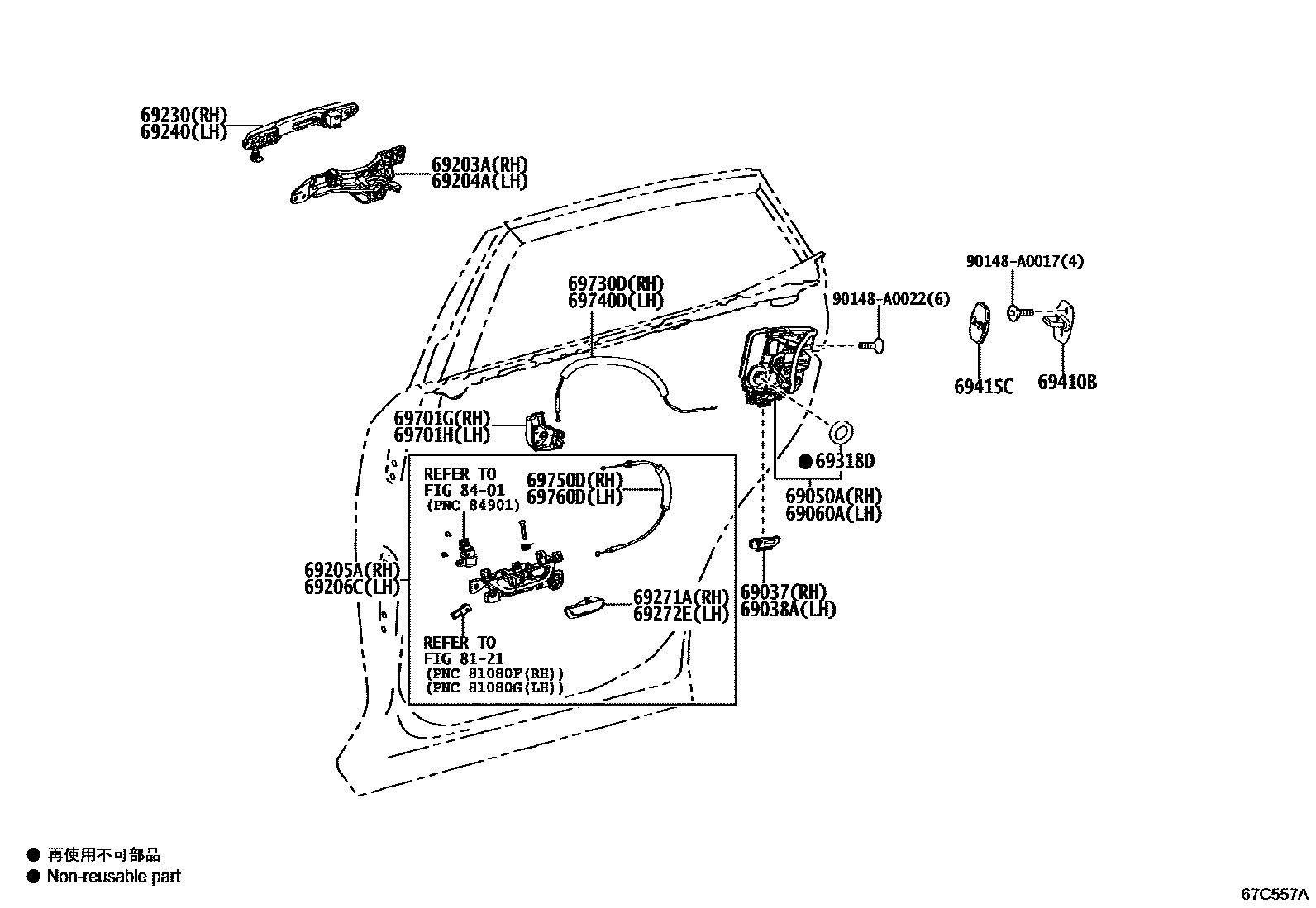

REAR DOOR LOCK & HANDLE

69037COVER SUB-ASSY, REAR DOOR LOCK, RH

main69037-0E020iAALH15,TALA1#,TALH17202310

main69037-78010iAALH15,TALA1#,TALH17202210-202309

69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH

main69038-0E020iAALH15,TALA1#,TALH17202310

main69038-78010iAALH15,TALA1#,TALH17202210-202309

69050ALOCK ASSY, REAR DOOR W/MOTOR, RH

main69050-0E080iAALH15,TALA1#,TALH17202309

main69050-78030iAALH15,TALA1#,TALH17202210-202308

69060ALOCK ASSY, REAR DOOR W/MOTOR, LH

main69060-0E080iAALH15,TALA1#,TALH17202309

main69060-78030iAALH15,TALA1#,TALH17202210-202308

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-0E210iAALH15,TALA1#,TALH17202411

main69203-48080iAALH15,TALA1#,TALH17202210-202410

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-0E210iAALH15,TALA1#,TALH17202411

main69204-48080iAALH15,TALA1#,TALH17202210-202410

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69070-48041iTALH17202210-202411

main69070-48130supersedes 69070-48021iAALH15,TALA1#; TALH17202411

ILLUMINATED ENTRY SYSTEM-MULTI-COLOR

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69080-48041iTALH17202210-202411

main69080-48120supersedes 69080-48021iAALH15,TALA1#; TALH17202411

ILLUMINATED ENTRY SYSTEM-MULTI-COLOR

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69210-0E330-A0iAALH15,TALA1#,TALH17202411

WHITE NOVA GF.,083

main69210-0E330-A1iAALH15,TALA1#202411-202510

SONIC QUARTZ,085

main69210-0E330-B0iAALH15,TALA1#,TALH17202411

SONIC CHROME,1L1

main69210-0E330-B1iAALH15,TALA1#,TALH17202411

SONIC IRIDIUM,1L2

main69210-0E330-B2iAALH15,TALA1#,TALH17202411

TITANIUM CARBIDE GRAY,1L8

main69210-0E330-C0iAALH15,TALA1#,TALH17202411

GRAPHITE BLACK GF.,223

main69210-0E330-D0iAALH15,TALA1#202411

RED MC.CS.,3R1

main69210-0E330-E0iAALH15,TALA1#,TALH17202411

SONIC COPPER,4Y5

main69210-0E330-G0iAALH15,TALA1#202411

TERRANE KHAKI M.M.,6X4

main69210-0E330-J0iAALH15,TALA1#202411

DEEP BLUE MC.,8X5

main69210-0E330-J1iAALH15,TALA1#202411

CELESTIAL BLUE GF.,8Y6

main69210-48150-A0iAALH15,TALA1#,TALH17202210-202304

WHITE NOVA GF.,083

main69210-48150-A1iAALH15,TALA1#202210-202304

SONIC QUARTZ,085

main69210-48150-B0iAALH15,TALA1#,TALH17202210-202304

MERCURY GRAY MC.,1H9

main69210-48150-B1iAALH15,TALA1#,TALH17202210-202304

SONIC IRIDIUM,1L2

main69210-48150-C0iAALH15,TALA1#,TALH17202210-202304

GRAPHITE BLACK GF.,223

main69210-48150-D0iAALH15,TALA1#202210-202304

RED MC.CS.,3R1

main69210-48150-E0iAALH15,TALA1#,TALH17202210-202304

SONIC COPPER,4Y5

main69210-48150-G0iAALH15,TALA1#202210-202304

TERRANE KHAKI M.M.,6X4

main69210-48150-J0iAALH15,TALA1#202210-202304

DEEP BLUE MC.,8X5

main69210-48150-J1iAALH15,TALA1#202210-202304

CELESTIAL BLUE GF.,8Y6

main69210-48151-A0iAALH15,TALA1#,TALH17202305-202306

WHITE NOVA GF.,083

main69210-48151-A1iAALH15,TALA1#202305-202306

SONIC QUARTZ,085

main69210-48151-B1iAALH15,TALA1#,TALH17202305-202306

SONIC IRIDIUM,1L2

main69210-48151-B3iAALH15,TALA1#,TALH17202305-202306

SONIC CHROME,1L1

main69210-48151-C0iAALH15,TALA1#,TALH17202305-202306

GRAPHITE BLACK GF.,223

main69210-48151-D0iAALH15,TALA1#202305-202306

RED MC.CS.,3R1

main69210-48151-E0iAALH15,TALA1#,TALH17202305-202306

SONIC COPPER,4Y5

main69210-48151-G0iAALH15,TALA1#202305-202306

TERRANE KHAKI M.M.,6X4

main69210-48151-J0iAALH15,TALA1#202305-202306

DEEP BLUE MC.,8X5

main69210-48151-J1iAALH15,TALA1#202305-202306

CELESTIAL BLUE GF.,8Y6

main69210-48152-A0iAALH15,TALA1#,TALH17202306-202411

WHITE NOVA GF.,083

main69210-48152-A1iAALH15,TALA1#202306-202411

SONIC QUARTZ,085

main69210-48152-B1iAALH15,TALA1#,TALH17202306-202411

SONIC IRIDIUM,1L2

main69210-48152-B3iAALH15,TALA1#,TALH17202306-202411

SONIC CHROME,1L1

main69210-48152-C0iAALH15,TALA1#,TALH17202306-202411

GRAPHITE BLACK GF.,223

main69210-48152-D0iAALH15,TALA1#202306-202411

RED MC.CS.,3R1

main69210-48152-E0iAALH15,TALA1#,TALH17202306-202411

SONIC COPPER,4Y5

main69210-48152-G0iAALH15,TALA1#202306-202411

TERRANE KHAKI M.M.,6X4

main69210-48152-J0iAALH15,TALA1#202306-202411

DEEP BLUE MC.,8X5

main69210-48152-J1iAALH15,TALA1#202306-202411

CELESTIAL BLUE GF.,8Y6

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69220-0E100-A0iAALH15,TALA1#,TALH17202411

WHITE NOVA GF.,083

main69220-0E100-A1iAALH15,TALA1#202411-202510

SONIC QUARTZ,085

main69220-0E100-B0iAALH15,TALA1#,TALH17202411

SONIC CHROME,1L1

main69220-0E100-B1iAALH15,TALA1#,TALH17202411

SONIC IRIDIUM,1L2

main69220-0E100-B2iAALH15,TALA1#,TALH17202411

TITANIUM CARBIDE GRAY,1L8

main69220-0E100-C0iAALH15,TALA1#,TALH17202411

GRAPHITE BLACK GF.,223

main69220-0E100-D0iAALH15,TALA1#202411

RED MC.CS.,3R1

main69220-0E100-E0iAALH15,TALA1#,TALH17202411

SONIC COPPER,4Y5

main69220-0E100-G0iAALH15,TALA1#202411

TERRANE KHAKI M.M.,6X4

main69220-0E100-J0iAALH15,TALA1#202411

DEEP BLUE MC.,8X5

main69220-0E100-J1iAALH15,TALA1#202411

CELESTIAL BLUE GF.,8Y6

main69220-48090-A0iAALH15,TALA1#,TALH17202210-202304

WHITE NOVA GF.,083

main69220-48090-A1iAALH15,TALA1#202210-202304

SONIC QUARTZ,085

main69220-48090-B0iAALH15,TALA1#,TALH17202210-202304

MERCURY GRAY MC.,1H9

main69220-48090-B1iAALH15,TALA1#,TALH17202210-202304

SONIC IRIDIUM,1L2

main69220-48090-C0iAALH15,TALA1#,TALH17202210-202304

GRAPHITE BLACK GF.,223

main69220-48090-D0iAALH15,TALA1#202210-202304

RED MC.CS.,3R1

main69220-48090-E0iAALH15,TALA1#,TALH17202210-202304

SONIC COPPER,4Y5

main69220-48090-G0iAALH15,TALA1#202210-202304

TERRANE KHAKI M.M.,6X4

main69220-48090-J0iAALH15,TALA1#202210-202304

DEEP BLUE MC.,8X5

main69220-48090-J1iAALH15,TALA1#202210-202304

CELESTIAL BLUE GF.,8Y6

main69220-48091-A0iAALH15,TALA1#,TALH17202305-202306

WHITE NOVA GF.,083

main69220-48091-A1iAALH15,TALA1#202305-202306

SONIC QUARTZ,085

main69220-48091-B1iAALH15,TALA1#,TALH17202305-202306

SONIC IRIDIUM,1L2

main69220-48091-B3iAALH15,TALA1#,TALH17202305-202306

SONIC CHROME,1L1

main69220-48091-C0iAALH15,TALA1#,TALH17202305-202306

GRAPHITE BLACK GF.,223

main69220-48091-D0iAALH15,TALA1#202305-202306

RED MC.CS.,3R1

main69220-48091-E0iAALH15,TALA1#,TALH17202305-202306

SONIC COPPER,4Y5

main69220-48091-G0iAALH15,TALA1#202305-202306

TERRANE KHAKI M.M.,6X4

main69220-48091-J0iAALH15,TALA1#202305-202306

DEEP BLUE MC.,8X5

main69220-48091-J1iAALH15,TALA1#202305-202306

CELESTIAL BLUE GF.,8Y6

main69220-48092-A0iAALH15,TALA1#,TALH17202306-202411

WHITE NOVA GF.,083

main69220-48092-A1iAALH15,TALA1#202306-202411

SONIC QUARTZ,085

main69220-48092-B1iAALH15,TALA1#,TALH17202306-202411

SONIC IRIDIUM,1L2

main69220-48092-B3iAALH15,TALA1#,TALH17202306-202411

SONIC CHROME,1L1

main69220-48092-C0iAALH15,TALA1#,TALH17202306-202411

GRAPHITE BLACK GF.,223

main69220-48092-D0iAALH15,TALA1#202306-202411

RED MC.CS.,3R1

main69220-48092-E0iAALH15,TALA1#,TALH17202306-202411

SONIC COPPER,4Y5

main69220-48092-G0iAALH15,TALA1#202306-202411

TERRANE KHAKI M.M.,6X4

main69220-48092-J0iAALH15,TALA1#202306-202411

DEEP BLUE MC.,8X5

main69220-48092-J1iAALH15,TALA1#202306-202411

CELESTIAL BLUE GF.,8Y6

69271AHANDLE, REAR DOOR INSIDE, RH

main69271-48020iAALH15,TALA1#,TALH17202210

69272EHANDLE, REAR DOOR INSIDE, LH

main69272-48020iAALH15,TALA1#,TALH17202210

69318DSEAL, DOOR LOCK WIRING HARNESS

main69318-51010×2iAALH15,TALA1#,TALH17202210

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-33030×2iAALH15,TALA1#,TALH17202210

69415CCOVER, DOOR LOCK STRIKER, REAR

main69415-0E010×2iAALH15,TALA1#,TALH17202210

69701GBELLCRANK SUB-ASSY, REAR DOOR LOCK CONTROL, UPPER, RH

main69701-48030iAALH15,TALA1#,TALH17202210

69701HBELLCRANK SUB-ASSY, REAR DOOR LOCK CONTROL, UPPER, LH

main69701-48040iAALH15,TALA1#,TALH17202210

69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH

main69730-0E130iAALH15,TALA1#,TALH17202210

69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH

main69730-0E130iAALH15,TALA1#,TALH17202210

69750DCABLE ASSY, REAR DOOR INSIDE LOCKING, RH

main69750-48130iTALH17202210-202411

main69750-48190supersedes 69750-48130iAALH15,TALA1#; TALH17202411

ILLUMINATED ENTRY SYSTEM-MULTI-COLOR

69760DCABLE ASSY, REAR DOOR INSIDE LOCKING, LH

main69750-48130iTALH17202210-202411

main69750-48190supersedes 69750-48130iAALH15,TALA1#; TALH17202411

ILLUMINATED ENTRY SYSTEM-MULTI-COLOR

8121INTERIOR LAMP

→ Go to FIG 81-21

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90148A0017

main90148-A0017

90148A0022

main90148-A0022

25 parts on this diagram · 1 diagram in section
