FRONT DOOR LOCK & HANDLE

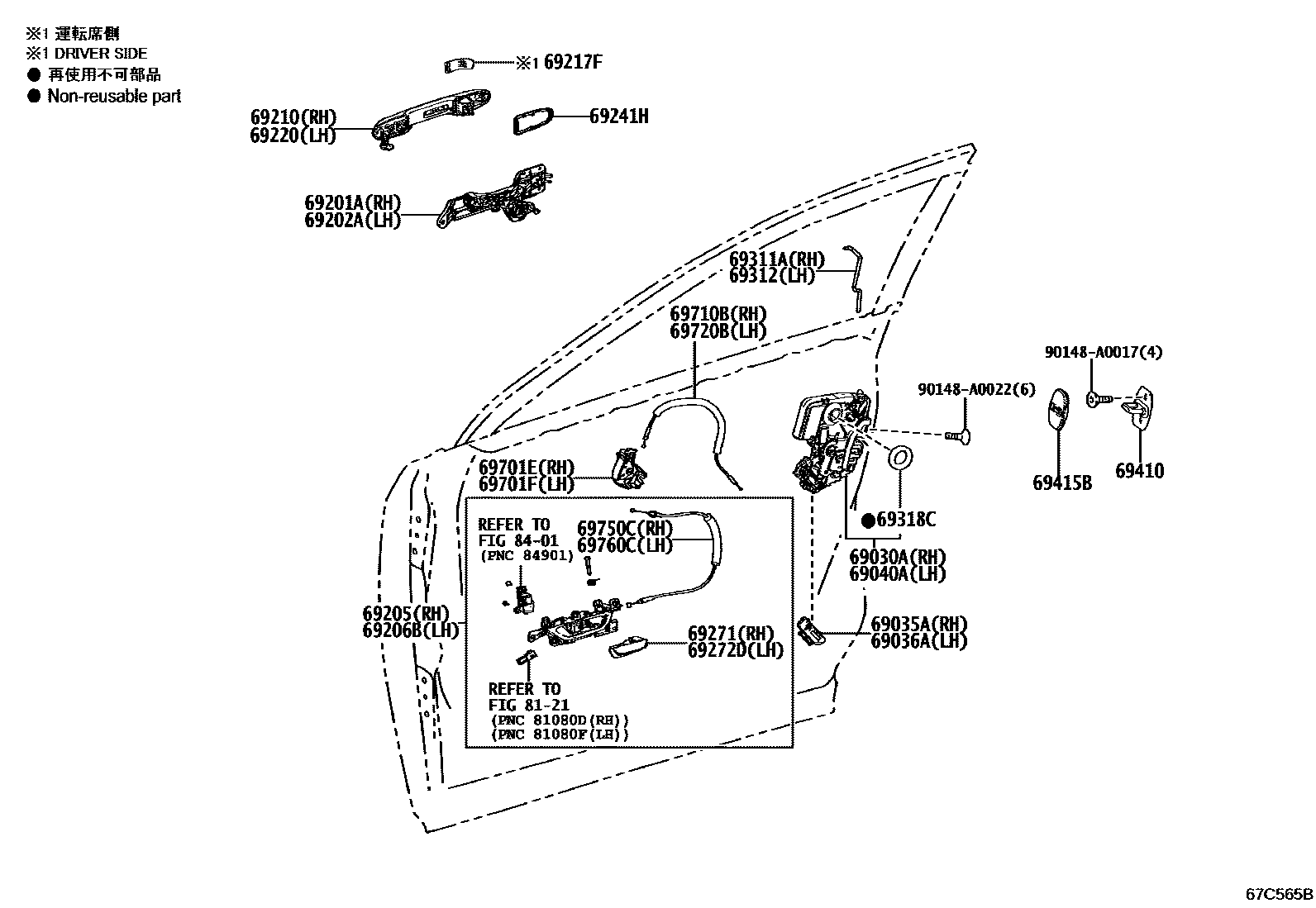

Parts diagram
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
main69030-0E070i202309
main69030-78110i202210-202308
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
main69035-0E020i202310
main69035-78010i202210-202309
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
main69036-0E020i202310
main69036-78010i202210-202309
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
main69040-0E070i202309
main69040-78090i202210-202308
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
main69201-0E120i202411
main69201-78050i202210-202410
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
main69202-0E160i202411
main69202-78050i202210-202410
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
main69070-48031i202210-202411
main69070-48120supersedes 69070-48011i202411
ILLUMINATED ENTRY SYSTEM-MULTI-COLOR
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
main69080-48031i202210-202411
main69080-48110supersedes 69080-48011i202411
ILLUMINATED ENTRY SYSTEM-MULTI-COLOR
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
main69210-0E320-A0i202411
WHITE NOVA GF.,083
main69210-0E320-A1i202411-202510
SONIC QUARTZ,085
main69210-0E320-B0i202411
SONIC CHROME,1L1
main69210-0E320-B1i202411
SONIC IRIDIUM,1L2
main69210-0E320-B2i202411
TITANIUM CARBIDE GRAY,1L8
main69210-0E320-C0i202411
GRAPHITE BLACK GF.,223
main69210-0E320-D0i202411
RED MC.CS.,3R1
main69210-0E320-E0i202411
SONIC COPPER,4Y5
main69210-0E320-G0i202411
TERRANE KHAKI M.M.,6X4
main69210-0E320-J0i202411
DEEP BLUE MC.,8X5
main69210-0E320-J1i202411
CELESTIAL BLUE GF.,8Y6
main69210-48180-A0i202210-202304
WHITE NOVA GF.,083
main69210-48180-A1i202210-202304
SONIC QUARTZ,085
main69210-48180-B0i202210-202304
MERCURY GRAY MC.,1H9
main69210-48180-B3i202210-202304
SONIC IRIDIUM,1L2
main69210-48180-C0i202210-202304
GRAPHITE BLACK GF.,223
main69210-48180-D0i202210-202304
RED MC.CS.,3R1
main69210-48180-E0i202210-202304
SONIC COPPER,4Y5
main69210-48180-G0i202210-202304
TERRANE KHAKI M.M.,6X4
main69210-48180-J1i202210-202304
DEEP BLUE MC.,8X5
main69210-48180-J2i202210-202304
CELESTIAL BLUE GF.,8Y6
main69210-48181-A0i202305-202306
WHITE NOVA GF.,083
main69210-48181-A1i202305-202306
SONIC QUARTZ,085
main69210-48181-B0i202305-202306
1H9
main69210-48181-B2i202305-202306
SONIC CHROME,1L1
main69210-48181-B3i202305-202306
SONIC IRIDIUM,1L2
main69210-48181-C0i202305-202306
GRAPHITE BLACK GF.,223
main69210-48181-D0i202305-202306
RED MC.CS.,3R1
main69210-48181-E0i202305-202306
SONIC COPPER,4Y5
main69210-48181-G0i202305-202306
TERRANE KHAKI M.M.,6X4
main69210-48181-J1i202305-202306
DEEP BLUE MC.,8X5
main69210-48181-J2i202305-202306
CELESTIAL BLUE GF.,8Y6
main69210-48182-A0i202306-202410
WHITE NOVA GF.,083
main69210-48182-A1i202306-202410
SONIC QUARTZ,085
main69210-48182-B0i202306-202308
1H9
main69210-48182-B2i202306-202410
SONIC CHROME,1L1
main69210-48182-B3i202306-202410
SONIC IRIDIUM,1L2
main69210-48182-C0i202306-202410
GRAPHITE BLACK GF.,223
main69210-48182-D0i202306-202410
RED MC.CS.,3R1
main69210-48182-E0i202306-202410
SONIC COPPER,4Y5
main69210-48182-G0i202306-202410
TERRANE KHAKI M.M.,6X4
main69210-48182-J1i202306-202410
DEEP BLUE MC.,8X5
main69210-48182-J2i202306-202410
CELESTIAL BLUE GF.,8Y6
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
main69217-0E150-A1i202411
WHITE NOVA GF.,083
main69217-0E150-A2i202411-202510
SONIC QUARTZ,085
main69217-0E150-B1i202411
SONIC CHROME,1L1
main69217-0E150-B2i202411
TITANIUM CARBIDE GRAY,1L8
main69217-0E150-B4i202411
SONIC IRIDIUM,1L2
main69217-0E150-C0i202411
GRAPHITE BLACK GF.,223
main69217-0E150-D0i202411
RED MC.CS.,3R1
main69217-0E150-E1i202411
SONIC COPPER,4Y5
main69217-0E150-G0i202411
TERRANE KHAKI M.M.,6X4
main69217-0E150-J0i202411
DEEP BLUE MC.,8X5
main69217-0E150-J2i202411
CELESTIAL BLUE GF.,8Y6
main69217-78020-A0i202210-202411
WHITE NOVA GF.,083
main69217-78020-A1i202210-202411
SONIC QUARTZ,085
main69217-78020-B1i202308-202411
SONIC CHROME,1L1
main69217-78020-B2i202210-202308
MERCURY GRAY MC.,1H9
main69217-78020-B3i202210-202411
SONIC IRIDIUM,1L2
main69217-78020-C1i202210-202411
GRAPHITE BLACK GF.,223
main69217-78020-D1i202210-202411
RED MC.CS.,3R1
main69217-78020-E1i202210-202411
SONIC COPPER,4Y5
main69217-78020-G0i202210-202411
TERRANE KHAKI M.M.,6X4
main69217-78020-J1i202210-202411
CELESTIAL BLUE GF.,8Y6
main69217-78020-J2i202210-202411
DEEP BLUE MC.,8X5
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
main69220-0E090-A0i202411
WHITE NOVA GF.,083
main69220-0E090-A1i202411-202510
SONIC QUARTZ,085
main69220-0E090-B0i202411
SONIC CHROME,1L1
main69220-0E090-B1i202411
SONIC IRIDIUM,1L2
main69220-0E090-B2i202411
TITANIUM CARBIDE GRAY,1L8
main69220-0E090-C0i202411
GRAPHITE BLACK GF.,223
main69220-0E090-D0i202411
RED MC.CS.,3R1
main69220-0E090-E0i202411
SONIC COPPER,4Y5
main69220-0E090-G0i202411
TERRANE KHAKI M.M.,6X4
main69220-0E090-J0i202411
DEEP BLUE MC.,8X5
main69220-0E090-J1i202411
CELESTIAL BLUE GF.,8Y6
main69220-48120-A0i202210-202304
WHITE NOVA GF.,083
main69220-48120-A1i202210-202304
SONIC QUARTZ,085
main69220-48120-B0i202210-202304
MERCURY GRAY MC.,1H9
main69220-48120-B3i202210-202304
SONIC IRIDIUM,1L2
main69220-48120-C0i202210-202304
GRAPHITE BLACK GF.,223
main69220-48120-D0i202210-202304
RED MC.CS.,3R1
main69220-48120-E0i202210-202304
SONIC COPPER,4Y5
main69220-48120-G0i202210-202304
TERRANE KHAKI M.M.,6X4
main69220-48120-J1i202210-202304
DEEP BLUE MC.,8X5
main69220-48120-J2i202210-202304
CELESTIAL BLUE GF.,8Y6
main69220-48121-A0i202305-202306
WHITE NOVA GF.,083
main69220-48121-A1i202305-202306
SONIC QUARTZ,085
main69220-48121-B0i202305-202306
1H9
main69220-48121-B2i202305-202306
SONIC CHROME,1L1
main69220-48121-B3i202305-202306
SONIC IRIDIUM,1L2
main69220-48121-C0i202305-202306
GRAPHITE BLACK GF.,223
main69220-48121-D0i202305-202306
RED MC.CS.,3R1
main69220-48121-E0i202305-202306
SONIC COPPER,4Y5
main69220-48121-G0i202305-202306
TERRANE KHAKI M.M.,6X4
main69220-48121-J1i202305-202306
DEEP BLUE MC.,8X5
main69220-48121-J2i202305-202306
CELESTIAL BLUE GF.,8Y6
main69220-48122-A0i202306-202410
WHITE NOVA GF.,083
main69220-48122-A1i202306-202410
SONIC QUARTZ,085
main69220-48122-B0i202306-202308
1H9
main69220-48122-B2i202306-202410
SONIC CHROME,1L1
main69220-48122-B3i202306-202410
SONIC IRIDIUM,1L2
main69220-48122-C0i202306-202410
GRAPHITE BLACK GF.,223
main69220-48122-D0i202306-202410
RED MC.CS.,3R1
main69220-48122-E0i202306-202410
SONIC COPPER,4Y5
main69220-48122-G0i202306-202410
TERRANE KHAKI M.M.,6X4
main69220-48122-J1i202306-202410
DEEP BLUE MC.,8X5
main69220-48122-J2i202306-202410
CELESTIAL BLUE GF.,8Y6
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
main69241-0E170×2i202411
main69241-48060×2i202210-202410
69271HANDLE, FRONT DOOR INSIDE, RH
main69271-48020i202210
69272DHANDLE, FRONT DOOR INSIDE, LH
main69272-48020i202210
69311AROD, FRONT DOOR LOCK OPEN, RH
main69311-0E130i202210
69312ROD, FRONT DOOR LOCK OPEN, LH
main69312-0E120i202210
69318CSEAL, DOOR LOCK WIRING HARNESS
main69318-51010×2i202210
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
main69410-33030×2i202210
69415BCOVER, DOOR LOCK STRIKER, FRONT
main69415-0E010×2i202210
69701EBELLCRANK SUB-ASSY, FRONT DOOR LOCK CONTROL, UPPER, RH
main69701-48010i202210
69701FBELLCRANK SUB-ASSY, FRONT DOOR LOCK CONTROL, UPPER, LH
main69701-48020i202210
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
main69710-0E140i202210
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
main69710-0E140i202210
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
main69750-48100i202210-202411
main69750-48180supersedes 69750-48100i202411
ILLUMINATED ENTRY SYSTEM-MULTI-COLOR
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
main69750-48100i202210-202411
main69750-48180supersedes 69750-48100i202411
ILLUMINATED ENTRY SYSTEM-MULTI-COLOR
8121INTERIOR LAMP
→ Go to FIG 81-21
8401SWITCH & RELAY & COMPUTER
→ Go to FIG 84-01
90148A0017
main90148-A0017
90148A0022
main90148-A0022

29 parts on this diagram · 1 diagram in section
