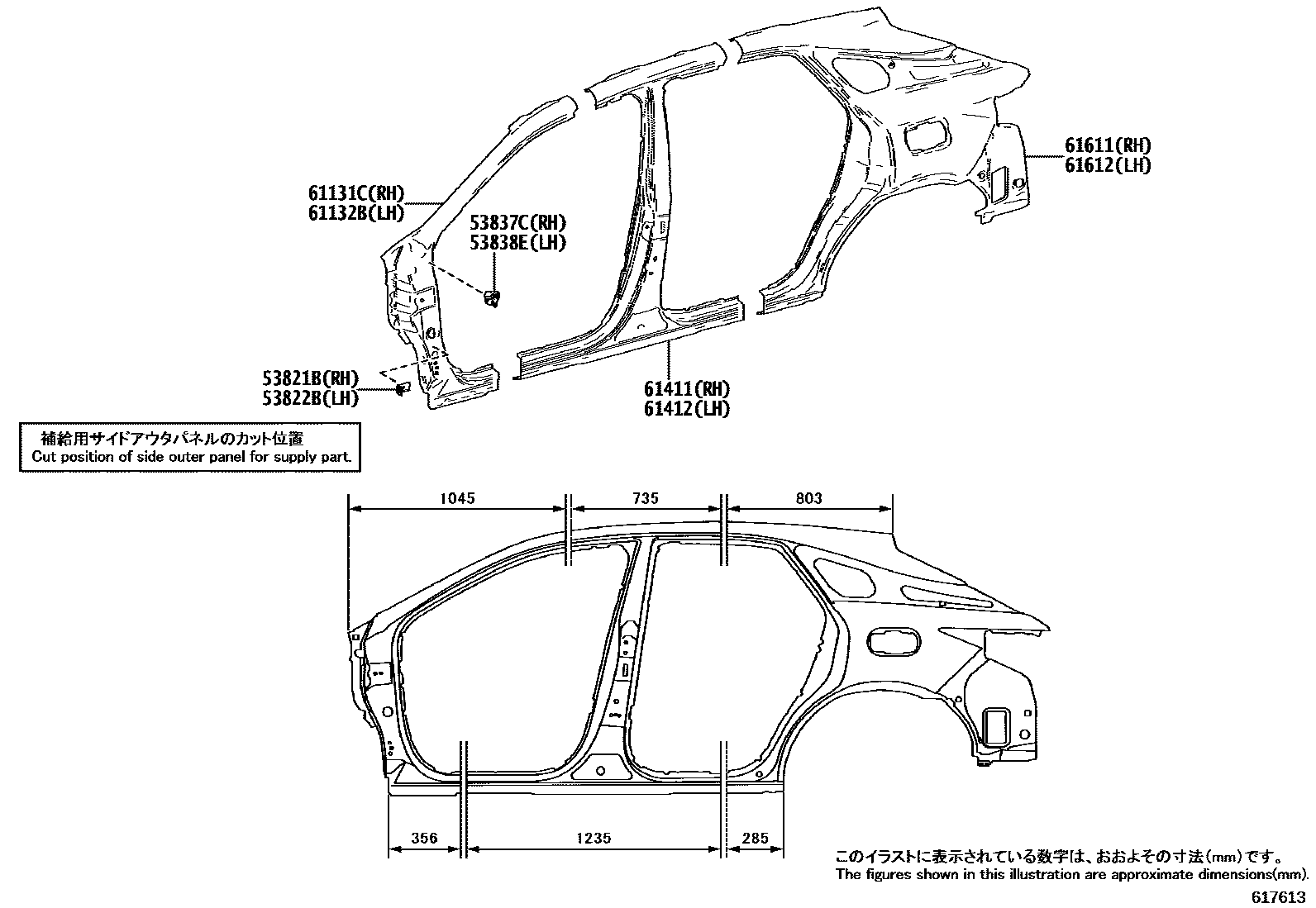

SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL, RH 0003 1INNER PANEL,LH

53821BBRACKET, FRONT FENDER, REAR RH

main53821-0E160iAALH15,TALA1#,TALH17202210

53822BBRACKET, FRONT FENDER, REAR LH

main53821-0E160iAALH15,TALA1#,TALH17202210

53837CBRACKET, FRONT SIDE PANEL, NO.2 RH

main53837-0E130iAALH15,TALA1#,TALH17202210

53838EBRACKET, FRONT SIDE PANEL, NO.2 LH

main53838-0E130iAALH15,TALA1#,TALH17202210

61131CPILLAR, FRONT BODY, OUTER RH

main61101-0E120iAALH15,TALA1#,TALH17202210

61132BPILLAR, FRONT BODY, OUTER LH

main61102-0E120iAALH15,TALA1#,TALH17202210

61411PANEL, ROCKER, OUTER RH

main61311-0E150iAALH15,TALA1#,TALH17202210

61412PANEL, ROCKER, OUTER LH

main61312-0E150iAALH15,TALA1#,TALH17202210

61611PANEL, QUARTER, RH

main61601-0E150iAALH15,TALA1#,TALH17202210

61612PANEL, QUARTER, LH

main61602-0E150iAALH15,TALA1#,TALH17202210

10 parts on this diagram · 3 diagrams in section
