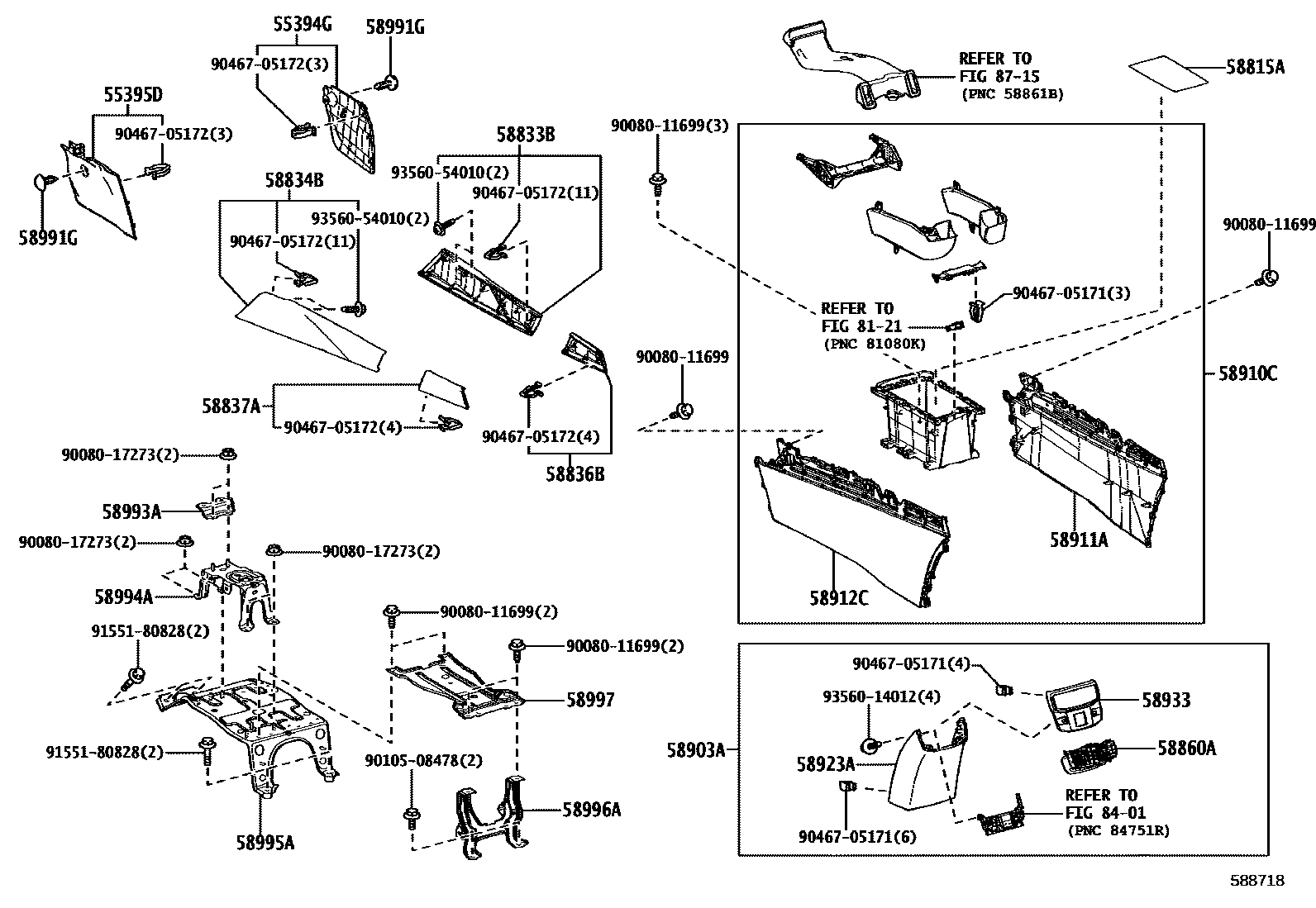

CONSOLE BOX & BRACKET
55394GCOVER, INSTRUMENT PANEL BRACE, INNER NO.1 RH
BLACK,TRIM0#,1#,2#,3#,4#; BLACK,TRIM0#,1#,2#,4#; BLACK,TRIM2#,3#
55395DCOVER, INSTRUMENT PANEL BRACE, INNER NO.1 LH
BLACK,TRIM0#,1#,2#,3#,4#; BLACK,TRIM0#,1#,2#,4#; BLACK,TRIM2#,3#
58815ACARPET, CONSOLE BOX
58833BGARNISH, CONSOLE UPPER PANEL, NO.1
DK SEPIA/ SHELL,TRIM0#
DK SEPIA/ TOUPE,TRIM46,47
WHITE ASH/ LT GRAY,TRIM1#
BLACK/ LT GRAY,TRIM2#
BLACK/ HAZEL,TRIM41,42,43
DK ROSE/ RED,TRIM3#
58834BGARNISH, CONSOLE UPPER PANEL, NO.2
WHITE ASH/ BLACK,TRIM1#
BLACK/LT GRAY,TRIM2#
BLACK/HAZEL,TRIM41,42,43
DK ROSE/RED,TRIM3#
DK SEPIA/ SHELL,TRIM0#
DK SEPIA/ TOUPE,TRIM46,47
58836BPAD, CONSOLE BOX SILENCER, NO.1
WHITE ASH,TRIM1#
BLACK,TRIM2#; BLACK,TRIM2#,41,42,43
DK.ROSE,TRIM3#
DK.SEPIA,TRIM0#,46,47
58837APAD, CONSOLE BOX SILENCER, NO.2
WHITE ASH,TRIM1#
BLACK,TRIM2#; BLACK,TRIM2#,41,42,43
DK.ROSE,TRIM3#
DK.SEPIA,TRIM0#,46,47
58860AREGISTER ASSY, CONSOLE BOX
58903APANEL SUB-ASSY, CONSOLE REAR END
F SPORT&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER &REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),BLACK,TRIM0#,1#,2#,3#,4#; LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT)&FRONT SEAT ADJUSTER-10WAY POWER & WITH(SEAT MEMORY =*DRS),BLACK,TRIM0#,1#,2#,3#,4#; LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT)&FRONT SEAT ADJUSTER-10WAY POWER & WITH(SEAT MEMORY =*DRS),BLACK,TRIM0#,1#,2#,4#; PREMIUM+ PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),BLACK,TRIM0#,1#,2#,3#,4#; PREMIUM+ PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),BLACK,TRIM0#,1#,2#,4#; SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT),BLACK,TRIM2#,3#
58910CBOX ASSY, CONSOLE, REAR
BLACK,TRIM0#,1#,2#,3#,4#; BLACK,TRIM0#,1#,2#,4#; BLACK,TRIM2#,3#
58911APANEL, BOX SIDE, NO.1
BLACK,TRIM0#,1#,2#,3#,4#; BLACK,TRIM0#,1#,2#,4#; BLACK,TRIM2#,3#
58912CPANEL, BOX SIDE, NO.2
BLACK,TRIM0#,1#,2#,3#,4#; BLACK,TRIM0#,1#,2#,4#; BLACK,TRIM2#,3#
58923APANEL, CONSOLE REAR END
BLACK,TRIM0#,1#,2#,3#,4#; BLACK,TRIM0#,1#,2#,4#; BLACK,TRIM2#,3#
58933GARNISH, CONSOLE REAR END PANEL
F SPORT&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER &REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS); LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT)&FRONT SEAT ADJUSTER-10WAY POWER & WITH(SEAT MEMORY =*DRS); PREMIUM+ PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS); SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT)
58991GCLIP
BLACK,TRIM0#,1#,2#,3#,4#; BLACK,TRIM0#,1#,2#,4#; BLACK,TRIM2#,3#
58993ABRACKET, CONSOLE BOX MOUNTING, LOWER
58994ABRACKET, CONSOLE BOX MOUNTING, NO.4
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
58997BRACKET, CONSOLE BOX MOUNTING, NO.3
8121INTERIOR LAMP
8401SWITCH & RELAY & COMPUTER
8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
9008011699
main90080-11699
9008017273
main90080-17273
9010508478
main90105-08478
9046705171
main90467-05171
9046705172
main90467-05172
9155180828
main91551-80828
9356014012
main93560-14012
9356054010
main93560-54010
31 parts on this diagram · 3 diagrams in section
