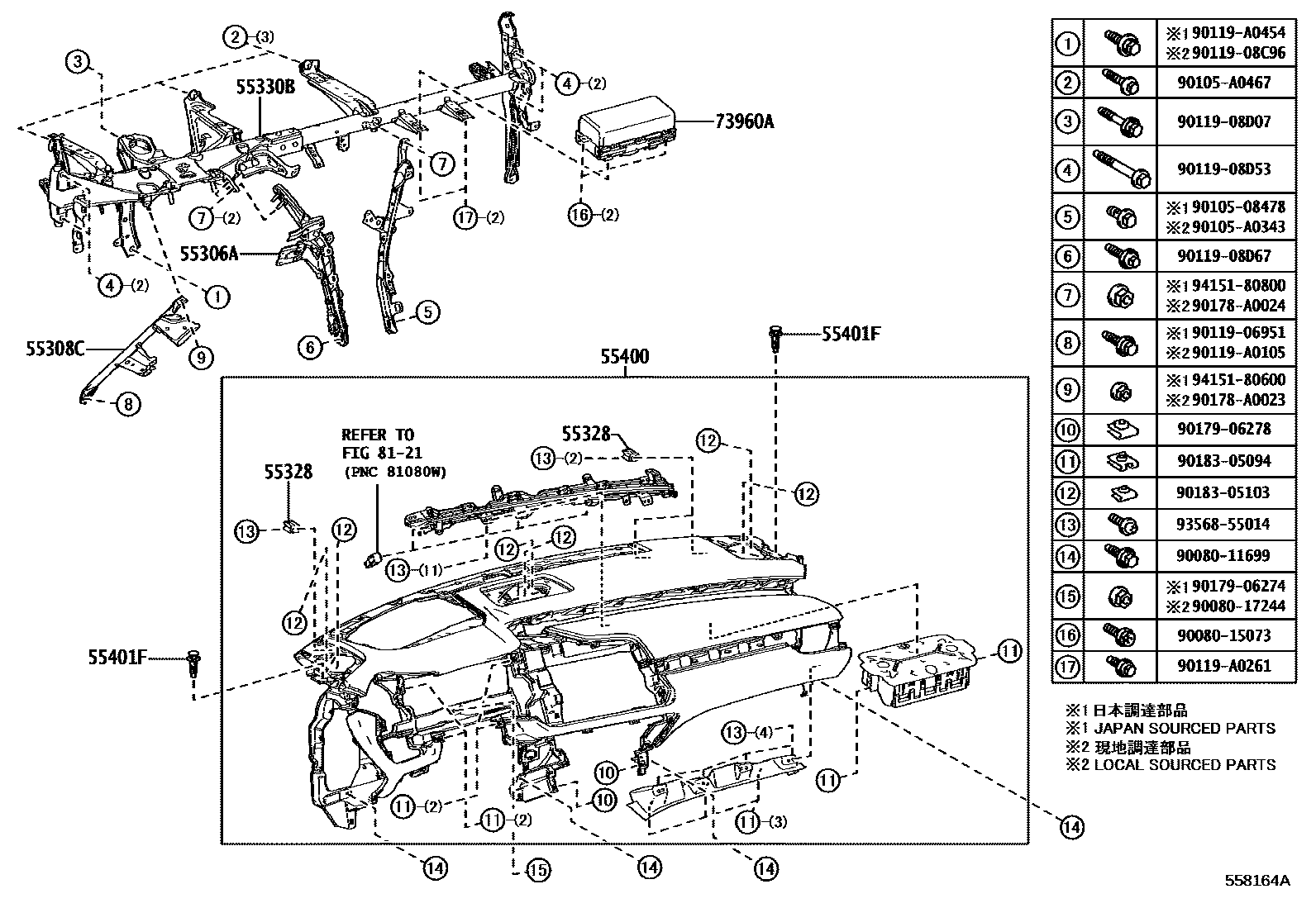

INSTRUMENT PANEL & GLOVE COMPARTMENT

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-0E160i202210

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-0E140i202210

55328PIN, INSTRUMENT PANEL, NO.1

main55328-12430×3i202210

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-0E280i202210

55400PAD ASSY, INSTRUMENT PANEL SAFETY

main55400-0E020-C0i202210-202510

SOFT BLACK,TRIM0#,1#,2#,4#

main55400-0E030-C0i202210-202411

SOFT BLACK,TRIM2#,3#

main55400-0E031-C0i202411

ILLUMINATED ENTRY SYSTEM-MULTI-COLOR,SOFT BLACK,TRIM0#,1#,2#,3#,4#; ILLUMINATED ENTRY SYSTEM-MULTI-COLOR,SOFT BLACK,TRIM0#,1#,2#,4#; SOFT BLACK,TRIM2#,3#

55401FCLIP(FOR SAFETY PAD)

main52161-16010×2i202210

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-0E170i202210

8121INTERIOR LAMP

→ Go to FIG 81-21

9008011699

main90080-11699

9008015073

main90080-15073

9008017244

main90080-17244

9010508478

main90105-08478

90105A0343

main90105-A0343

90105A0467

main90105-A0467

9011906951

main90119-06951

9011908C96

main90119-08C96

9011908D07

main90119-08D07

9011908D53

main90119-08D53

9011908D67

main90119-08D67

90119A0105

main90119-A0105

90119A0261

main90119-A0261

90119A0454

main90119-A0454

90178A0023

main90178-A0023

90178A0024

main90178-A0024

9017906274

main90179-06274

9017906278

main90179-06278

9018305094

main90183-05094

9018305103

main90183-05103

9356855014

main93568-55014

9415180600

main94151-80600

9415180800

main94151-80800

31 parts on this diagram · 5 diagrams in section
