Toyota LEXUS RX SERIES(TMMC523 — FLOOR SIDE MEMBER

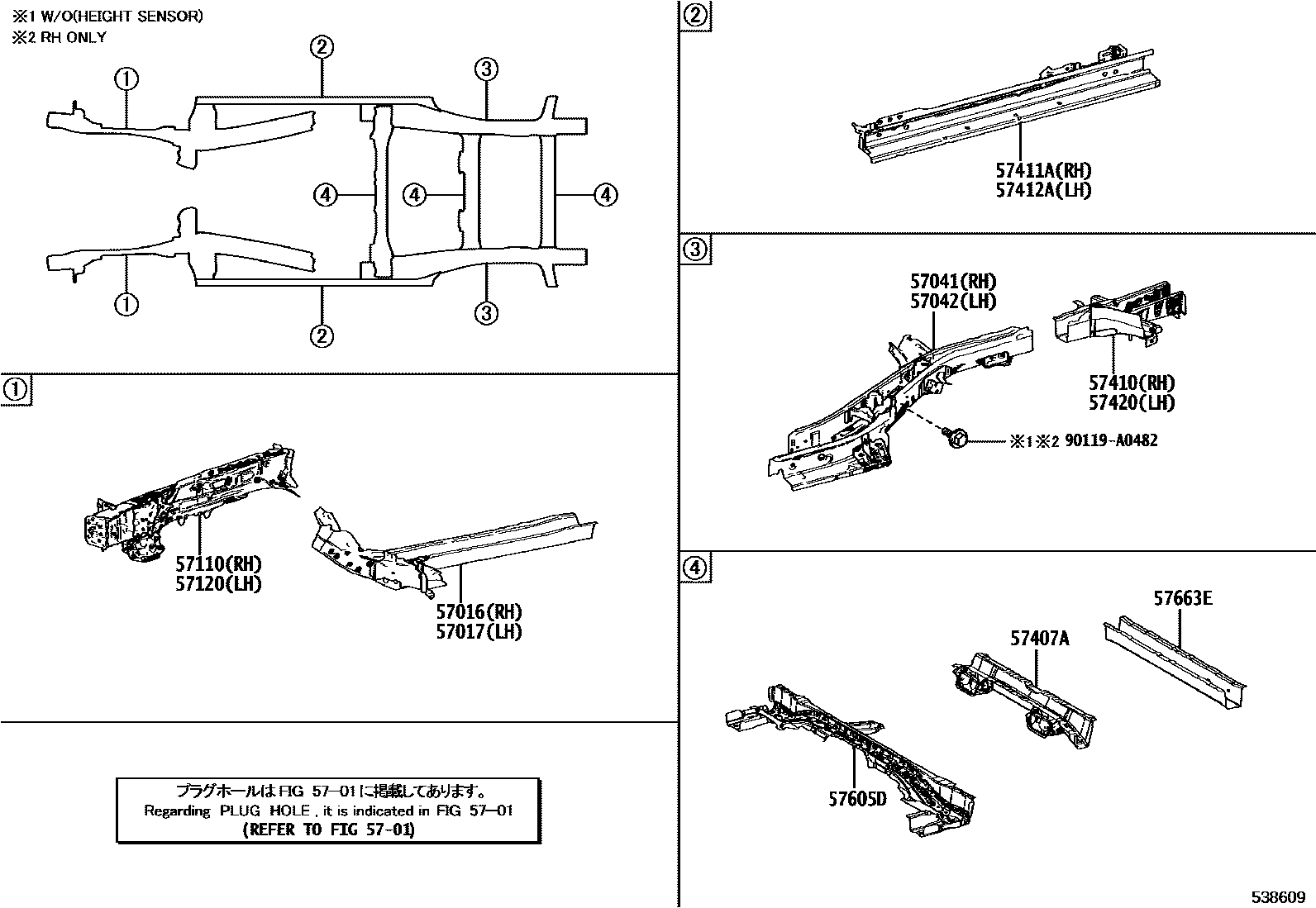

Parts diagram

5701HOLE PLUG

→ Go to FIG 57-01

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

57041MEMBER SUB-ASSY, CENTER FLOOR SIDE, RH

57042MEMBER SUB-ASSY, CENTER FLOOR SIDE, LH

57110MEMBER ASSY, FRONT SIDE, RH

57120MEMBER ASSY, FRONT SIDE, LH

57407AMEMBER SUB-ASSY, CENTER FLOOR CROSS

57410MEMBER ASSY, FLOOR SIDE, RH

57411AMEMBER, FLOOR SIDE, INNER RH

57412AMEMBER, FLOOR SIDE, INNER LH

57420MEMBER ASSY, FLOOR SIDE, LH

57605DMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

57663EMEMBER, REAR FLOOR CROSS, CENTER

90119A0482

15 parts on this diagram · 2 diagrams in section

FLOOR SIDE MEMBER for Toyota LEXUS RX SERIES(TMMC523

This section contains 15 genuine Toyota parts for the FLOOR SIDE MEMBER system of the Toyota LEXUS RX SERIES(TMMC523. Key components include: HOLE PLUG, REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH, REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH, MEMBER SUB-ASSY, CENTER FLOOR SIDE, RH, MEMBER SUB-ASSY, CENTER FLOOR SIDE, LH.
