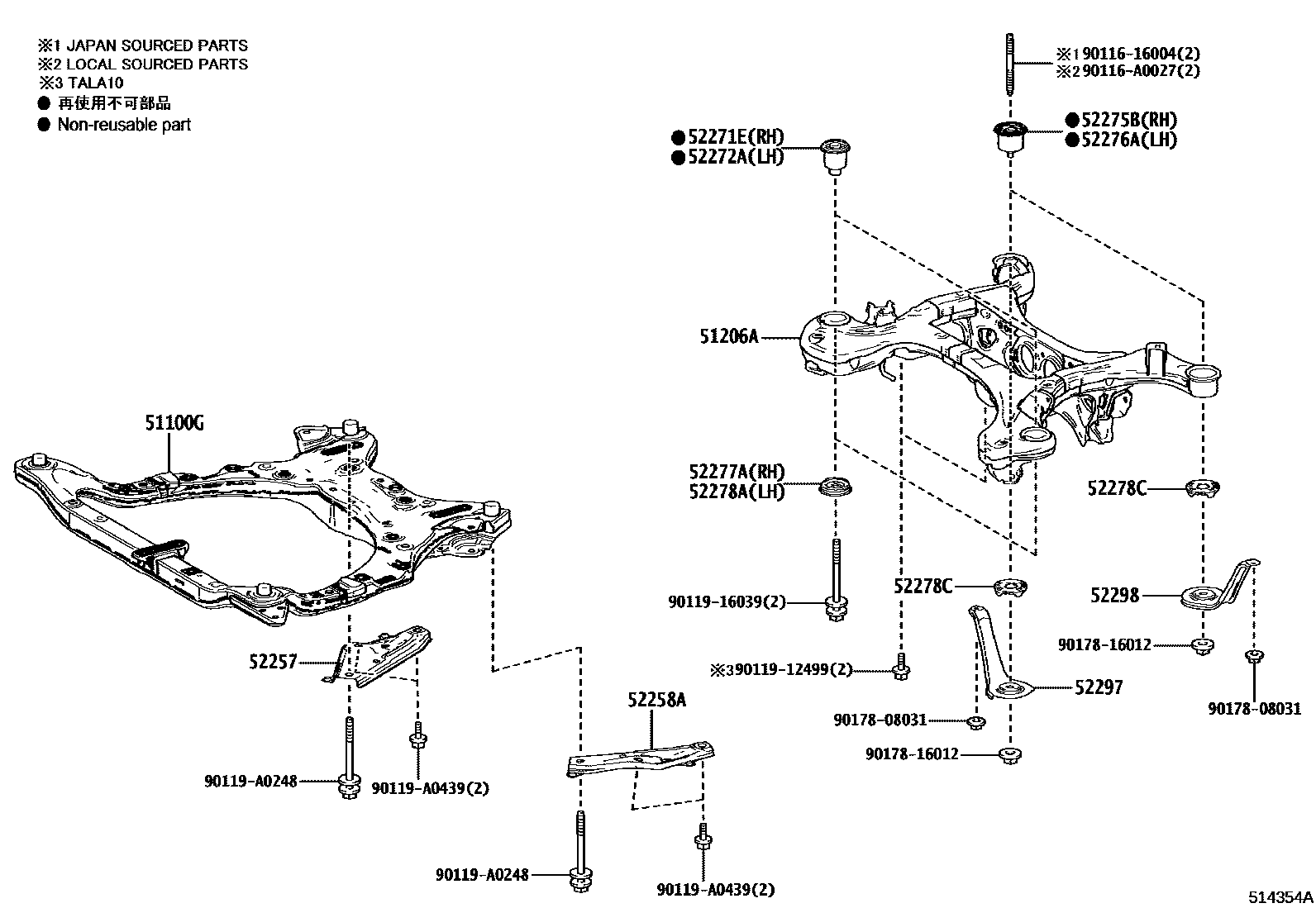

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION CROSSMEMBER 0002 1SUSPENSION CROSSMEMBER 0003 1UNDER COVER

51100GFRAME ASSY, FRONT

main51100-0E120iAALH15,TALA1#,TALH17202210

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-0E130iTALA1#202210

main51206-0E150iAALH15202210

main51206-0E160iTALH17202210

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-0R040iAALH15,TALA1#,TALH17202210

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-0R040iAALH15,TALA1#,TALH17202210

52271ECUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH

main52271-0E110iTALH17202210

main52271-0E120iAALH15,TALA1#202210

52272ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LH

main52271-0E110iTALH17202210

main52271-0E120iAALH15,TALA1#202210

52275BCUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR RH

main52275-0E110iAALH15,TALA1#,TALH17202210

52276ACUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR LH

main52276-0E060iAALH15,TALA1#,TALH17202210

52277ARETAINER, REAR SUSPENSION MEMBER LOWER STOPPER, RH

main52277-0E110iTALH17202210

main52277-0E120iTALA10202210-202310

52278ARETAINER, REAR SUSPENSION MENBER LOWER STOPPER, LH

main52277-0E110iTALH17202210

main52277-0E120iTALA10202210-202310

52278CSTOPPER, REAR SUSPENSION MEMBER, REAR LOWER

main52278-0E020×2iAALH15,TALA1#,TALH17202210

52297BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH

main52297-0E020iAALH15,TALA1#,TALH17202210

52298BRACE, REAR SUSPENSION MEMBER, REAR LOWER LH

main52297-0E020iAALH15,TALA1#,TALH17202210

9011616004

main90116-16004

90116A0027

main90116-A0027

9011912499

main90119-12499

9011916039

main90119-16039

90119A0248

main90119-A0248

90119A0439

main90119-A0439

9017808031

main90178-08031

9017816012

main90178-16012

21 parts on this diagram · 3 diagrams in section
