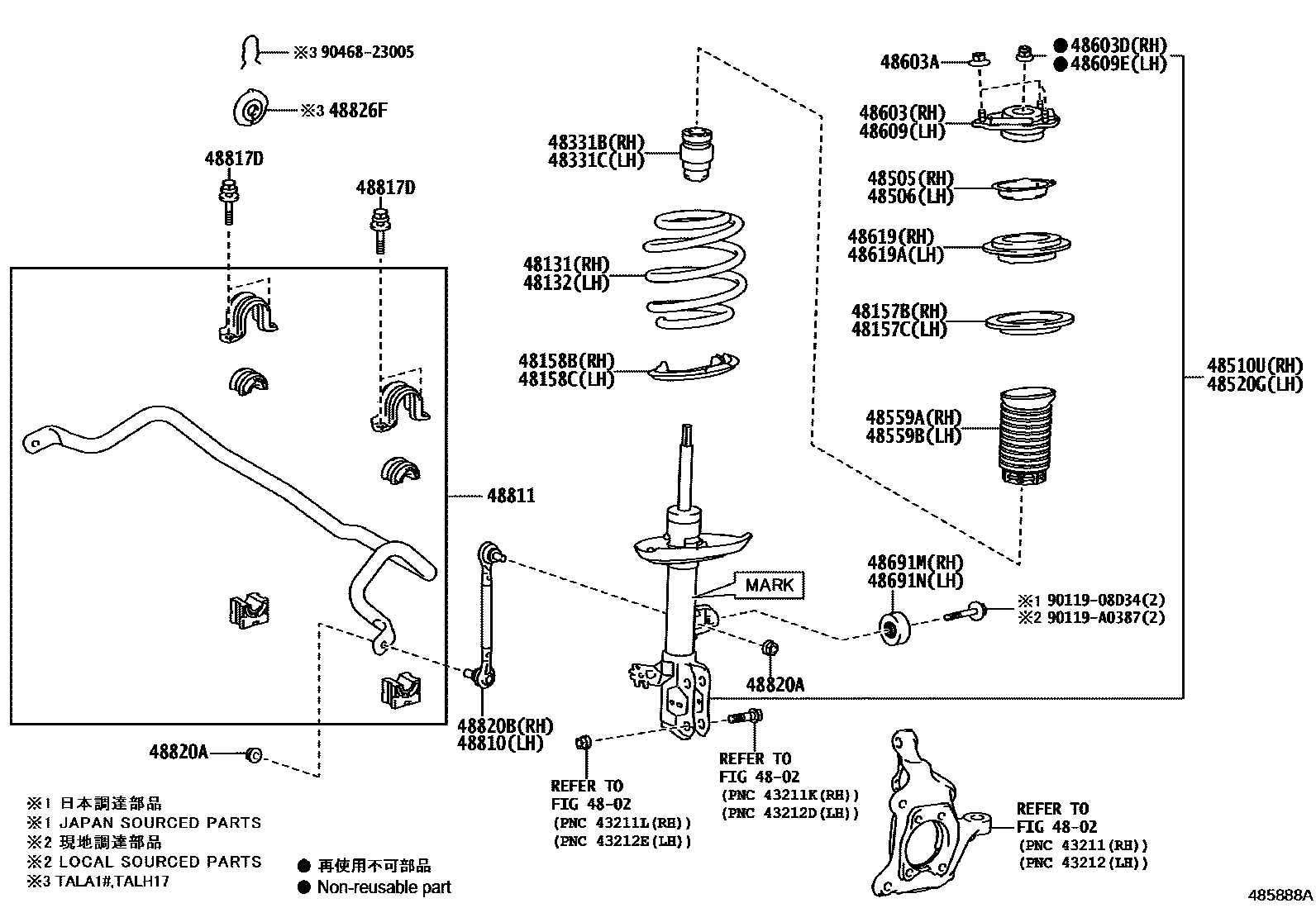

FRONT SPRING & SHOCK ABSORBER
4802FRONT AXLE ARM & STEERING KNUCKLE
48131SPRING, FRONT COIL, RH
48132SPRING, FRONT COIL, LH
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
48331BBUMPER, FRONT SPRING, RH
48331CBUMPER, FRONT SPRING, LH
48505SEAT, FRONT SPRING, RH
48506SEAT, FRONT SPRING, LH
48510UABSORBER SET, SHOCK, FRONT RH
MARK 48510-0E510
MARK 48510-48720; MARK 48510-48720,F SPORT
MARK 48510-0E590
48520GABSORBER SET, SHOCK, FRONT LH
MARK 48520-0E510
MARK 48520-48710; MARK 48520-48710,F SPORT
MARK 48520-0E570
48559ACOVER, FRONT SHOCK ABSORBER DUST, RH NO.1
48559BCOVER, FRONT SHOCK ABSORBER DUST, LH NO.1
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
(J)
(L)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
(J)
(L)
48619BEARING, STRUT MOUNTING, RH
48619ABEARING, STRUT MOUNTING, LH
48691MDAMPER, FRONT SUSPENSION, RH
48691NDAMPER, FRONT SUSPENSION, LH
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
48817DBOLT(FOR FRONT STABILIZER)
(J)
(L)
48820ANUT(FOR FRONT STABILIZER LINK)
(L)
(J)
48820BLINK ASSY, FRONT STABILIZER, RH
48826FPROTECTOR, STABILIZER
9011908D34
main90119-08D34
90119A0387
main90119-A0387
9046823005
main90468-23005
33 parts on this diagram · 1 diagram in section
