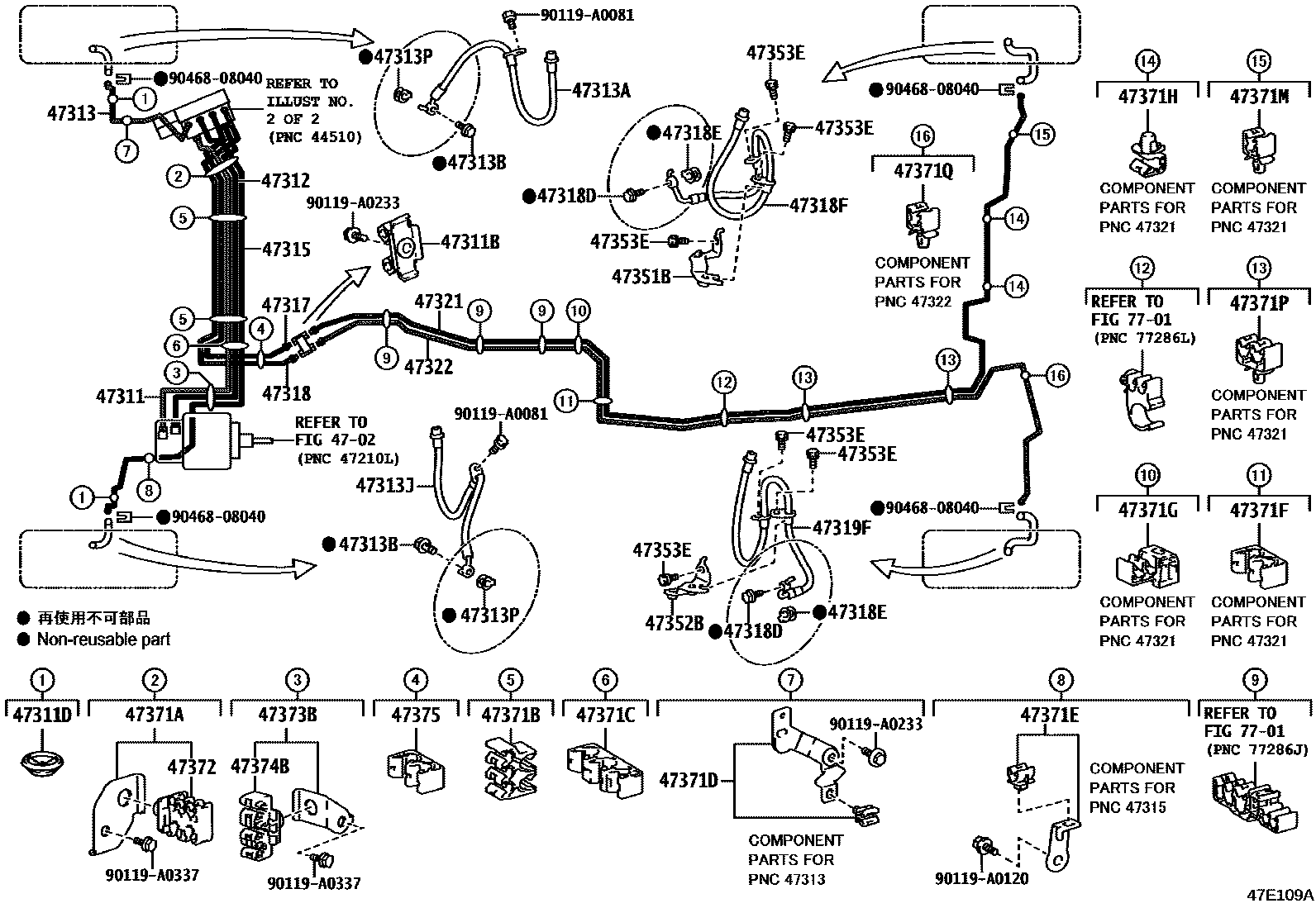

BRAKE TUBE & CLAMP

0001 1BRAKE TUBE 0002 1BRAKE TUBE 0003 1BRAKE TUBE 0004 1BRAKE ACTUATOR

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47311TUBE, FRONT BRAKE, NO.1

main47311-0E090iTALA1#202210

main47311-0E100iAALH15,TALH17202210

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10314iAALH15,TALH17202210

main90412-A0011iTALA1#202210

47311DGROMMET(FOR FRONT BRAKE TUBE)

main90480-25037×2iAALH15,TALA1#,TALH17202210

47312TUBE, FRONT BRAKE, NO.2

main47312-0E060iTALA1#202210

main47312-0E070iAALH15,TALH17202210

47313TUBE, FRONT BRAKE, NO.3

main47313-0E090iTALA1#202210

main47313-0E100iTALH17202210

main47313-0E110iAALH15202210

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-A2145iAALH15,TALA1#202210

main90947-A2149iTALA15; TALH17202210

F SPORT

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iAALH15,TALA1#,TALH17202210

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-A2146iAALH15,TALA1#202210

main90947-A2150iTALA15; TALH17202210

F SPORT

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50021×2iAALH15,TALA1#,TALH17202210

47315TUBE, FRONT BRAKE, NO.5

main47315-0E200iTALA1#202210

main47315-0E210iAALH15,TALH17202210

47317TUBE, FRONT BRAKE, NO.7

main47317-0E210iTALA1#202210

main47317-0E220iAALH15,TALH17202210

47318TUBE, FRONT BRAKE, NO.8

main47318-0E210iTALA1#202210

main47318-0E220iAALH15,TALH17202210

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-A0001×2iAALH15,TALA1#,TALH17202210

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50021×2iAALH15,TALA1#,TALH17202210

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-A2143iAALH15,TALA1#,TALH17202210

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-A2144iAALH15,TALA1#,TALH17202210

47321TUBE, REAR BRAKE, NO.1

main47321-0E160iAALH15,TALA1#,TALH17202210

47322TUBE, REAR BRAKE, NO.2

main47322-0E160iAALH15,TALA1#,TALH17202210

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47351-0E070iAALH15,TALA1#,TALH17202210

47352BBRACKET, FLEXIBLE HOSE, NO.2

main47352-0E070iAALH15,TALA1#,TALH17202210

47353EBOLT(FOR FLEXIBLE HOSE BRACKET)

main90119-A0081×6iAALH15,TALA1#,TALH17202210

47371ACLAMP, BRAKE TUBE, NO.1

main47371-48190iTALA1#202210

main47371-48230iAALH15,TALH17202210

47371BCLAMP, BRAKE TUBE, NO.6

main47371-48250iTALA1#202210

main90949-01E40×2iAALH15,TALH17202210

47371CCLAMP, BRAKE TUBE, NO.7

main90949-01D56iTALA1#202210

main90949-01E43iAALH15,TALH17202210

47371DCLAMP, BRAKE TUBE, NO.8

main47371-0E040iAALH15202210

main47371-48250iTALH17202210

main90949-01D56iTALA1#202210

47371ECLAMP, BRAKE TUBE, NO.9

main47371-0R020iAALH15,TALH17202210

47371FCLAMP, BRAKE TUBE, NO.10

main90464-00903iAALH15,TALA1#,TALH17202210

47371GCLAMP, BRAKE TUBE, NO.11

main90949-01D11iAALH15,TALA1#,TALH17202210

47371HCLAMP, BRAKE TUBE, NO.12

main90949-01D17×2iAALH15,TALA1#,TALH17202210

47371MCLAMP, BRAKE TUBE, NO.13

main90949-01E01iAALH15,TALA1#,TALH17202210

47371PCLAMP, BRAKE TUBE, NO.14

main90949-01E02×2iAALH15,TALA1#,TALH17202210

47371QCLAMP, BRAKE TUBE, NO.15

main90949-01E10iAALH15,TALA1#,TALH17202210

47372CLAMP, BRAKE TUBE, NO.2

main47371-48230iTALA1#202210

main90949-01E79iAALH15,TALH17202210

47373BCLAMP, BRAKE TUBE, NO.3

main47371-48240iAALH15,TALH17202210

main90949-01E79iTALA1#202210

47374BCLAMP, BRAKE TUBE, NO.4

main90464-00903iTALA1#202210

main90949-01E80iAALH15,TALH17202210

47375CLAMP, BRAKE TUBE, NO.5

main90464-00903iAALH15,TALH17202210

main90949-01E40×2iTALA1#202210
