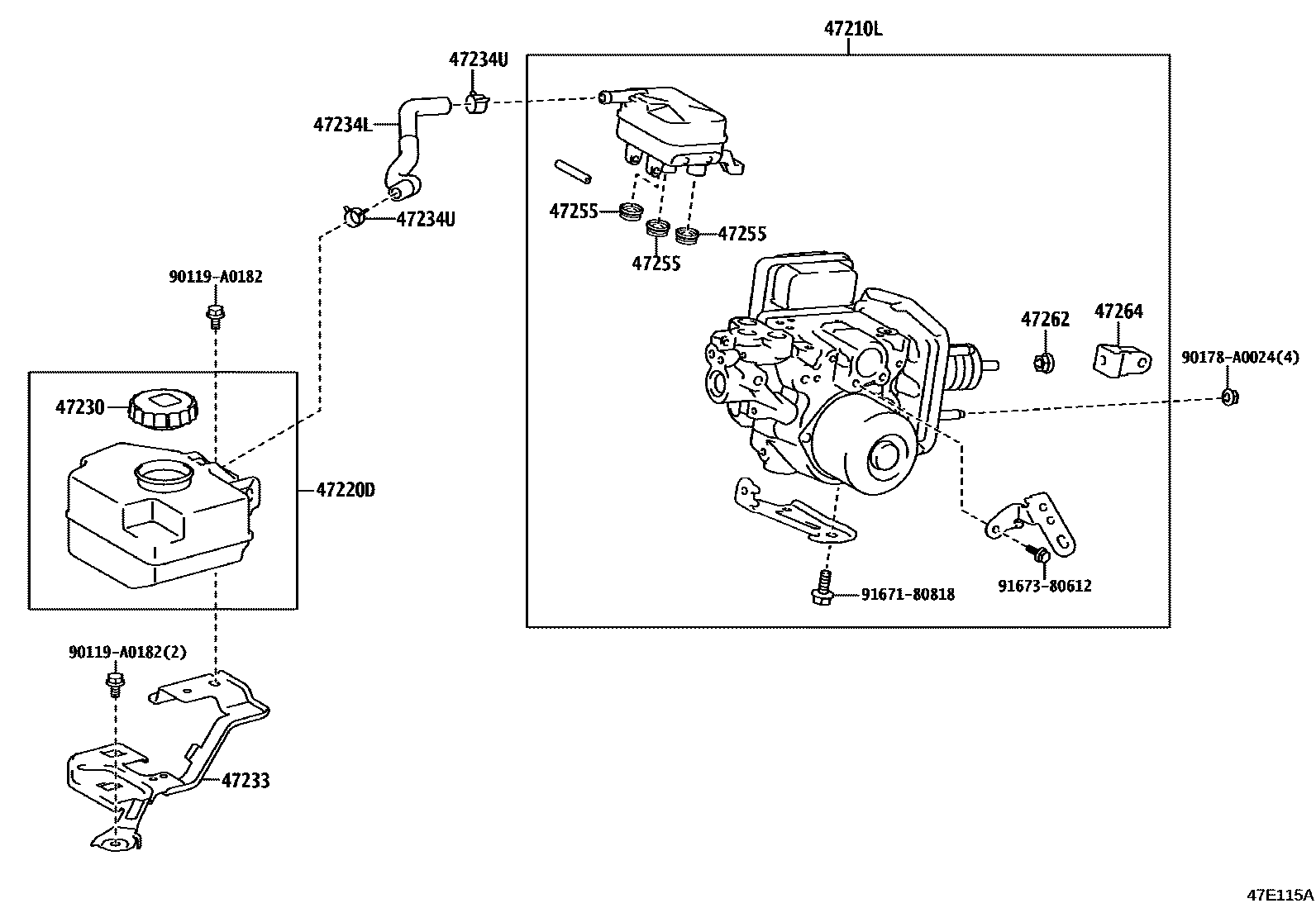

BRAKE MASTER CYLINDER

0001 1 0002 1

47210LBRAKE BOOSTER ASSY, W/MASTER CYLINDER

main47050-48400iAALH15202210-202309

main47050-48410iTALH17202210-202309

main47050-48510iAALH15202309-202410

main47050-48520iTALH17202309-202410

main47050-48690iAALH15202410

main47050-48700iTALH17202410

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-0E140iTALA1#202210

main47220-48360iAALH15,TALH17202210

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-02310iTALA1#202210

main47230-47090iAALH15,TALH17202210

47233BRACKET, RESERVOIR

main47233-0E230iTALA1#202210

main47233-0E240iAALH15,TALH17202210

47234LHOSE, RESERVOIR, NO.1

main47234-0E140iTALA1#202210

main47234-0E210iAALH15,TALH17202210

47234UCLIP(FOR RESERVOIR HOSE NO.1)

main90466-A0017×2iAALH15,TALA1#,TALH17202210

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010×3iAALH15,TALH17202210

47262NUT, MASTER CYLINDER PUSH ROD

main90179-10065iAALH15,TALH17202210

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-48030iAALH15,TALH17202210

90119A0182

main90119-A0182

90178A0024

main90178-A0024

9167180818

main91671-80818

9167380612

main91673-80612

13 parts on this diagram · 2 diagrams in section
